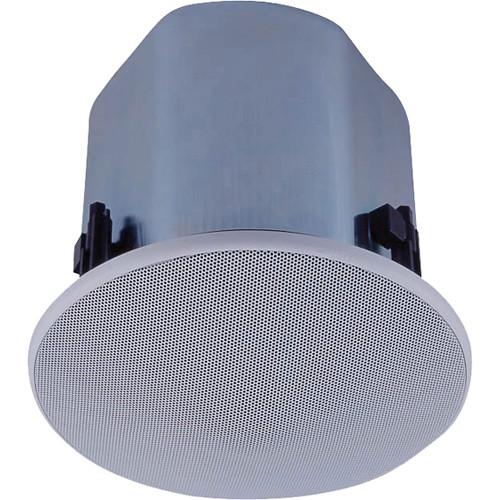

Product description The TOA Electronic's F-2322CU2 5" Coaxial Ceiling Speaker with tile bridge has a frequency response of 70 Hz to 20 kHz and can handle 30W. It is a powerful ported bass-reflex designed speaker with wide-dispersion for music and paging applications. The acoustic construction of this speaker allows for a wide area of coverage with uniform sound output levels.
The speaker has a coaxial 5" cone driver with a dome tweeter, a practical low-profile design, and a paintable grille that will fit in with most any decor. It features a built-in multi-tap transformer with an additional 8/16 ohms direct mode, front baffle power tap selection and a double locking, paintable grille. The speaker comes packaged with a tile bridge and is designed to be fast and easy to install.The speaker is UL1480/2043-Listed for Fire Protective, General Purpose Signaling and Air-Handling Spaces, and features Toa's limited 5-year warranty. - Wide-Dispersion High Sound Quality
- Suitable for places where improved sound quality is needed over a wide area, this speaker can be used at airports, offices, restaurants, museums, schools, theaters, retail stores, and more
- UL2043
- This speaker is UL compliant and is listed for Fire Protective, General Purpose Signaling and Air-Handling Spaces
- Variable Impedance
- This speaker has both low- and high-impedance operating capabilities making it suitable for many different applications. Even after installation, the front-panel input selector switch makes it easy to change impedance settings
- Multi-Tap Transformers
- Also includes built-in multi-tap transformers with front baffle power tap selection
In the Box Toa Electronics 5" Coaxial Ceiling Speaker with Tile Bridges Front Grille Safety Wire Ceiling Reinforcement Ring Paper Pattern 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics 5" Coaxial Ceiling Speaker with Tile Bridges in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics F-2352CU2 Specs | Active or Passive | Passive | | Speaker Type | 5" Coaxial | | Frequency Response | 70Hz to 20 kHz | | Power Capacity | Continuous pink noise: 60 W (8 ohms), 30 W (16 ohms)
Continuous program: 120 W (8 ohms), 60 W (16 ohms) | | 70V Tap | 170 ohms (30 W), 330 ohms(15 W), 1 kOhms (5 W), 3.3 kOhms (1.5 W), 10 kOhms (0.5 W) | | 25V Tap | 170 ohms (3.7 W), 330 ohms (1.9 W), 1 kOhms (0.6 W), 3.3 kOhms (0.2 W), 10 kOhms (0.06 W) | | Maximum Sound Pressure Level (SPL) | 90 db (1W, 1 m) | | Nominal Sensitivity | 90 dB | | Enclosure Material | Steel Plating | | Input Connections | Input Terminal: x2
Bridge Terminal: x2 | | Environmental | Not Specified by Manufacturer | | Ceiling Thickness | Maximum : 1.46" (37 mm) | | Cable Diameter | Usable: Solid copper wire: 1.0 - 1.6 mm (equivalent to AWG No. 18 - 14)
Stranded copper wire: 0.75 - 2.5 mm (equivalent to AWG No. 18 - 14) | | Dimensions | 9.1 x 7.9" (230 x 200mm) (Speaker only x 2) | | Weight | Not specified by manufacturer | | | | Package Weight | 14.1 lb | | Box Dimensions (LxWxH) | 14.961 x 12.598 x 12.598" |
