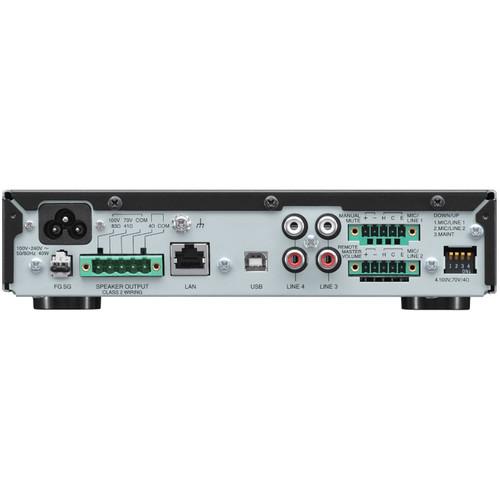

User Manual for Toa Electronics A-5006 - 5000 Series Digital Mixer Amplifier Click to enlarge the picture
Contents of the user manual for the Toa Electronics A-5006 - 5000 Series
- Product category: Mixer/Amplifiers Toa Electronics
- Brand: Toa Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Toa Electronics Mixer/Amplifiers
|
User manual for the Toa Electronics A-5006 - 5000 Series contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Toa Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Toa Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Toa Electronics product will considerably shorten its lifespan!
|
Product description The A-5006 - 5000 Series Digital Mixer Amplifier from TOA Electronics is a flexible mixer/amplifier system with precision digital signal processing (DSP) designed for small to medium restaurants and retail establishments. The A-5006 offers the ability to control your music the way you want and features an intuitive GUI software for sound optimization including a 5-band parametric EQ for each input and output, a remote master volume control, mute functions (Mic 1 Priority: Manual Mute), and a compressor for input 1 and 2. The 60W amplifier is designed to power a 4-Ohm speaker but is also compatible with 70V and 100V systems. The A-5006 ships with a software CD, a large removable terminal plug, two small-type removable terminal plugs, six bracket mounting screws & washers, and a power cord. -
- 1 RU, half size compact and simple hardware for easy setting
- Hi-/Low-Z speaker connection
- 60W amplifier
- Two mic/line inputs with mute
- Ideal for restaurants, coffee shops, retail shops, etc.
- Intuitive GUI software for sound optimization
- 5-band parametric equalizer for each input and output
- Remote master volume control
- Mute (Mic 1 priority: manual mute)
- Compressor for each input 1 and 2
In the Box Toa Electronics A-5006 - 5000 Series Digital Mixer Amplifier (60W) Large-Type Removable Terminal Plug (5 Pins) 2 x Small-Type Removable Terminal Plug (5 Pins) 6 x Bracket Mounting Screws 6 x Plain Washers Power Cord CD (Setting Software) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics A-5006 - 5000 Series Digital Mixer Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics A-5006 3CUD00 Specs Computer Requirements | CPU: Intel Core i3, 2 GHz or faster Memory: 2 GB or more recommended Display: 1024 x 768 resolution or higher Free Hard Disk Space: 16 MB or more (600 MB or more is required for the 32-bit edition or 1.5 GB or more for the 64-bit edition when ".NET Framework" is not yet installed | Operating system | Windows 7 Professional (32/64-bit edition) Service Pack 1 Windows 8.1 Pro (32/64-bit edition) (These are verified Operating Systems) | Input | Input 1 & 2: Mic -60 dB, Line -20 dB, Mic/Line selectable 2.2k Ohms, electronically balanced, removable terminal block (5 pins) Input 3 & 4: Line -20 dB, 10 kOhms, unbalanced, RCA pin jack | Output | Speaker: 4 Ohms, 70 V (83 Ohms), 100 V (170 Ohms), removable terminal block (5 pins) | Frequency Response | 50 Hz - 20 kHz, 1/8 output | Distortion | 1% or less (1 kHz, rated output) | Signal-to-Noise Ratio (SNR) | Mic 1, 2: 60 dB or more Line 1 - 4: 80 dB or more (A-weighted) | Function | Parametric Equalizer: 5 points settable on each input and output, 20 Hz - 20 kHz ±15 dB, Q: 0.267 - 69.249 Compressor: On/Off settable on Inputs 1 and 2 (Off by default) Threshold, Ratio, Attack time, Release time, and Gain are settable independently on each input | Control | Mute control, Remote master volume control, Power ON/OFF switch, Ground lift | Indicators | Power, Signal, Peak, Protect | Power Source | 100 - 240 VAC, 50/60 Hz | Rated Output | 60 W | Power Consumption | 106 W (rated output), 20 W (based on cULus standards) Max. 2 A | Dimensions (W x H x D) | 8.3 x 2.1 x 14.8" / 210.1 x 52.6 x 374.9 mm | Weight | 7.94 lbs. (3.6 kg) |
