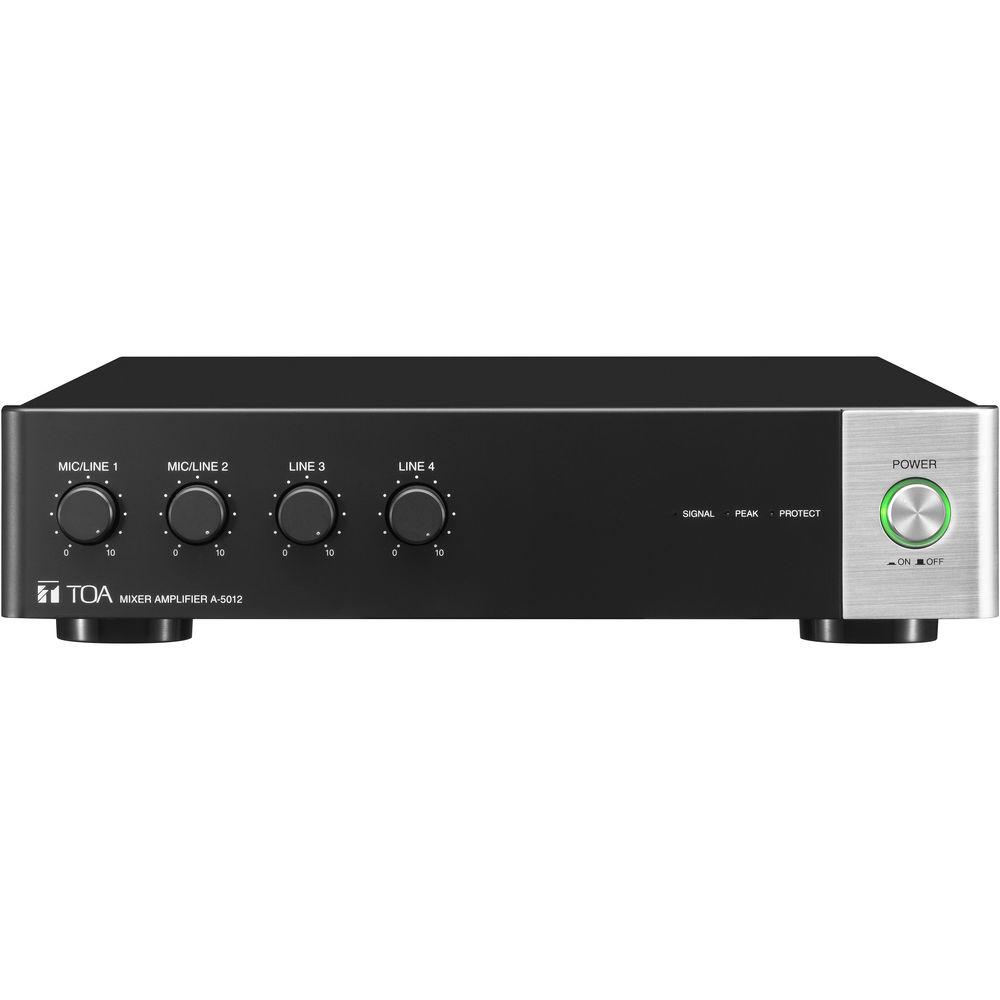

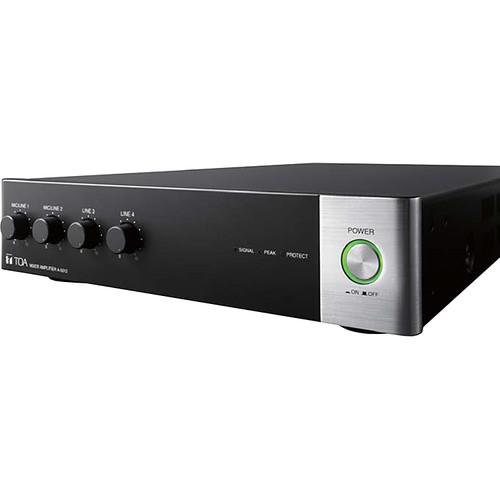

Product description The A-5012 - 5000 Series Digital Mixer Amplifier from TOA Electronics is a flexible mixer/amplifier system with precision digital signal processing (DSP) designed for small to medium restaurants and retail establishments. The A-5012 offers the ability to control your music the way you want and features an intuitive GUI software for sound optimization including a 5-band parametric EQ for each input and output, a remote master volume control, mute functions (Mic 1 Priority: Manual Mute), and a compressor for input 1 and 2.
The 120W amplifier is designed to power a 4-Ohm speaker but is also compatible with 70V and 100V systems. The A-5012 ships with a software CD, a large removable terminal plug, two small-type removable terminal plugs, six bracket mounting screws & washers, and a power cord. -
- 1 RU, half size compact and simple hardware for easy setting
- Hi-/Low-Z speaker connection
- 120W amplifier
- Two mic/line inputs with mute
- Ideal for restaurants, coffee shops, retail shops, etc.
- Intuitive GUI software for sound optimization
- 5-band parametric equalizer for each input and output
- Remote master volume control
- Mute (Mic 1 priority: manual mute)
- Compressor for each input 1 and 2
In the Box Toa Electronics A-5012 - 5000 Series Digital Mixer Amplifier (120W) Large-Type Removable Terminal Plug (5 Pins) 2 x Small-Type Removable Terminal Plug (5 Pins) 6 x Bracket Mounting Screws 6 x Plain Washers Power Cord CD (Setting Software) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics A-5012 - 5000 Series Digital Mixer Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics A-5012 3CUD00 Specs | Computer Requirements | CPU: Intel Core i3, 2 GHz or faster
Memory: 2 GB or more recommended
Display: 1024 x 768 resolution or higher
Free Hard Disk Space: 16 MB or more (600 MB or more is required for the 32-bit edition or 1.5 GB or more for the 64-bit edition when ".NET Framework" is not yet installed | | Operating system | Windows 7 Professional (32/64-bit edition) Service Pack 1
Windows 8.1 Pro (32/64-bit edition) (These are verified Operating Systems) | | Input | Input 1 & 2: Mic -60 dB, Line -20 dB, Mic/Line selectable
2.2k Ohms, electronically balanced, removable terminal block (5 pins)

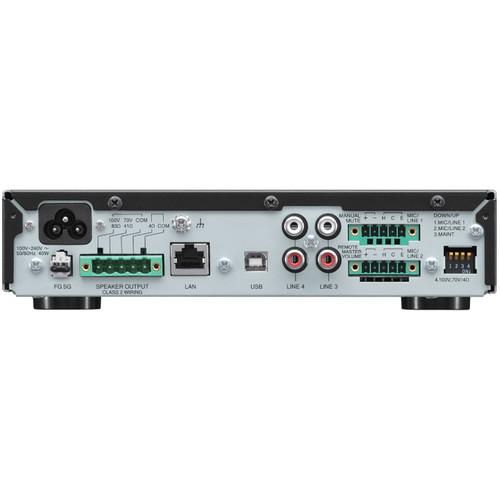

Input 3 & 4: Line -20 dB, 10 kOhms, unbalanced, RCA pin jack | | Output | Speaker: 4 Ohms, 70 V (42 Ohms) , 100 V (83 Ohms), removable terminal block (5 pins) | | Frequency Response | 50 Hz - 20 kHz, 1/8 output | | Distortion | 1% or less (1 kHz, rated output) | | Signal-to-Noise Ratio (SNR) | Mic 1, 2: 60 dB or more
Line 1 - 4: 80 dB or more (A-weighted) | | Function | Parametric Equalizer: 5 points settable on each input and output, 20 Hz - 20 kHz ±15 dB, Q: 0.267 - 69.249
Compressor: On/Off settable on Inputs 1 and 2 (Off by default)
Threshold, Ratio, Attack time, Release time, and Gain are settable independently on each input | | Control | Mute control, Remote master volume control, Power ON/OFF switch, Ground lift | | Indicators | Power, Signal, Peak, Protect | | Power Source | 100 - 240 VAC, 50/60 Hz | | Rated Output | 120 W | | Power Consumption | 207 W (rated output), 39 W (based on cULus standards) Max. 3 A | | Dimensions (W x H x D) | 8.3 x 2.1 x 14.8" / 210.1 x 52.6 x 374.9 mm | | Weight | 8.6 lbs. (3.9 kg) |
