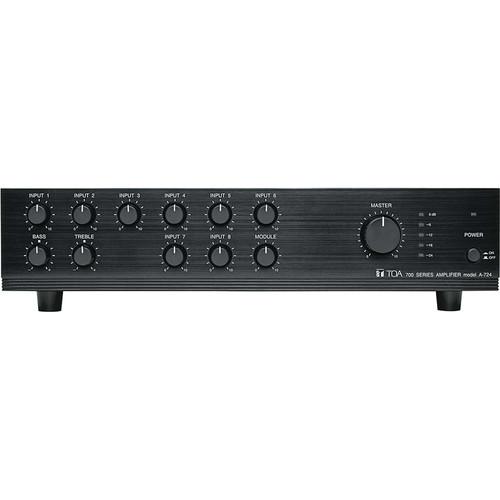

User Manual for Toa Electronics A-724 - 9-Channel, 240 Watt Mixer Amplifier Click to enlarge the picture
Contents of the user manual for the Toa Electronics A-724 - 9-Channel, 240
- Product category: Mixer/Amplifiers Toa Electronics
- Brand: Toa Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Toa Electronics Mixer/Amplifiers
|
User manual for the Toa Electronics A-724 - 9-Channel, 240 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Toa Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Toa Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Toa Electronics product will considerably shorten its lifespan!
|
Product description The A-724 from TOA Electronics is a nine-channel, 240 watt amplifier/mixer for paging and background music in schools, restaurants, board rooms, houses of worship, and other similar venues. It features six mic/line inputs with mic trim control and 23VDC phantom power, two auxiliary inputs, and one 900 series module slot for accommodating the input module of your choice. It has outputs for 70.7 volt, 25 volt, and 4 ohm systems. An auxiliary output allows recording or connection of an external booster amplifier.
For paging, an auto-mute function that provides voice-activated priority muting is included. Rear-panel switches let you select which inputs activate and respond to muting. Other features include external switch-closure mute activation, channel and master volume controls, treble and bass controls, processor insert jacks, and an output level meter. Protection circuitry for overheating and short-circuiting ensure extended operation. - High-quality, rack mountable construction
- Input module slot lets you customize the unit to meet your needs
- Voice-activated priority ducking for paging
- Master and channel volume controls
In the Box Toa Electronics A-724 - 9-Channel, 240 Watt Mixer/Amplifier 4 x YA-920 Volume Control Security Knobs 5 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics A-724 - 9-Channel, 240 Watt Mixer Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics A-724 Specs | Output Power | 240 watts | | Frequency Response | 50Hz - 20kHz | | Total Harmonic Distortion (THD) | 0.5% | | Input Sensitivity | Inputs 1-6 Mic: -70 to -50 dBV
Inputs 1-6 Line: -10 dBV
Inputs 7-8: -20 dBV
Module: Variable | | Input Impedance | Inputs 1-6 Mic: 600 ohms
Inputs 1-6 Line: 600 ohms
Inputs 7-8: 10 k ohms
Module: Variable | | Output Impedance | 70.7V Line: 21 ohms
25V Line: 2.6 ohms
Preamp Out: 600 ohms
Rec Out: 600 ohms | | Input Connectors | 1 x Transformer-Balanced 3-Pin Phoenix Terminal
5 x Electronically-Balanced 3-Pin Phoenix Terminals
2 x Unbalanced RCA Jacks (Stereo Sum)
1 x Module Slot
1 x AC Power In | | Output Connectors | 1 x 4-Pin Phoenix Connector with Terminals for 25V, 70.7V, 4 ohm, and COM
1 x RCA Preamp Out
1 x RCA Record Out | | Module Slot | Card Edge Connector for 900 Series Modules (Mute-Type Modules Not Required for This Unit) | | Phantom Power | 23 VDC, Switchable, Inputs 1-6 | | Dynamic Range | Inputs 1-6: Greater than 70dB
Inputs 7-8, Module: Greater than 80 dB | | Tone Control | +/-10dB Bass and Treble | | Control Input | 1 x Remote Volume Phoenix Connector
1 x Power Remote No-Voltage Make Contact Input
1 x Mute Control No-Voltage Make Contact Input | | Indicators | Power LED
5-Point Output Level LED Meter | | Power | 120VAC, 60Hz | | Power Consumption | 215W | | Operating Temperature | 14 Degrees F to 104 Degrees F (-10 Degrees C to +40 Degrees C) | | Dimensions (WxHxD) | 16.8 x 4.3 x 14.7" (420 x 108 x 367 mm) | | Weight | 29.8 lbs (13.5 kg) | | | | Package Weight | 37.3 lb | | Box Dimensions (LxWxH) | 23.0 x 19.5 x 7.7" |
