User Manual for Toa Electronics A-906MK2 60W 8-Channel Modular Mixer Amplifier

Click to enlarge the picture
Toa Electronics A-906MK2 60W 8-Channel Modular Mixer Amplifier Contents of the user manual for the Toa Electronics A-906MK2 60W 8-Channel Modular
  • Product category: Mixer/Amplifiers Toa Electronics
  • Brand: Toa Electronics
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Toa Electronics Mixer/Amplifiers

Toa Electronics A-906MK2 60W 8-Channel Modular Mixer Amplifier Toa Electronics A-906MK2 60W 8-Channel Modular Mixer Amplifier
User manual for the Toa Electronics A-906MK2 60W 8-Channel Modular contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Toa Electronics product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Toa Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Toa Electronics product will considerably shorten its lifespan!



Product description

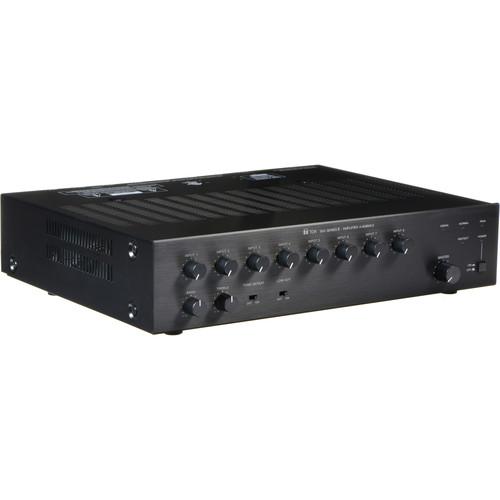

From the TOA 900 series of mixer/amplifiers, the A-906MK2 is a customizable unit ideal for background music, paging, on-hold messages, and other applications in hospitals, airports, schools and other similar venues. The A-906MK2 is designed for high performance with a low self-noise, a wide frequency response, and excellent output regulation. This 60W unit features 8 input channels that accept any combination of TOA's plug-in modules for ultimate customizability. The front panel features a master volume control and individual channel volume controls, as well as bass and treble controls.

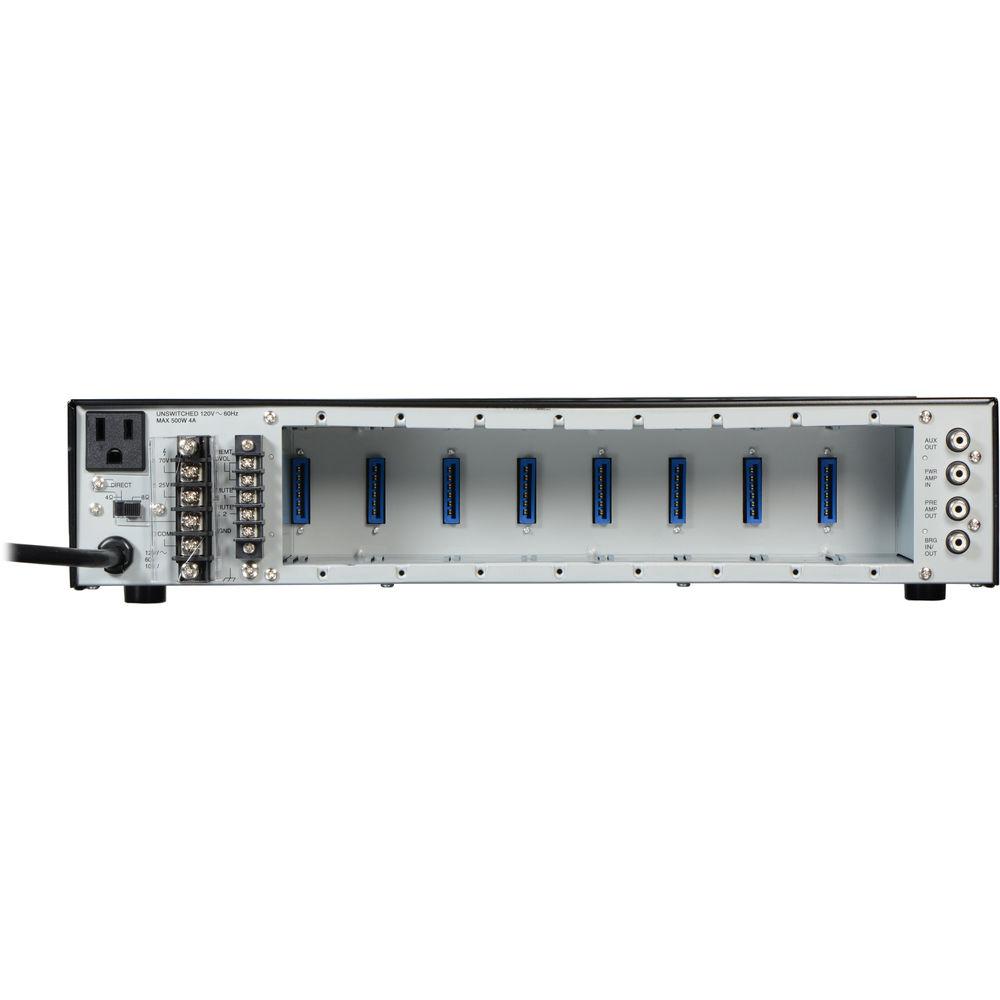

Input capacity may be increased by connecting another mixer or mixer/amplifier to the bridge in/out jack. The unit features transformer-isolated outputs, and a direct output mode if non-transformer operation is desired.
    Modular Output Design
  • Eight expansion output slots house modules that provide line or microphone level connections.
    25 and 70 Volt Operation
  • The mixer/amplifier is capable of 70V operation, suitable for long speaker runs throughout offices, airports, hospitals, restaurants, etc.
    Paging Priority Modes
  • A Dual Mute Bus permits multiple levels of paging priority, using optional mute-type modules.
    External Mute Terminals
  • Accommodate external mute switchers for remote mute operation.
    Remote Master Volume Terminals
  • Enable remote master volume control.
    Low Cut Filter
  • A master low-cut filter switch eliminates low frequency noise and rumble.
    Auxiliary Output
  • The auxiliary output accommodates an external recording device, mixer and more.
    Insert Jacks
  • Insert jacks accommodate outboard signal processing.
    Delayed Power Up
  • A power up delay feature protects the outputs and connected speakers from damage caused by surges during abrupt amplifier power up.
In the Box Toa Electronics A-906MK2 60W 8-Channel Modular Mixer/Amplifier
  • 4 Volume Control Security Knobs
  • 5-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Toa Electronics A-906MK2 60W 8-Channel Modular Mixer Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Toa Electronics A-906MK2 Specs

    Output Power 60W
    Damping Factor Not Specified by Manufacturer
    Input Sensitivity Module Inputs: Varies According to Installed Modules
    Bridging Input: 100mV
    Input Impedance Module Inputs: Varies According to Installed Modules
    Bridging Input: 3.3 k ohms
    Gain Not Specified by Manufacturer
    Frequency Response 20Hz - 20kHz
    Signal-to-Noise Ratio Not Specified by Manufacturer
    Total Harmonic Distortion (THD) 0.02%
    Input Connections 8 x Input Module Slots
    1 x RCA Bridging In/Out
    Output Connectors 8 ohm, 25V, and 70V Balanced Screw Connectors
    4 ohm Unbalanced Screw Connector
    RCA Aux Output

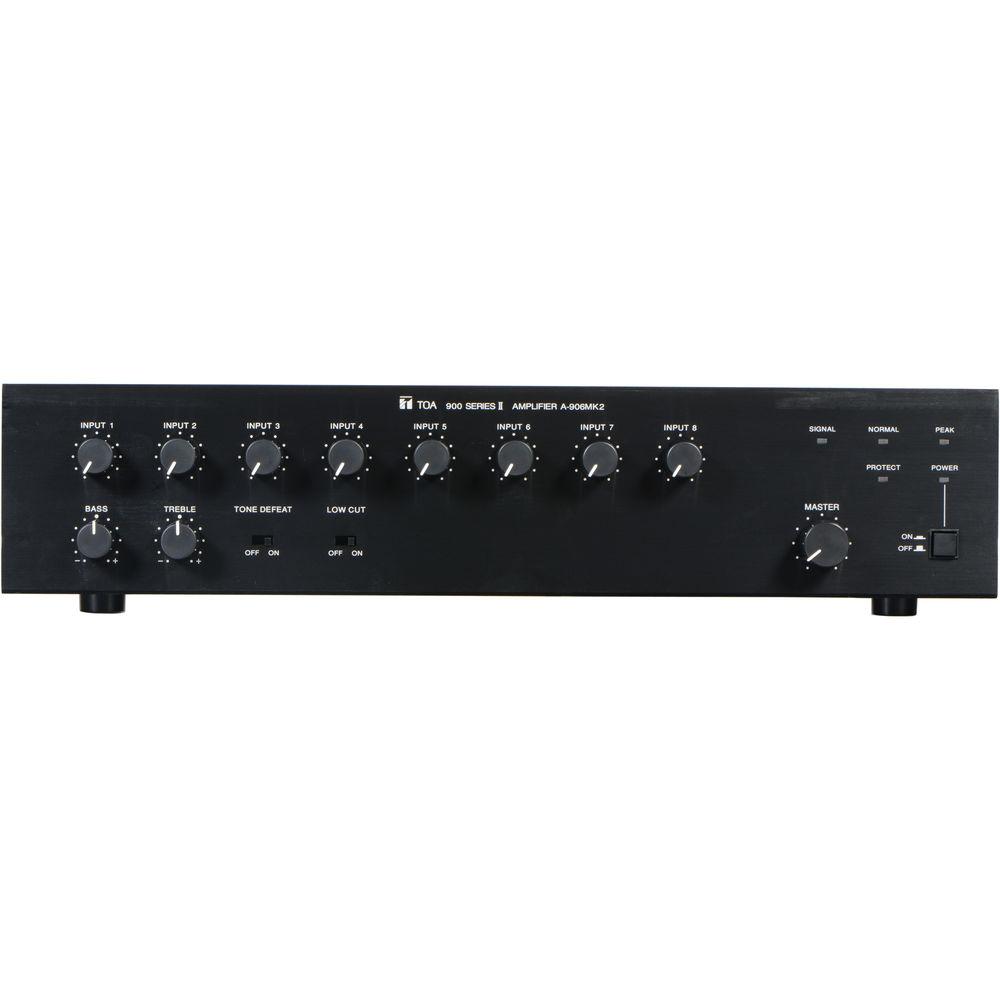

    Controls Front Panel Power Button, Master Volume Control, Individual Channel Volume Controls, Bass and Treble Controls, Low Cut Switch, and Tone Defeat Switch
    Controls (Rear) Mode Switch
    Indicators Signal, Normal, Peak, Power, and Protect LEDs on Front Panel
    Cooling Not Specified by Manufacturer
    Power Consumption 100W
    Dimensions (WxHxD) 16.5 x 3.9 x 14.1" (419 x 99 x 358 mm)
    Weight 21.2 lbs (9.6 kg)
    Specialties Delayed Output Connection at Power On
    Protection Circuitry for Overload, Overheating, and Short Circuit
    Rear-Panel AC Outlet for Powering External Device
    Package Weight 28.85 lb
    Box Dimensions (LxWxH) 22.5 x 19.0 x 7.0"
