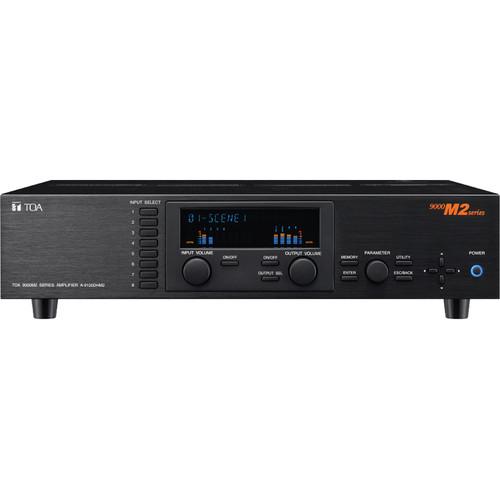

Product description The A-9240SHM2 240W Modular Amplifier from Toa Electronics is designed to be used in conjunction with optional Toa modules and can be configured for up to 8 inputs and 8 outputs. 9000 series modules as well as existing 900 series input modules can be used with the A-9240SHM2. Its 240 W power amplifier allows it to individually perform multi-origin broadcasts. It is equipped with signal processing and control functions necessary for sound reinforcement, permitting all parameters to be set using the mixer. Settings data can be stored inside the unit and called up using the keys on the front panel. In the Box Toa Electronics A-9240SHM2 240W Modular Amplifier Power Cord - 6.56' (2 m) Rack Mounting Bracket Bracket Mounting Screw Blank Panel Blank Panel Mounting Screw Removable Terminal Plug (3-Pins) Removable Terminal Plug (7-Pins) Removable Terminal Plug (14-Pins) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics A-9240SHM2 240W Modular Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics A-9240SHM2 Specs | Power Source | 120 V AC, 60 Hz | | Power Consumption | 250 W | | Rated Output | 240 W | | Audio Input | Max. 8 channels, modular construction (modules optional)
Power amplifier input: 0 dB(*1), 10 kΩ, RCA pin jack | | Audio Output | Preamplifier Output 1: 0 dB(*1), 300 ohm, unbalanced, RCA pin jackPreamplifier Output 2: 0 dB(*1), 600 ohm, balanced, removable terminal block (3 pins)Speaker Output: 240 W, 21 ohm, BTL output, removable terminal block (4 pins) | | Module Slot | Analog Input (slot 1 - 8): -10 dB(*1), 10 kohm, unbalancedDigital Input (slot 1 - 4): 24-bit/48 kHzMIX Output (slot 1 - 8): -14 dB(*1), 330 ohm (CH 1 prefader output), unbalancedDigital Output (slot 5 - 7): 24-bit/48 kHzPower Supply (slot 1 - 8): +24 V, -24 V, +6 V DC | | Reference Level | -20 dBFS | | Power Bandwidth | 20 Hz - 20 kHz, 0.008 % THD | | Frequency Response | Power Amplifier Section: 20 Hz - 20 kHz, +0, -1 dB
Analog Input Module to Speaker Output: 20 Hz - 20 kHz, +1, -3 dB | | Total Harmonic Distortion | Power amplifier section: 0.008 % (22 kHz LPF, 1 kHz, rated power)Analog input module to speaker output: 0.008 % (22 kHz LPF, 1 kHz, rated power) | | S/N Ratio | At Input short, 20 Hz - 20 kHz, set to ALL FLAT or OFF settingOutput Volume Min.: 90 dB (preamplifier output)Output Volume Max.: 61 dB (preamplifier output, Input 1 volume: 0 dB, Other Inputs: OFF)Power Amplifier Section: 110 dB | | Cross Talk | 64 dB or more (at 20 kHz) | | Tone Control | Bass: ±12 dB (at 100 Hz)Treble: ±12 dB (at 10 kHz) | | Parametric Equalizer | 10 bands, Frequency: 20 Hz - 20 kHz, 31 points, Variable Range: ±12 dB, Q: 0.3 - 5 | | Speaker Equalizer | 10 (setup software has 30 TOA speaker presets) | | High-Pass Filter | -12 dB/oct, Variable Frequency Range: 20 Hz - 20 kHz, 31 points | | Low-Pass Filter | -12 dB/oct, Variable Frequency Range: 20 Hz - 20 kHz, 31 points | | Compressor | Depth: 1 - 5 | | Delay | 0 - 40 ms (1 ms steps), maximum 40 ms (CH 1 + CH 2), mixer mode only | | Scene/Event Memory | 32 | | Advanced Functions | Key lock function | | Control I/O | RS-232C(*2), D-sub connector (9 P, female)Control Input: 4 inputs, no-voltage make contact input, open voltage: 3.3 V DCShort-Circuit Current: 1 mA or less, removable terminal block (14 pins)Control Output: 4 outputs, open collector output, withstand voltage: 27 V DCControl Current: 50 mA, removable terminal block (14 pins) (14 pins)Remote Volume: 2 channels, connect a 10 kΩ/linear taper variable resistor or input the DC voltage of 0 to +10 V, removable terminal block (14 pins) | | Operating Temperature | -10 â¿¿ to +40 â¿¿ (14 ã¿¿F to 104 ã¿¿F) | | Operating Humidity | 35% to 80% RH (no condensation) | | Finish | Panel: Aluminum, hair-line, blackCase: Surface-treated steel plate, black, paint | | Dimensions | 16.54 x 4.24 × 15.55" (420 × 107.6 × 395 mm) | | Weight | 24.25 lb (11 kg) | | | | Package Weight | 31.8 lb | | Box Dimensions (LxWxH) | 21.26 x 19.291 x 7.283" |
