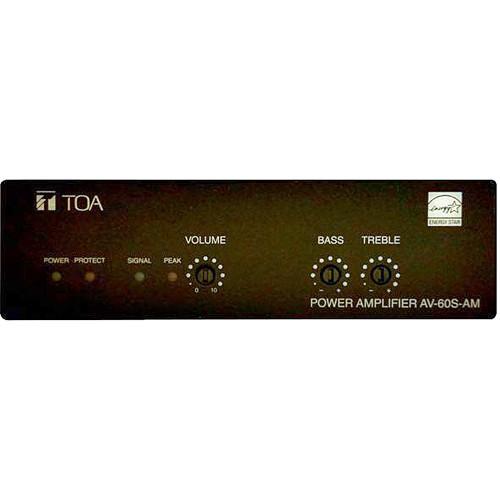

Product description The Toa Electronics AV-60S-AM is a single-channel digital amplifier for speech and general announcement. This compact amplifier is equipped with a switching power supply circuit, and is Energy Star 3.0 certified and PLENUM rated (UL 2043 tested) for installation into air handling space without an external AC adapter. The rated output power is 60W at 70V or 4 Ohms. The unit is suited for use in board rooms, conference rooms and AV presentation rooms. - Features:
-
- Micro Class D amplifier for use in meeting/board rooms & signage applications
- UL 2043-rated for plenum installation
- Energy Star certified including Auto Off/Standby
- Small in size (approx. 6 x 6 x 1.75") allows convenient & flexible placement
- L/R Line inputs via: removable Transformer-Balanced Terminal Block, 1/8" TRS mini-jack and RCA connections
- Bass & Treble Controls
- Input signal present (-20dB) and Peak LED indicators
- Clip Limiter prevents distortion due to overload
- Remote Volume Control port for use with 10k Ohm pot
- Volume control attenuators
In the Box Toa Electronics AV-60S-AM Single-Channel Micro Install Amplifier Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics AV-60S-AM Single-Channel Micro Install Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics AV-60S-AM Specs | Power Source | 100V to 240V AC, 50Hz/60Hz | | Rated Output | 60W @ 4 Ohms, 60W @ 70V | | Power Consumption | Rated Output: Less than 85W @ 70V, Less than 110W @ 4 OhmsIdle: Less than 10W @ 70V, Less than 7W @ 4 OhmsPower Save Mode: Less than 1W | | Frequency Response | 4 Ohms mode: 20 Hz to 20 KHz ± 3 dB 70 V mode: 60 Hz to 20 KHz ±3 dB(Line1 input with transformer: 100 Hz to 20 KHz) | | THD+N | Less than 0.15% | | Input | Line 1: -10/-20 dB* (selectable), 10 K ohms, transformer-balanced, removable terminal blockLine 2: -10/-20 dB* (selectable), 10 K ohms, unbalanced, 3.5mm stereo jackLine 3: -10/-20 dB* (selectable), 10 K ohms, unbalanced, RCA jacks | | Output | Speaker output, removable terminal block (2P) | | Tone Control | Bass: ±10 dB at 100 HzTreble: ±10 dB at 10 KHz | | Controls | Master volume controlRemote volume controlBass tone control, Treble tone control 70V / 4 Ohm switchInput sensitivity switches (Line 1, Line 2, Line 3) | | Indicators | Power LED, Protection LED, Signal LED, Peak LED | | Other Features | Automatic Level Control, Thermal/Over-current protection
Automatic power save function (EnergyStar rated) | | Operating Temperature | -10 to +40° C | | Case | Black metal case | | Dimensions | 5.90 x 1.73 x 6.14" (150 x 44 x 156 mm) | | Weight | 2.5 lb (1.12 Kg) |
