User Manual for Toa Electronics BG-2035 CU Mixer Amplifier Click to enlarge the picture
Contents of the user manual for the Toa Electronics BG-2035 CU Mixer Amplifier
- Product category: Mixer/Amplifiers Toa Electronics
- Brand: Toa Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Toa Electronics Mixer/Amplifiers
|
User manual for the Toa Electronics BG-2035 CU Mixer Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Toa Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Toa Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Toa Electronics product will considerably shorten its lifespan!
|

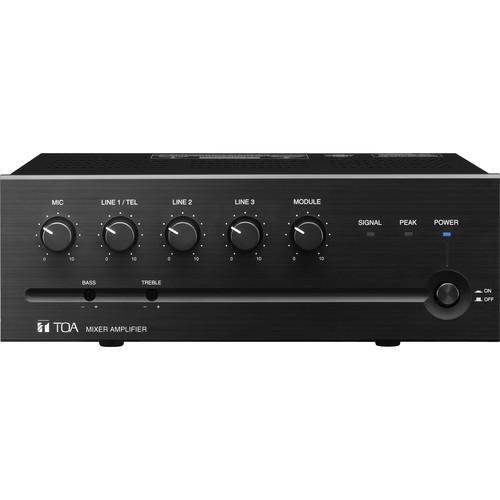

Product description The Toa BG-2035 CU Mixer Amplifier is designed to operate as the front end to any commercial audio system in background music (BGM), foreground music, paging applications and more. The BG-2035 CU features 5-channels and a power rating of 35 watts, with 2-zone operation allowing for separate programming in 2 discrete zones. The front panel features an intuitive set of controls with level dials for each channel. The rear is fitted with removable euroblock connectors and DIP switches for easy programming. The rugged chassis is easily rack mounted with the optional MB-1000 rack mount brackets. - Compact five channel Mixer-Amplifier for paging, background/foreground music distribution and music/messaging-on-hold.
- All inputs/outputs with removable terminal blocks allow quick and easy installation.
- Any of five inputs assignable to MOH/ZONE 2 output.
- RCA pin jacks for LINES 2 & 3.
- Phantom Power (+ 24V DC) incorporated for MIC input.
- Module slot accepts optional 900 Series plug-in modules for custom system configurations.
- Rear panel-mounted DIP switches allow easy configuring of settings.
- Provides auto/manual mute function with adjustable muting sensitivity.
- Incorporates Remote volume control connection.
- 2-channel broadcast capability together with zone 2 expansion capability in conjunction with BA-200 Series.
- Tamper-proof, front-panel bass and treble controls are recessed to protect their settings.
- Thermal protection circuitry prevents potential damage from excessive heat build-up.
- Supplied accessory security knobs for volume controls prevent unauthorized volume setting changes.
In the Box Toa Electronics BG-2035 CU Mixer Amplifier 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics BG-2035 CU Mixer Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics BG-2035 Specs | Rated Power Output | 35W | | Power Consumption | 94 W (rated output), 50 W (based on cULus standards)
Power Source: 120 VAC, 60Hz | | Frequency Response | 50Hz - 20kHz | | Total Harmonic Distortion (THD) | 0.5% or less, at 1 kHz, rated output | | Input | Mic: -60dB, 600 Ω, electronically balanced, removable terminal block
Line 1: -10dB/ TEL: -20dB Line 1/TEL selectable, 10 kΩ, electronically balanced, removable terminal block
Line 2, 3: -10dB, 10 kΩ, unbalanced, removable terminal block and RCA jacks Module | | Output | Speaker: 4 Ω, 25 V(18Ω), 70 V (140Ω), balanced, removable terminal block
MOH: 0dB, 600 Ω, balanced, removable terminal block Line: 0dB, 600 Ω, unbalanced, removable terminal block | | Output Regulation | 2dB or less, no load to full load (1k Hz) | | Phantom Power | On/Off switch for Mic, +24V DC | | Signal-to-Noise Ratio | Mic: 60 dB or more, Line 1/TEL, Line 2, 3, Module: 75 dB or more (Band Pass: 20 Hz - 20 kHz, Tone Controls: Centered) | | Tone Control | Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz | | Muting | Manual mute/Automatic mute | | Control | Mic gain control, Line 1/TEL gain control, Line 2 gain control, Line 3 gain control,
Module gain control, Bass tone control, Treble tone control, MOH out gain control, Mute control (Manual mute), Remote volume control, Mute sense control,
Line 1/TEL selector switch, Phantom power switch (Mic), Auto mute switch (Mic, Line 1/TEL, Module),
Mute receive switch (Mic, Line 1/TEL, Line 2, 3, Module), MOH assign switch (Mic, Line 1/TEL, Line 2, 3, Module), Power ON/OFF switch | | Indicators | Power LED, Signal level LED, Peak LED | | Operating Temperature | Operating Temperature: 0°C to 40 °C (32°F to 104 ºF)
Operating Humidity: 35% to 80% RH (no condensation) | | Finish | Panel: ABS resin, black/Case: Steel plate, black, paint | | Dimensions (WxHxD) | 10.39 × 3.71 × 10.52" (264 x 94.3 x 267.3mm) | | Weight | 11.68 lb (5.3kg) | | | | Package Weight | 14.95 lb | | Box Dimensions (LxWxH) | 14.488 x 14.331 x 6.299" |
