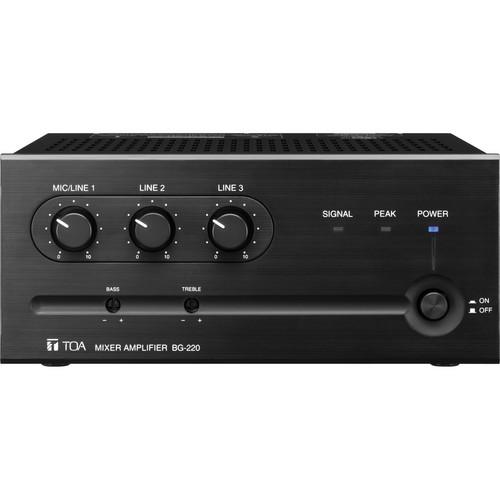

User Manual for Toa Electronics BG-220 Amplifier & Mixer Click to enlarge the picture
Contents of the user manual for the Toa Electronics BG-220 Amplifier & Mixer
- Product category: Mixer/Amplifiers Toa Electronics
- Brand: Toa Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Toa Electronics Mixer/Amplifiers
|
User manual for the Toa Electronics BG-220 Amplifier & Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Toa Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Toa Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Toa Electronics product will considerably shorten its lifespan!
|
Product description The TOA BG-220 Amplifier provides 20 watts of power to 4 ohm, 25 & 70V speakers in installed sound applications. The amplifier features a line / mic switchable input, and 2 line inputs with individual volume control and recessed treble & bass controls. Amplify background music in restaurants, commercial retail spaces, bars and more. The TOA BG-220 features removable terminal block connectors and is ideal for amplifying audio in a specific zone, or as the main amplifier in any commercial sound / paging audio system. - Massive Power supply for high-quality, reliable sound
- All inputs and outputs on removable Euro-block connections for easier installation
- 3x Inputs: Mic/Line 1 w/ Balanced phoenix input and Manual Mute Trigger; Line 2 w/ phoenix & RCA summing connector; Line 3 w/ phoenix & RCA summing connector
- Input 1 selectable between Mic/Line input level
- MOH/Zone2 balanced line output assignable via rear-panel dip switches. Selects any or all three input channels-no muting. Can be used for Music on Hold or 2nd Zone
- Mute receive assignable for channels 2 & 3 on rear-panel dip switches. Mute can be activated via "VOX" or "Contact In" signal
- Mute Sensitivity and MOH/Zone 2 are both level adjustable
- Power outputs available at 4 Ohm, 25V & 70V for more system flexibility
- Dedicated Bass & Treble controls (recessed on front panel) allow independent adjustment for main or remote zones
- Input Signal present, Peak & Power On indicators on front panel
- Supplied security cap (YA-920 x1) for volume knob to prevent unauthorized adjustment
- Thermal and overload protection
- Optional Rack-mount kits for single unit (MB-25B-BK), or dual (MB-25B-J)
In the Box Toa Electronics BG-220 Amplifier & Mixer 5 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics BG-220 Amplifier & Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics BG-220 Specs | Output Power | 20 Watts | | Frequency Response | 50Hz to 20kHz | | Inputs | Mic -60dB / Line -10dB | | Outputs | Speaker: 4 ohm, 25V & 70V balanced removable terminal block connector
MOH: 0dB, 600 ohm, balanced, removable terminal blockLine: 0dB, 600 ohm, unbalanced, removable terminal block | | Signal-to-Noise Ratio | 60dB or more | | Controls | Volume & Recessed Treble & Bass Controls | | Power | 120V AC, 60Hz | | Display | Power LED, Signal Level LED, Peak LED | | Finish | Panel: Black ABS resin
Case: Steel plate black paint | | Dimensions (WxHxD) | 8.27 x 3.71 x 10.43" (210 x 94.3 x 265mm) | | Weight | 7.72 lb (3.5 kg) | | | | Package Weight | 9.15 lb | | Box Dimensions (LxWxH) | 13.5 x 11.0 x 4.6" |
