User Manual for Toa Electronics BG-2480D 480W Mixer Amplifier Click to enlarge the picture
Contents of the user manual for the Toa Electronics BG-2480D 480W Mixer Amplifier
- Product category: Mixer/Amplifiers Toa Electronics
- Brand: Toa Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Toa Electronics Mixer/Amplifiers
 |
User manual for the Toa Electronics BG-2480D 480W Mixer Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Toa Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Toa Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Toa Electronics product will considerably shorten its lifespan!
|

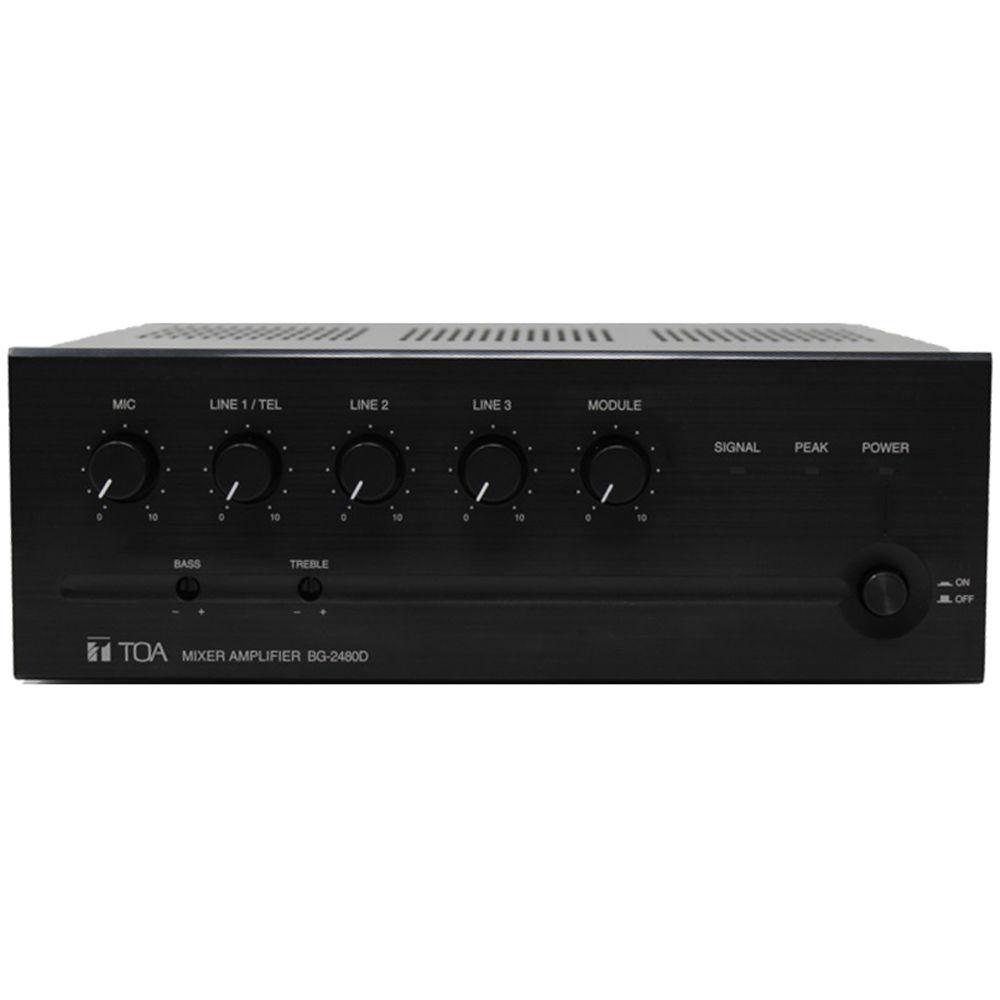

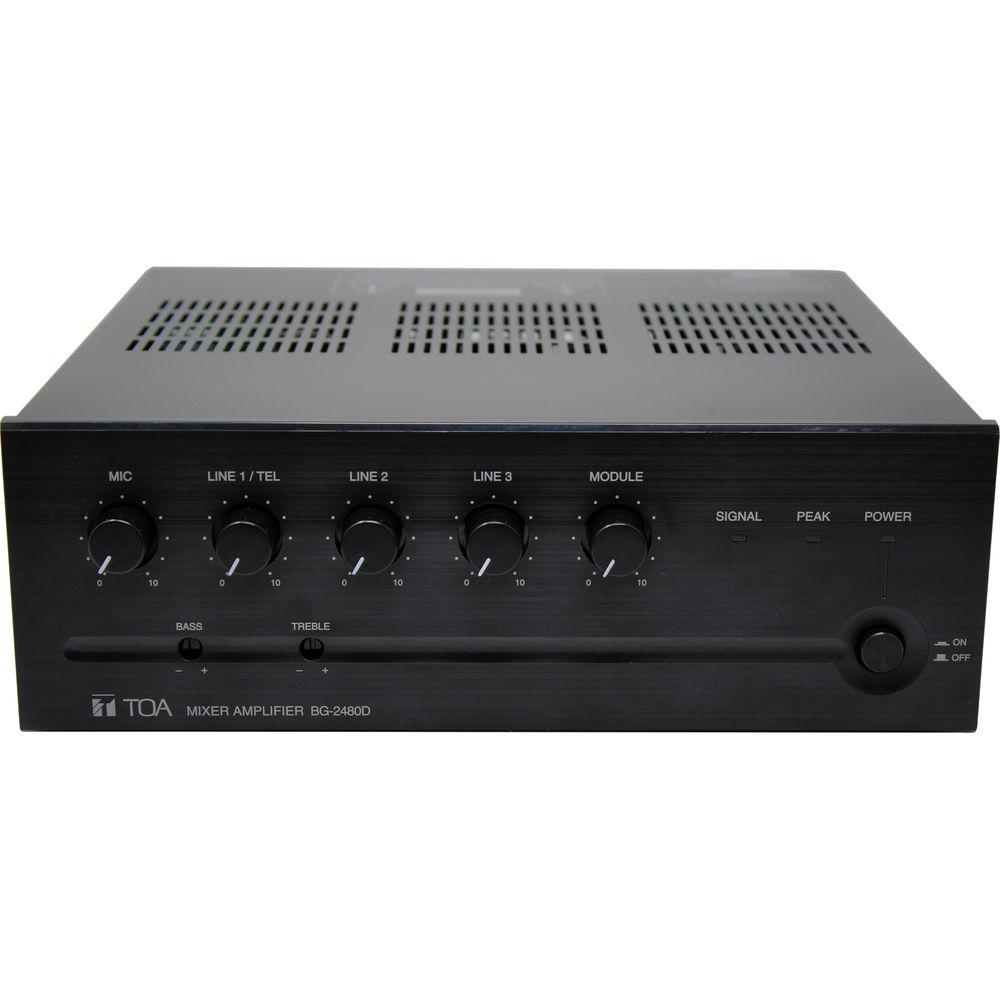

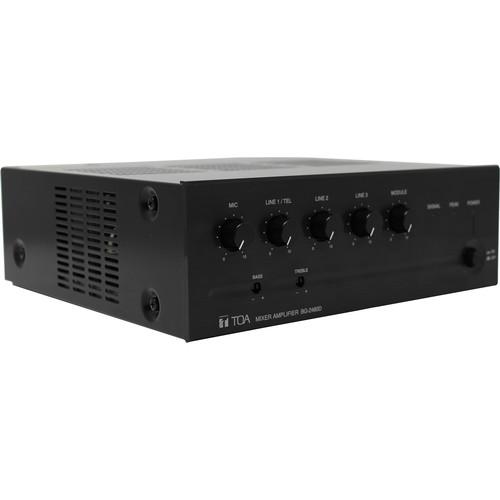

Product description The BG-2480D from Toa Electronics is a five-input digital mixer amplifier with a 480W rated output. It is designed for background music distribution and general announcements in commercial spaces such as bars, restaurants, retail stores, and hospitality facilities. It is equipped with a Music On Hold (MOH) output that permits two independent zones when used in conjunction with an optional power amplifier equipped with a line level analog audio input. - Automatic electronic drive limiter
- Automatic and manual mute functions
- DIP switch settings including MOH (secondary) output assignment for each input, mute setting, Line 1/TEL level setting, and phantom power on/off setting
- Bass and treble equalization controls on the front panel
- Removable input/output terminal blocks for easy wiring
- RCA jacks provided for Line 2 and 3 inputs
- External remote volume control input for localized volume adjustments
- Accessory security covers for front volume control knobs to prevent accidental adjustments
In the Box Toa Electronics BG-2480D 480W Mixer Amplifier 5 x YA-920 - Volume Control Security Knob abtwvcruyevuxyfdfswzatrbryu 4 x Removable Terminal Plug (2 Pins) 2 x Removable Terminal Plug (3 Pins) Removable Terminal Plug (Screw 2 Pins) Removable Terminal Plug (5 Pins) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics BG-2480D 480W Mixer Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

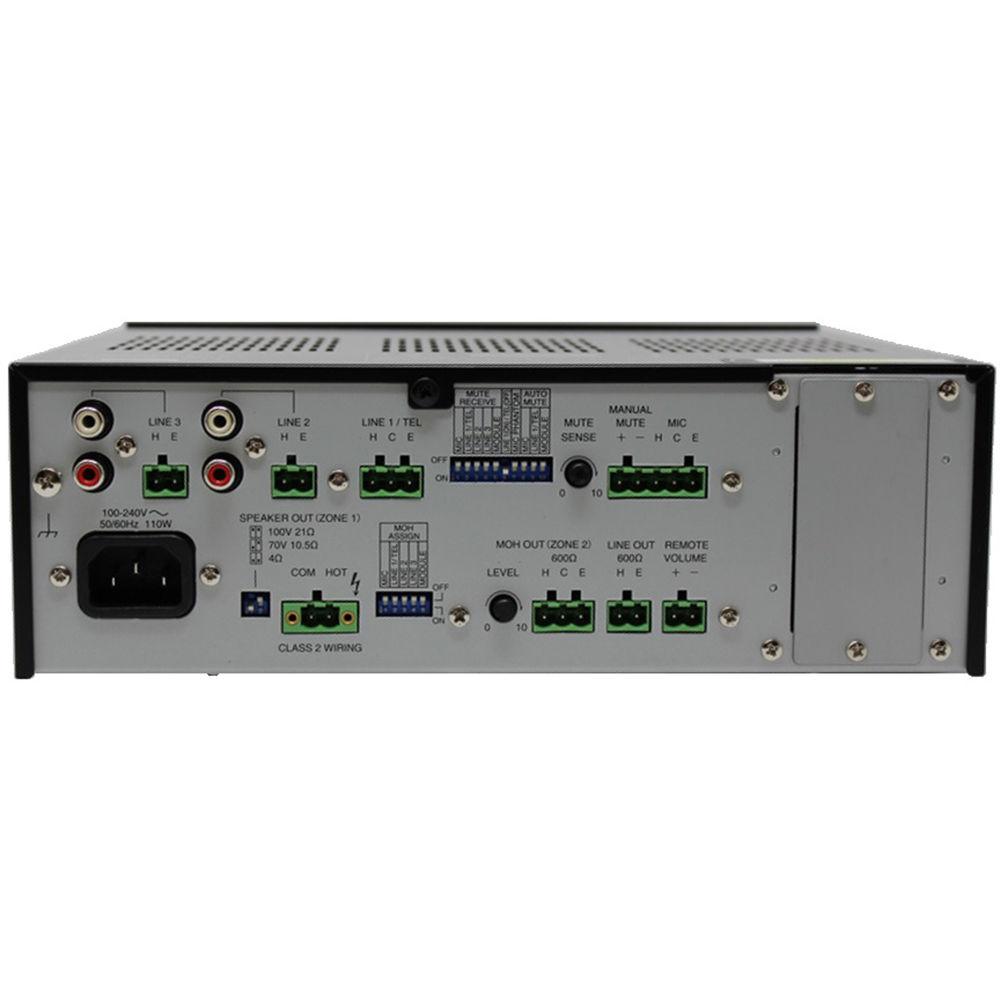

Technical parametersToa Electronics BG-2480D-AM Specs | Frequency Range | 50 Hz to 20 kHz (line) | | Total Harmonic Distortion | Up to 0.8% at 1 kHz, 1/3 rated output | | Input | 1 x Mic: 3-pin terminal block, -60 dB, 600 Ohms
1 x Line 1/TEL Selectable: 3-pin terminal block, 10 kOhms, electronically balanced
1 x Line 2: 2RCA & 2-pin terminal block, -10 dB, 10 kOhms, unbalanced
1 x Line 3: 2RCA & 2-pin terminal block, -10 dB, 10 kOhms, unbalanced | | Output | 1 x Speaker: 2-pin terminal block, Lo-z (4 Ohms), 70 V (10.5 Ohms), 100 V (21 Ohms)
1 x MOH: 3-pin terminal block, 0 dB, 600 Ohms, balanced
1 x Line: 2-pin terminal block, 0 dB, 600 Ohms, unbalanced | | Output Regulation | 2 dB or less, no load to full load (1 kHz) | | Phantom Power | On/off switch for microphone, 24 VDC | | S/N Ratio | Microphone: Over 60 dB
Line 1/TEL, Line 2, 3, Module: Over 80 dB (A-weighted)
(Tone Controls: Centered) | | Muting | Manual mute, automatic mute | | Tone Control | Bass:
