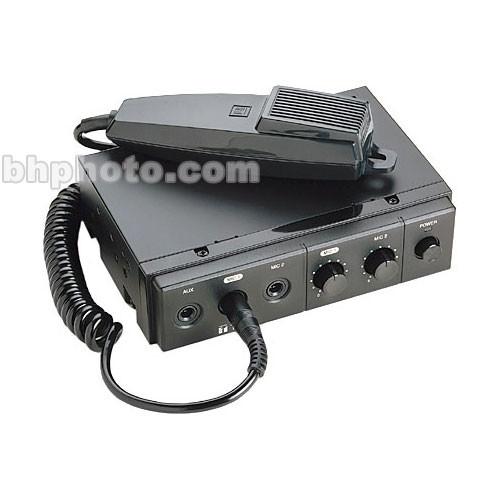

User Manual for Toa Electronics CA130 30W Mobile Mixer Amplifier with Microphone Click to enlarge the picture
Contents of the user manual for the Toa Electronics CA130 30W Mobile Mixer
- Product category: Portable PA Systems Toa Electronics
- Brand: Toa Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Toa Electronics Portable PA Systems
|
User manual for the Toa Electronics CA130 30W Mobile Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Toa Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Toa Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Toa Electronics product will considerably shorten its lifespan!
|
Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More vavfvzzbtsfvxytetvdfrurzzxbazsbs The TOA CA130 30W Mobile Mixer Amplifier with Microphone is the perfect compact mixer/amplifier for public address and emergency paging applications. The CA130 works on a standard 12V battery and cranks out 30W of power into four- or eight-Ohm speaker loads. This CA130 unit mounts conveniently under a dashboard or into a standard console cutout with the included hardware. The two microphone inputs with individual volume controls give you great flexibility while the additional auxiliary input lets you get a little bit more creative by giving you mixed media capabilities. - Easily Mounted
- This compact model is easily mounted under the dashboard or into a standard console cutout with the enclosed mounting hardware.
- Dual Microphone Inputs
- The two microphone inputs have separate volume controls and the CA130 unit comes with a handheld microphone with its own on/off switch.
- Mixed Media
- The auxiliary input lets you attach a CD player, radio, MP3 player, or tone generator to give your presentation or announcement an added layer of zing to attract the audience.
In the Box Toa Electronics CA130 30W Mobile Mixer Amplifier with Microphone Microphone Holder Handheld Microphone Mounting Bracket and Hardware Fuse Set of Connection Cords Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics CA130 30W Mobile Mixer Amplifier with Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics CA-130 Specs | | | Input | 2 x Microphone 1/4" / 6.3 mm Phone Jacks (600 Ohms, 4 mV) | | Auxiliary | 1/4" / 6.3 mm Phone Jack (10 kOhms, 500 mV) | | Distortion | <5% (at 1 kHz Rated Output) | | Power Output | 30 W | | Impedance | 4 / 8 Ohms | | Frequency Response | 100 Hz to 10 kHz | | Operating Voltage | 10 to 16 VDC | | Power Consumption | 5 A or Less at Rated output | | Material of Construction | Front Panel: ABS Resin, Black
Case: Zinc Plated Steel Sheet | | Dimensions (W x H x D) | 7.0 x 2.0 x 5.7" / 17.8 x 5.0 x 14.4 cm | | Weight | 2.4 lb / 1.1 kg | | | | Type | Unidirectional Dynamic Microphone with Talk Switch | | Impedance | 600 Ohms | | Sensitivity | -53 dB (1 kHz, 0 dB = 1 V/Pa) | | | | Package Weight | 3.97 lb | | Box Dimensions (LxWxH) | 10.24 x 10.04 x 2.87" |
