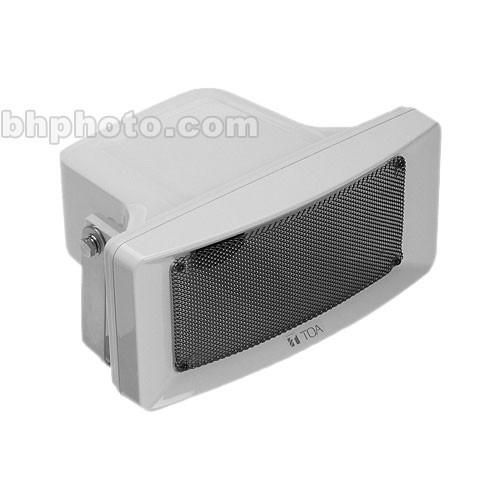

User Manual for Toa Electronics CS-304U Wide-Range 30 Watt UL-Listed Paging Speaker Click to enlarge the picture
Contents of the user manual for the Toa Electronics CS-304U Wide-Range 30 Watt
- Product category: Installed Speakers Toa Electronics
- Brand: Toa Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Toa Electronics Installed Speakers
|
User manual for the Toa Electronics CS-304U Wide-Range 30 Watt contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Toa Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Toa Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Toa Electronics product will considerably shorten its lifespan!
|
Product description TOA Electronic's CS-304U Wide-Range 30 Watt UL-Listed Paging Speaker is a 4.7" cone driver paging speaker integrated with a 70.7V/100V transformer. Designed for indoor and outdoor commercial sound system applications like background music, paging, tone-signalling, this gray speaker features superior sound quality and a wider frequency range than standard paging speakers. UL-Listed for outdoor use, this weather-resistant, durable speaker is dust and moisture-resistant and will function in a wide range of temperatures. Built of ABS resin with stainless-steel mounting parts, this speaker would be useful in a wide variety of applications like boats, churchs, schools, swimming pools, security, and more. This speaker comes with a 5-year warranty. - Multi-Tap Transformer
- The 70.7V/100V integrated transformer has a screwdriver-adjustable power tap for easy convertability.
- UL-1480 Listed
- With dust and moisture-resistance, a wide temperature operational range, and stainless-steel brackets, this UL-Listed speaker is suitable for both indoor and outdoor use.
- Polyurethane Resin Paint
- Coated with polyurethane resin paint, this speaker will resist the fading effects of ultraviolet light.
- Protective Mesh Grille
- A stainless-steel mesh grill protects the speaker from damage.
In the Box Toa Electronics CS-304U Wide-Range 30 Watt UL-Listed Paging Speaker 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics CS-304U Wide-Range 30 Watt UL-Listed Paging Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics CS-304U Specs | Active or Passive | Passive | | Frequency Response | 120Hz - 15kHz | | Power Capacity | 30W Program | | Maximum Sound Pressure Level (SPL) | 98 dB, 1W/1m | | Nominal Sensitivity | 98 dB | | Impedance | 70.7V: 30W (170 ohms)
100 V: 30W (330 ohms) | | Crossover | Not Specified by Manufacturer | | Shielded | No | | Low Frequency Driver | 4.7" Cone Driver | | High Frequency Driver | 4.7" Cone Driver | | Enclosure Material | Fire-Resistant ABS Resin | | Input Connections | Not Specified by Manufacturer | | Environmental | Sealed Enclosure, Moisture-Resistant, Stainless-Steel Mounting Hardware | | Dimensions | 14.4 x 9.1 x 10.7" (366 x 230 x 272mm) | | Weight | 6.8 lbs (3.1 kg) | | Specialties | Moisture-Resistant, Built-In 70.1V/100V Transformer | | | | Package Weight | 8.82 lb | | Box Dimensions (LxWxH) | 16.54 x 13.66 x 8.78" |
