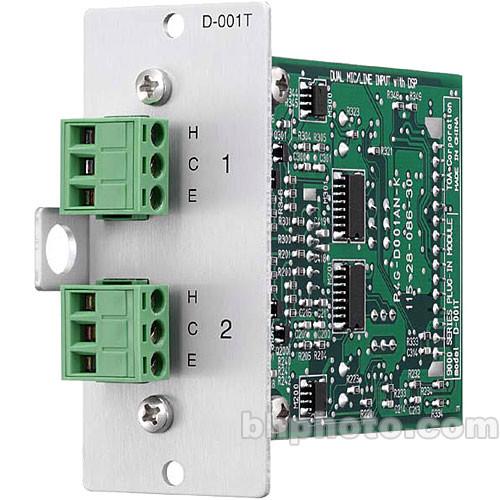

Product description The D-001T from TOA is a dual mic/line input module for use with series 9000 amplifiers. It features two removable terminal block connectors, which accept balanced mic or line inputs. On-board digital signal processing includes 10-band parametric EQ, bass/treble, loudness, high and low pass filters, and a compressor.
The D-001T has an adjustable sensitivity from -60 to -10 dBV and offers 24 VDC phantom power. This unit is required for VOX functioning and input level metering in series 9000 amplifiers. Up to four D-001T modules may be installed in an amplifier chassis. - Compatible with series 9000 amplifiers from TOA
- Two balanced mic/line inputs
- DSP includes EQ, bass/treble, loudness, high and low pass filters, and a compressor
In the Box Toa Electronics D-001T - Dual Mic/Line Input Module with DSP for Series 9000 Amplifiers 2 x Mounting Screws 5 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics D-001T - Dual Mic Line Input Module with DSP for Series 9000 Amplifiers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics D-001T Specs | Inputs | 2 x Removable Terminal Blocks (3-Pin, Electronically Balanced) | | Input Impedance | 3 k ohms (Phantom Power On)
10 k ohms (Phantom Power Off) | | Input Sensitivity | -60, -54, -48, -42, -36, -30, -24, -18, -10dB (Selectable) | | Power Source | +24 VDC, -24 VDC, +6 VDC | | Current Consumption | 20 mA @ +24 VDC
20 mA @ -24 VDC
60 mA @ +6 VDC | | Frequency Response | 20Hz - 20kHz | | THD + N | 0.008% @ 1kHz | | S/N Ratio (Audio) | Over 73dB | | Crosstalk | Over 75dB | | Common Mode Rejection Ratio | Over 62dB | | A/D Converter | 24-bit | | Sampling Frequency | 48kHz | | Tone Control | Bass: +/- 12dB @ 100Hz
Treble: +/- 12dB @ 100Hz | | Parametric Equalizer | 10 Bands | | High-Pass Filter | -12db/Oct | | Low-Pass Filter | -12db/Oct | | Compressor | Depth: 1-5 | | Phantom Power | +24 VDC | | Operating Temperature | -10 degrees C to -40 degrees C | | Dimensions (WxHxD) | 1.4 x 3.1 x 3.6 (35 x 78 x 92 mm) | | Weight | 2.9 oz (82 g) | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 4.095 x 3.307 x 1.654" |
