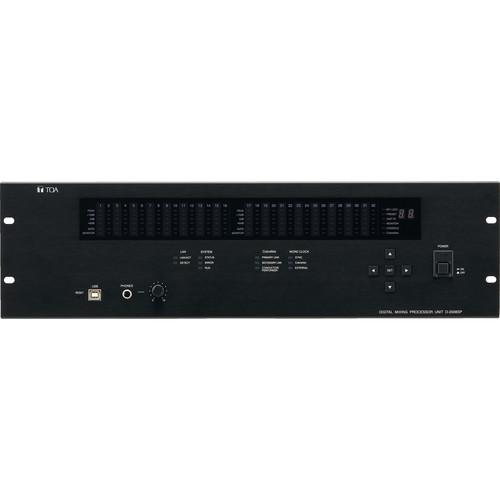

Product description The D-2008SP Digital Mixing Processor Unit from Toa Electronics features up to 32 audio inputs and outputs in total, and can be mounted in an ElA standard equipment rack (3U size). A built-in powerful signal processing function permits the unit to be used as both a mixer and a signal processor. Its audio input/output and control parts can accept optional plug-in modules, allowing the unit to have a maximum of 32 inputs or 32 outputs and up to 2 control modules (available separately). The optional plug-in modules enable the unit to perform their functions; for example, two D-983 remote control modules can be used to provide a maximum of 48 contact inputs and 32 contact outputs. Similarly, the D-984VC module can be added for VCA control and the D-2000CB CobraNet interface module can be used for audio data transfer between multiple processor units. Each function can be set by the dedicated setting software on a PC. These settings can be stored in the unit's internal memory as presets, which can be recalled by the unit without using a PC. In the Box Toa Electronics D-2008SP 32-Channel Digital Mixing Processor Unit Software CD 6.5' Power Cord 4 x Module Mounting Screws 8 x Blank Panels (Pre-installed on the Module Slot) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics D-2008SP 32-Channel Digital Mixing Processor Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics D-2008SP CU Specs | Frequency Response | 20 Hz to 20 kHz, ±1 dB (+4 dB input) | | Sampling Frequency | 48 kHz | | Input | Maximum 32 channels
Modular construction (modules available separately) | | Output | Maximum 32 channels
Modular construction (modules available separately) | | Headphone | 1 x stereo | | Equalizer | Parametric: 20 Hz to 20 kHz, i15 dB, Q: 0.267 to 69.249
Horn: 20 kHz, 0 to +18 dB (0.5 dB steps) | | Filter | Filter High-Pass: 20 Hz to 20 kHz (6 or 12 dB/oct)
Low-Pass: 20 Hz to 20 kHz (6 or 12 dB/oct)
Crossover: 20 Hz to 20 kHz (6, 12, 18, or 24 dB/oct)
Notch: 20 Hz to 20 kHz, Q: 8.651 to 69.249
All-Pass: 20 Hz to 20 kHz, Q: 0.267 to 69.249
High Shelving: 6 to 20 kHz, ±15 dB
Low Shelving: 20 to 500 Hz, ±15 dB | | Compressor / Limiter | Compressor Mode:
Threshold: -20 to +20 dB (1 dB steps)
Ratio: 1:1, 1.1:1, 1.2:1, 1.3:1, 1.5:1, 1.7:1, 2:1, 2.3:1, 2.6:1, 3:1, 4:1, 5:1, 7:1, 8:1, 10:1, 12:1, 20:1, ∞:1
Attack Time: 0.2 ms to 5 sec
Release Time: 10 ms to 5 sec
Gain: ∞ to +10 dB
Knee Type: hard knee, soft knee 1, soft knee 2
Auto-Leveler Mode:
Target Level: -20 to +10 dB (1 dB steps)
Maximum Gain: 0 to +20 dB (1 dB steps)
Attack Time: 10 ms to 10 sec
Release Time: 100 ms to 10 sec | | Delay Time | Output: 0 to 1360 ms (0.021 ms steps)
Bus: 0 to 677 ms (0.021 ms steps) | | Matrix | Input: Maximum 32 channels x 24 buses
Output: Maximum 44 (24 + 4 + 16) buses x 32 channels
CobraNet Interface with Optional Module:
Output: Maximum 16 channels x 24 buses
Output: Maximum 28 (24 + 4) buses x 16 channels | | Gain | Crosspoint Gain: -∞ to 0 dB (1 dB steps) | | Preset Memory | 32 | | Auxiliary | Key locking function | | Network Interface | 10BASE-T/100BASE-TX (automatic-negotiation), Connected via a switching hub | | Network Protocol | TCP/lP | | Connection Cable | CAT5-STP or higher twisted pair LAN cable
Maximum Cable Distance: 328' / 100 m, between D-2008SP unit and switching hub | | Control | RS-232C: 9-pin D-sub connector, used for control
Module: 2 remote control module slots | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Material | Panel: Aluminum, hair-line finish
Case: Surface-treated steel plate | | PC Requirements | CPU:
Intel Premium4 2 GHz or higher
RAM:
1.5 GB or more (2 GB is more recommended)
Display:
1024 x 768 resolution or higher
Free Hard Disk Space:
16 MB or more (For D-2000 setting software installation)
500 MB or more (when ".NET Framework" needs to be installed)
LAN Card: Compatible to 10BASE-T or faster connection
Operating System:
Windows XP SP2 or later
Windows Vista (32/64-bit edition)
Windows 7 (32/64-bit edition)
Required Component:
.NET Framework Version 3.5 SP1 | | Power Source | 120 VAC, 60 Hz | | Power Consumption | 78 W | | Dimensions | 19 x 5.2 x 13.5" / 48.2 x 13.3 x 34.3 cm | | Weight | 13.9 lb / 6.3 kg |
