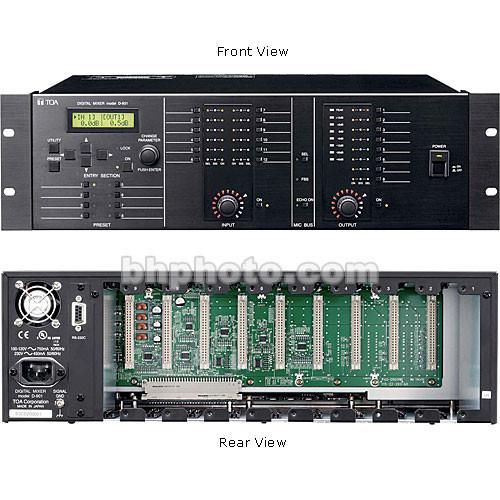

User Manual for Toa Electronics D-901 - Modular Digital Mixer Click to enlarge the picture
Contents of the user manual for the Toa Electronics D-901 - Modular Digital
- Product category: Install Sound Mixers Toa Electronics
- Brand: Toa Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Toa Electronics Install Sound Mixers
|
User manual for the Toa Electronics D-901 - Modular Digital contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Toa Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Toa Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Toa Electronics product will considerably shorten its lifespan!
|
Product description The D-901 from TOA Electronics is a digital mixer/processor, and an ideal solution for a wide variety of installed sound applications, including audio/visual facilities, houses of worship and many others. The unit can be programmed from the front panel, or via PC control software for Windows. Settings can be stored in the unit's internal memory and can be recalled using front-panel controls. The digital mixer can be configured with up to twelve inputs, eight buses, and eight outputs. It features all the signal processing functions necessary for sound systems that require feedback suppression, dynamics and EQ, crossovers, delays and auto-mixing. However, the exact configuration of input, output and control functions are left to the end-user. Sixteen modules are available. - Rack-mount digital mixer/processor for installed sound applications such as audio/visual facilities, houses of worship, and others
- Modular design allows versatile configurations - up to twelve inputs and eight outputs (modules not included)
- Audio processing tools include a digital mixer, feedback suppression, auto mixing, parametric EQ, compression, delay and echo
- Feedback suppressor automatically processes feedback at certain frequencies through constant monitoring then automatically attenuates only the precise problematic frequencies, keeping the audio sounding natural
- Ducker automatically adjusts all channel gains in response to input signal level
- NOM (Number of Open Microphones) Attenuation automatically adjusts the input gain of open microphones corresponding to the number of open microphones in the system
- Eight-bus matrix allows flexible input-to-output signal routing for zoning or room-combining
- All settings can be performed at the unit using the LCD screen and setting keys and knobs located on the front panel
- PC software for offsite programming and archiving settings
- Sixteen internal memories for storage and recall of different signal routing and parameter configurations
- An RS-232C port permits remote control of the unit using an AMX or Crestron controller, or similar external equipment
- The use of an optional D-981 or D-983 Remote Control Module, or an optional D-984VC VCA Control Module permits easy remote operation of volume control and preset memory recall
- The use of an optional D-984VC VCA Control Module permits the sound volume to be adjusted from remote locations using the faders or volume controls
- Input and output channel metering
- A protect function prevents accidental changes of front panel key settings
In the Box Toa Electronics D-901 - Modular Digital Mixer AC Power Cable Rack-Mounting Hardware Software CD-ROM Five (5) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics D-901 - Modular Digital Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics D-901 Specs | Frequency Response | 20Hz to 20kHz, +/-1dB | | Dynamic Range | As per optional module(s) | | Inputs | As per optional module(s) - maximum 12 inputs | | Outputs | As per optional module(s) - maximum 8 outputs | | Input Impedance | As per optional module(s) | | Output Impedance | As per optional module(s) | | Maximum Input Level | As per optional module(s) | | Maximum Output Level | As per optional module(s) | | Sample Rate | 48kHz (digital input modules will accept 32 to 48kHz) | | Phantom Power | +15VDC on D-921F, D-921E, D-922F and D-922E | | Crosstalk | Not specified by manufacturer | | THD + N | As per optional module(s) | | Dimensions (WxDxH) | 19" x 12.6 x 5.25" (483 x 320 x 133mm) | | Weight | 15.2 lbs (6.9 kg) | | Specialties | Includes cooling fan for reliable operation | | | | Package Weight | 20.5 lb | | Box Dimensions (LxWxH) | 22.91 x 19.29 x 9.25" |
