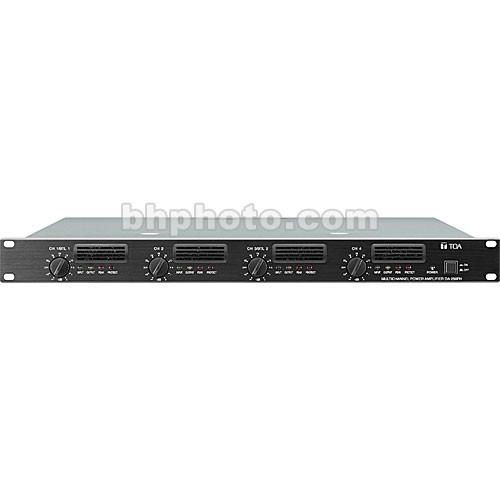

Product description The DA-250F from Toa Electronics is a high-quality 1RU digital amplifier designed for installed applications. It offers four channels of input and output, with removable terminal block inputs and a screw terminal strip for outputs. In addition to standard four-channel operation, the unit can be set to bridge mode, giving the unit two high-power output channels. If desired, the first input channel signal can be routed to all four outputs, perfect for multi-zone paging.
The front of the unit provides large control knobs for input level control, as well as LEDs to show input, output, power, peak, and protect status. The built-in protection circuitry protects against damages from short circuits, overloads, and overheating. Class-D circuitry provides excellent audio quality and allows the DA-250F to operate at 85 percent efficiency, so it consumes almost 1/3 less power than analog amplifiers. - Sleek, 1RU unit fits into any standard audio rack
- Four channels of I/O, perfect for multiple zones
- Selectable bridge mode provides two high-power outputs
- Terminal block inputs and a screw terminal strip for outputs make it easy to connect equipment
- The channel 1 input may be routed to all outputs, perfect for paging
- Class-D circuitry for great audio quality and efficiency
- Independent power supply for each channel
- Simple interface with front-panel level control knobs
- Protection circuitry for short circuits, overheating, and overloads
- Status LEDs for power, input, output, peak, and protect
- Removable dust filters for easy cleaning
In the Box Toa Electronics DA-250F - 4-Channel Digital Amplifier (4 x 250W @ 4 Ohms) Power Cord 4 x 3-Pin Removable Terminal Plugs 4 x Volume Control Caps User Guide 5-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics DA-250F - 4-Channel Digital Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics DA-250F Specs | Output Power | 4 x 250W (4 Ohms)
4 x 170W (8 Ohms)
2 x 500W (8 Ohms Bridged) | | Frequency Response | 20Hz - 20kHz (±1dB) | | Total Harmonic Distortion (THD) | 0.15% (1kHz)
0.3% (20Hz - 20kHz) | | Input Sensitivity | +4dB (1.23V) or -10dB (0.24V) (Selectable with Inner Jumper) | | Input Impedance | 10 kOhms, Electronically Balanced | | Signal to Noise Ratio | 100dB | | Connectors | 1 x AC Power Input
4 x 3-Pin Removable Terminal Block Input Connectors
1 x Screw Terminal Strip Output (4 Channels) | | Controls | 1 x Power Switch
4 x Input Volume Control Knobs
2 x Bridge On/Off Buttons
1 x Ch1 Mode On/Off Button | | Indicators | 1 x Blue Power LED
4 x Green Input LEDs
4 x Yellow Output LEDs
4 x Red Peak LEDs
4 x Red Protect LEDs | | Power Requirements | 120VAC, 50/60Hz | | Power Consumption | 200W (@ 1/8 Rated Output x 4 Channels) | | Dimensions (WxHxD) | 19 x 1.7 x 15.7" (483 x 44 x 400mm) | | Weight | 14.5 lbs (6.6kg) | | | | Package Weight | 18.08 lb | | Box Dimensions (LxWxH) | 23.23 x 22.44 x 3.54" |
