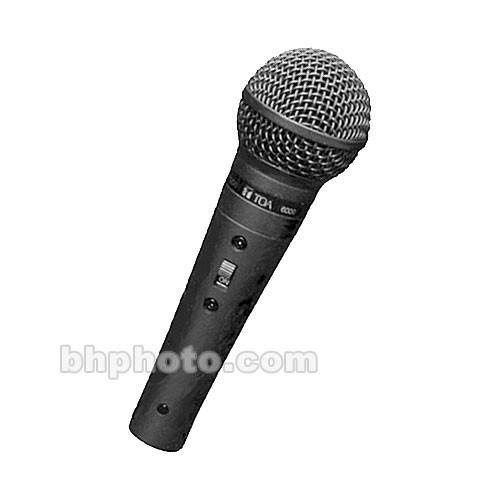

User Manual for Toa Electronics DM-1300US Handheld Cardioid Dynamic Microphone Click to enlarge the picture
Contents of the user manual for the Toa Electronics DM-1300US Handheld Cardioid Dynamic
- Product category: Dynamic Microphones Toa Electronics
- Brand: Toa Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Toa Electronics Dynamic Microphones
|
User manual for the Toa Electronics DM-1300US Handheld Cardioid Dynamic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Toa Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Toa Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Toa Electronics product will considerably shorten its lifespan!
|
Product description The Toa Electronics DM-1300US is a handheld cardioid dynamic microphone offering a frequency response tailored for reproduction of vocals and speech in concert venues, lectures, houses of worship, and presentations. Its dynamic element requires no power source and delivers a frequency response of 70 Hz to 15 kHz. The cardioid polar pattern rejects sound behind the mic, yielding enhanced immunity to feedback and decreased pickup of room ambience.An on/off switch is provided for convenient muting of the mic between speeches or performances. The DM-1300US features a rugged die-cast zinc body that is made to withstand the rigors of heavy road use. It ships with a USA-style stand adapter for easy attachment to a mic stand (available separately). - Ideal for lectures, announcements, speeches, and vocals
- Cardioid polar pattern provides excellent off-axis rejection for enhanced gain before feedback
- Rugged construction includes the zinc die-cast housing, a die-cast aluminum head, and a steel mesh grille
- Convenient on/off switch for easy control of audio from the stage
- XLR 3-pin output for compatibility with most mixer inputs, microphone preamps, and portable PA systems
In the Box Toa Electronics DM-1300US Handheld Cardioid Dynamic Microphone USA-Style Stand Adapter Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics DM-1300US Handheld Cardioid Dynamic Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics DM1300US Specs | | | Sound Field | Mono | | Operating Principle | Pressure Gradient | | Transducer | Dynamic | | Tube | No | | Polar Pattern | Cardioid | | Frequency Range | 70 Hz to 15 kHz | | Pad | None | | Impedance | 600 Ohms | | Sensitivity | -54 dB at 1 kHz | | Low-Cut Filter | None | | | | Output Connectors | 1 x 3-Pin XLR | | Length | 6.69" / 169.93 mm | | Diameter | 2.4" / 60.96 mm | | Weight | 9.65 oz / 274 g | | | | Package Weight | 0.88 lb | | Box Dimensions (LxWxH) | 8.58 x 3.94 x 2.6" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 75 owners. Add your rating and experience with the product.
