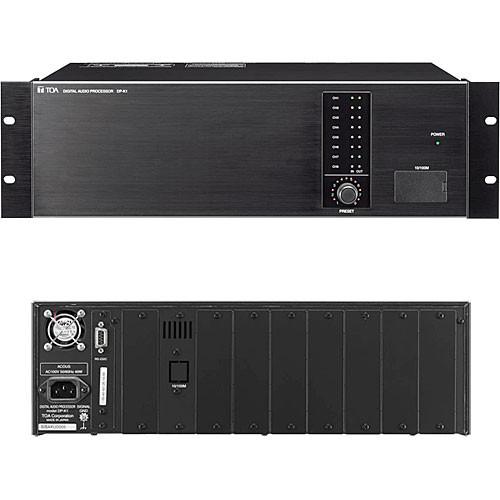

User Manual for Toa Electronics DP-K1 - Modular Digital Audio Processor Click to enlarge the picture
Contents of the user manual for the Toa Electronics DP-K1 - Modular Digital
- Product category: System Processors Toa Electronics
- Brand: Toa Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Toa Electronics System Processors
|
User manual for the Toa Electronics DP-K1 - Modular Digital contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Toa Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Toa Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Toa Electronics product will considerably shorten its lifespan!
|
Product description The DP-K1 from TOA Electronics is a digital mixer/processor, ideal for a wide variety of installed sound applications including houses of worship, sports facilities, convention centers, airports, and many others. The unit is programmed via PC control software for Windows and includes a built-in network interface for remote access. The unit provides all the essential audio DSP for use in these applications, but leaves the exact configuration of input, output and control functions to the end-user. Fourteen modules are available. The modular design supports up to eight microphone/line inputs and eight line outputs with flexible contact-closure remote control. A unique feature of the DP-K1 is TOA's Automatic Resonance Control (ARC) algorithm. The software measures and then identifies room mode frequencies and constructs an inverse EQ curve to compensate. The result is improved speech intelligibility and sound quality in facilities with difficult acoustic environments, and the process is not hampered by the addition of people in the space. Note: At least one input module and one output module are required for operating the unit. - Rack-mount digital mixer/processor for installed sound applications such as houses of worship, sports facilities, convention centers, airports and others
- Modular design allows versatile configurations - up to eight inputs and eight outputs (modules not included)
- Includes all essential audio processing tools - compressors, gates, crossovers, multi-band filtering, parametric, high/low-pass, all-pass and notch filters, horn EQ, high/low shelving and output delay
- Automatic Resonance Control (ARC) automatically identifies room mode frequencies and applies an inverse response curve to compensate for the measured room response
- Eight-bus matrix allows flexible input-to-output signal routing for zoning or room-combining
- Network interface for remote programming and maintenance
- PC software for offsite programming and archiving settings
- Up to twenty-four programmable switch inputs for activation of memory, volume up/down, channel on/off and stereo input selection
- Up to sixteen programmable relay outputs to activate during memory, channel on/off, input status and stereo input selection
- Eight internal memories for storage and recall of different signal routing and parameter configurations
- Eight front panel memory select buttons
- Input and output channel metering
- Front panel lock protects settings
In the Box Toa Electronics DP-K1 - Modular Digital Audio Processor AC Power Cable Rack-Mounting Hardware Software CD-ROM Five (5) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics DP-K1 - Modular Digital Audio Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics DP-K1 CU Specs | Frequency Response | 20Hz to 20kHz, +/-1dB | | Dynamic Range | As per optional module(s) | | Inputs | As per optional module(s) - maximum 8 inputs | | Outputs | As per optional module(s) - maximum 8 outputs | | Input Impedance | As per optional module(s) | | Output Impedance | As per optional module(s) | | Maximum Input Level | As per optional module(s) | | Maximum Output Level | As per optional module(s) | | Sample Rate | 48kHz (digital input modules will accept 32 to 48kHz) | | Phantom Power | +15VDC on D-921F, D-921E, D-922F and D-922E | | Crosstalk | Not specified by manufacturer | | THD + N | As per optional module(s) | | Dimensions (WxDxH) | 19" x 12.6 x 5.25" (483 x 320 x 133mm) | | Weight | 16.3 lbs (7.4 kg) | | Specialties | Includes cooling fan for reliable operation | | | | Package Weight | 23.0 lb | | Box Dimensions (LxWxH) | 22.913 x 19.291 x 9.252" |
