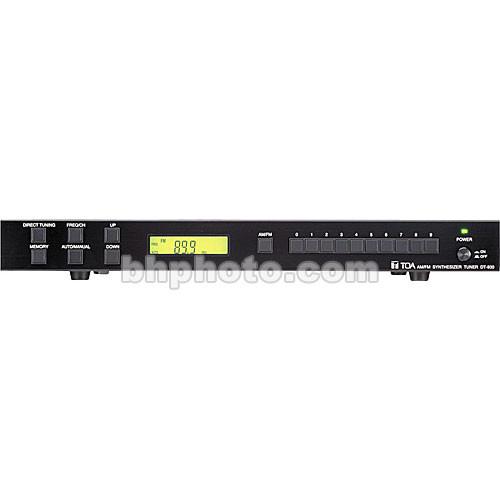

User Manual for Toa Electronics DT-930 - Rack-Mountable AM FM Stereo Tuner Click to enlarge the picture
Contents of the user manual for the Toa Electronics DT-930 - Rack-Mountable AM
- Product category: Tuners & A/V Receivers Toa Electronics
- Brand: Toa Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Toa Electronics Tuners & A/V Receivers
|
User manual for the Toa Electronics DT-930 - Rack-Mountable AM contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Toa Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Toa Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Toa Electronics product will considerably shorten its lifespan!
|
Product description The DT-930 from TOA Electronics is an electronically-synthesized AM/FM stereo tuner designed for providing program material for background and foreground music systems in clubs, restaurants, hotels, banks, and more. It uses high-quality digital tuning for reliable signal reception and outstanding sound quality. It has 40 assignable presets so all of your favorite stations are always easily accessible.
The DT-930 offers stereo and mono outputs so connection to your system is a snap. Intuitive controls and a large LCD display make operating the tuner simple and easy. In addition to automatic and manual up/down tuning, stations can also be entered directly for fast navigation to a different station. For tuning without regard to frequency, the DT-930 provides Automatic Preset Tuning, which automatically scans the selected band and automatically stores the first 20 stations it encounters. - Rack-mountable with optional MB-15B kit
- High-quality, commercial grade AM/FM tuner
- Synthesized digital tuning for reliable signal reception
- Up to 40 assignable AM/FM presets
- Multiple station select options including manual up/down, automatic up/down, direct frequency entry
- Automatic Preset Tuning (APT) automatically scans and stores frequencies into presets
- Multifunction LCD display for intuitive control
- Includes AM and FM antennas and stereo RCA cable.
In the Box Toa Electronics DT-930 - Rack-Mountable AM/FM Stereo Tuner AC Adapter FM Antenna AM Loop Antenna 40" (1 m) Stereo RCA Cable 5 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics DT-930 - Rack-Mountable AM FM Stereo Tuner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics DT-930 UL Specs | Power | 120VAC, 60Hz (From AC Adapter) | | Power Consumption | 180mA (When AC Adapter is Used) | | Receiving Frequency | AM: 520 - 11710kHz (10kHz Steps)
FM: 87.9 - 107.9MHz (200kHz Steps) | | Antenna Inputs | AM: Loop Antenna (Balanced), External Antenna (Unbalanced)
FM: 300 ohms (Balanced), 75 ohms (Unbalanced) | | Audio Output | 1 x RCA Stereo Pair, -15dBV, 10 k ohms, Unbalanced
1 x Mono RCA Jack, -15dBV, 10 k ohms, Unbalanced
1 x Mono M3 Screw Terminal, -15dBV, 10 k ohms, Unbalanced | | Channels of Memory | 40 Total Channel Presets for AM and FM | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Dimensions (WxHxD) | 16.5 x 2.1 x 11.6" (420 x 53 x 295mm) | | Weight | 6.2 lbs (2.8 kg) | | | | Package Weight | 9.15 lb | | Box Dimensions (LxWxH) | 17.9 x 17.9 x 3.9" |
