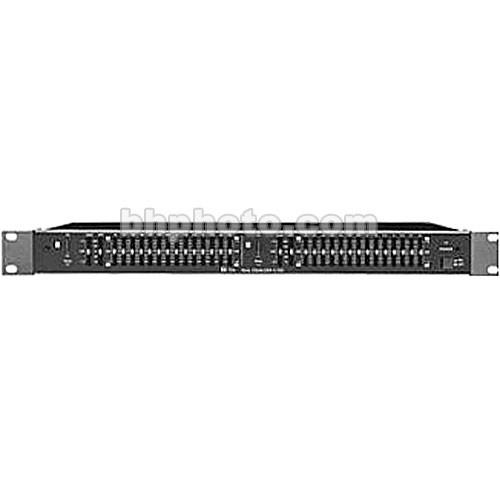

User Manual for Toa Electronics E-232 - Dual Channel, 14-Band per Channel, 2 3 Octave Graphic Equalizer Click to enlarge the picture
Contents of the user manual for the Toa Electronics E-232 - Dual Channel,
- Product category: Equalizers Toa Electronics
- Brand: Toa Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Toa Electronics Equalizers
|
User manual for the Toa Electronics E-232 - Dual Channel, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Toa Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Toa Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Toa Electronics product will considerably shorten its lifespan!
|
Product description The E-232 from Toa Electronics is a dual channel, fourteen band per channel, 2/3 octave active graphic equalizer with either 6dB or 12dB of boost or cut, designed to allow clean, accurate audio equalization for stage, studio, or commercial applications. The unit's filters are designed for minimum phase shift and feature smooth slide controls with center detents for easy and accurate adjustment. The filters are summed in parallel for reliability, so that the failure of one filter does not interrupt operation of the others. In addition, a continuously variable high pass filters is provided on the front panel that has a slope of 12dB per octave and is variable from 15Hz to 300Hz. An automatic EQ bypass function provides complete equalization bypass in the event of loss of AC power and an output muting function suppresses turn on/ turn-off transients. A security cover is included with the E-232 to guard against accidental disturbance, or intentional tampering when used in fixed installations. - Dual channel graphic equalizer with fourteen filters per channel on ISO 2/3 octave center frequencies from 40Hz to 16kHz
- Provides either 12dB or 6dB boost or cut per channel
- Precision calibrated, noiseless slide controls with center detent
- Continuously variable high-pass filter with -12dB/octave slope and variable from 15Hz to 300Hz
- Variable input level control to accommodate a variety of input sources
- Equalizer and filter In/Out switches with automatic EQ bypass circuitry in the event of power failure
- LED peak indicator per channel for displaying clipping at input or output
- Includes security cover to prevent tampering with settings
In the Box Toa Electronics E-232 - Dual Channel, 14-Band per Channel, 2/3 Octave Graphic Equalizer AC Power Cable Security Cover 2 x Screws for Security Cover 4 x Rack Mounting Screws 4 x Rubber Feet Five (5) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics E-232 - Dual Channel, 14-Band per Channel, 2 3 Octave Graphic Equalizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics E-232 Specs | Filter Type | Graphic | | Number of Channels | 2 | | Inputs | Screw terminal | | Outputs | Screw terminal | | Maximum Input Level | Not specified by manufacturer | | Frequency Bands | 2 x 14 | | Bandwidth | 2/3 octave | | Range (Boost/Cut) | +/-6dB or +/-12dB (selectable by internal switches) | | Maximum Output Level | Not specified by manufacturer | | Frequency Response | 20Hz to 20kHz, +1/-2dB | | Dynamic Range | Not specified by manufacturer | | Noise | -98dB | | Dimensions (WxDxH) | 19" x 12 1/4" x 1 3/4" | | Weight | 8.4 lbs | | Specialties | High pass filter with 12dB per octave slope | | | | Package Weight | 13.0 lb | | Box Dimensions (LxWxH) | 23.0 x 19.0 x 4.0" |
