User Manual for Toa Electronics EM-800 Gooseneck Microphone Click to enlarge the picture
Contents of the user manual for the Toa Electronics EM-800 Gooseneck Microphone
- Product category: Gooseneck Microphones Toa Electronics
- Brand: Toa Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Toa Electronics Gooseneck Microphones
|
User manual for the Toa Electronics EM-800 Gooseneck Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Toa Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Toa Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Toa Electronics product will considerably shorten its lifespan!
|

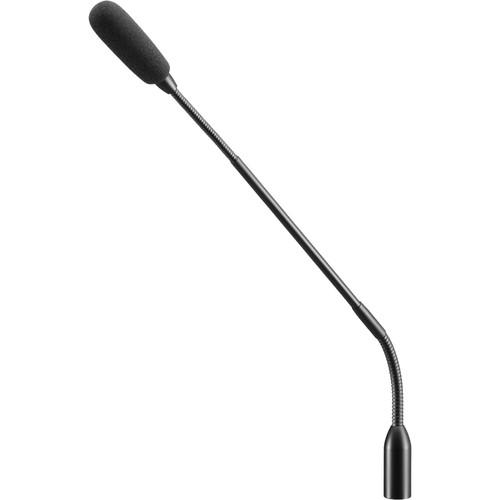

Product description The TOA Electronics EM-800 Gooseneck Microphone is a cardioid electret condenser microphone designed to be placed on desks, tables, and lecterns to record meetings, lectures, religious services and other speaking applications. It features a frequency response from 60 to 20,000 Hz with a sensitivity of -35 dB. It can be powered from between 9 to 52 volts of phantom power and features two points of adjustment for more flexible positioning.
The focused cardioid polar pattern helps reject off-axis sounds to reduce feedback and its flexible gooseneck design is optimal for placement in front of the mouth of the speaker. An optional microphone stand is sold separately. In the Box Toa Electronics EM-800 Gooseneck Microphone Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics EM-800 Gooseneck Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics EM-800 Specs | Element | Electret condenser | | Polar Pattern | Cardioid | | Impedance | 120 Ω balanced | | Sensitivity | -35 dB (1 kHz 0 dB = 1 V/Pa) | | Phantom Power | 9 to 52 VDC | | Frequency Response | 60 to 20,000 Hz | | Output Connector | XLR-3-12 equivalent | | Temperature (Operating) | 32 to 104°F (0 to +40°C) | | Finish | Body, shaft: copper alloy, black semi-gloss, paint | | Dimensions (Ø x L) | 0.47 × 16.54" (12 x 420 mm) | | Weight | 0.30 lb (135 g) | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 21.063 x 1.969 x 1.772" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 67 owners. Add your rating and experience with the product.
