User Manual for Toa Electronics ER-2215W 15W Shoulder-Held Megaphone with Whistle and Detachable Microphone Click to enlarge the picture
Contents of the user manual for the Toa Electronics ER-2215W 15W Shoulder-Held Megaphone
- Product category: Megaphones Toa Electronics
- Brand: Toa Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Toa Electronics Megaphones
|
User manual for the Toa Electronics ER-2215W 15W Shoulder-Held Megaphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Toa Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Toa Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Toa Electronics product will considerably shorten its lifespan!
|

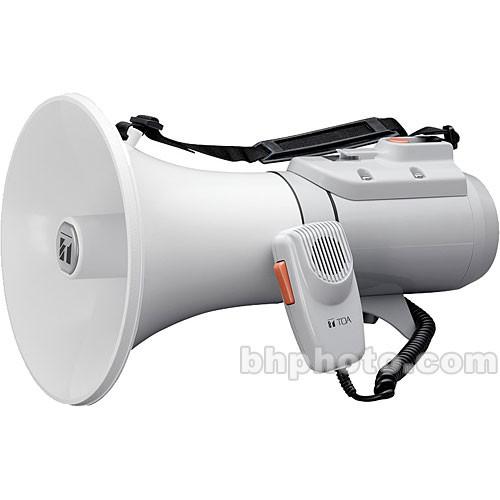

Product description The gray Toa Electronics ER-2215W is a shoulder-held megaphone designed to provide reliable voice amplification for indoor and outdoor public address scenarios. 15W of rated output power provide a maximum range of approximately 1312 feet for voice projection, or up to 1640 feet for the switchable whistle tone. This megaphone incorporates an anti-bacterial treatment to ensure safe usage when passed from person to person. The ER-2215W features a durable ABS resin housing with integrated shoulder support, a convenient carrying strap, and a detachable microphone with a coiled cable. It can be powered by six C batteries (available separately) for up to 9 hours. - 15W rated output power (23W maximum) for voice projection range of approximately 1312' (up to 1640' for whistle tone)
- Selectable whistle tone generates a signal from 1.6 to 2.4 kHz
- Durable ABS resin construction
- Anti-bacterial treatment to cope with multi-user environments
- Polyimide diaphragm for improved speaker performance
- Up to 9 hours of operating time via six C batteries (available separately)
- Detachable microphone with coiled cable
- Convenient shoulder support and carrying strap
- Supports mounting to optional ST-16A speaker stand
In the Box Toa Electronics ER-2215W 15W Shoulder-Held Megaphone with Whistle and Detachable Microphone (Gray) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics ER-2215W 15W Shoulder-Held Megaphone with Whistle and Detachable Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics ER-2215 Specs | Power Output | Rated: 15 W
Maximum: 23 W | | Range | Voice: Approximately 1312.3' / 400 m
Whistle: Approximately 1640.4' / 500 m | | Construction Material | Horn, Body, and Microphone: ABS Resin
Diaphragm: Polyimide Film
Strap: Nylon | | Operating Temperature | 14 to 104°F / -10 to 40°C | | Battery Life | Voice: Approximately 9 Hours
Whistle: Approximately 20 Minutes | | Power Requirement | 6 x C Batteries | | Dimensions (Diam. x L) | 8.3 x 13.2" / 21.0 x 33.6 cm | | Weight | Body: 2.4 lb / 1.1 kg (Excluding Batteries and Microphone)
Microphone: 5.3 oz / 150 g | | | | Package Weight | 3.6 lb | | Box Dimensions (LxWxH) | 14.2 x 8.9 x 8.6" |
