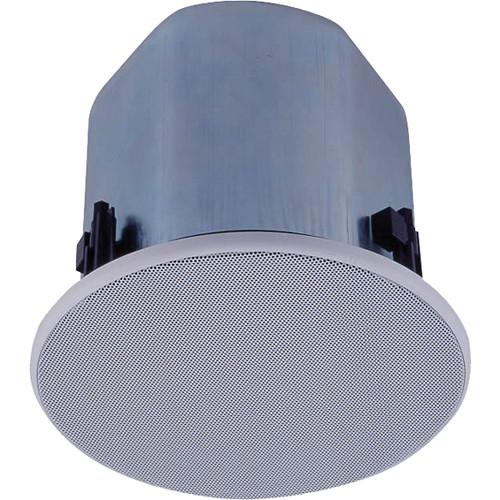

Product description The F-2322CU1 Ceiling Speaker with Tile Bridge from TOA Electronics is a 30W speaker from the F-series of drop tile ceiling speakers. It covers a wide area and ensures uniform sound distribution in 25, 70, and 100V line applications. This speaker includes a tile bridge, and is UL listed. In the Box Toa Electronics F-2322CU1 Ceiling Speaker with Tile Bridge Tile Bridge Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics F-2322CU1 Ceiling Speaker with Tile Bridge in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics F-2322CU1 Specs | Enclosure Type | Bass reflex | | Rated Input | 30 W (high impedance) | | Power Handling | Continuous Pink Noise: 60 W (8 ohms), 30 W (16 ohms)
Continuous Program: 120 W (8 ohms), 60 W (16 ohms) | | Impedance | 100 V Line: 330 ohms (30 W), 1 kOhm (10 W), 3.3 kOhms (3 W), 10 kOhms (1 W)
70 V Line: 170 ohms (30 W), 330 ohms (15 W), 1 kOhm (5 W), 3.3 k0hms (1.5 W), 10 kOhms (0.5 W)
25 V Line: 170 ohms (3.7 W), 330 ohms (1.9 W), 1 kOhm (0.6 W), 3.3 kOhms (0.2 W), 10 kOhms (0.06 W) 16 ohms, 8 ohms | | SPL | 90 dB @ 1 W, 3.3' (1 m) | | Frequency Response | 70 Hz - 20 kHz (-10 dB), 50 Hz - 20 kHz (-20 dB) when installed in a half-free sound field (measured by installing the unit in the center of a ceiling) | | Speaker Component | 4.7" (12 cm) cone type | | Mounting Hole | Hole Diameter: 7.9" (200 mm)
Maximum Ceiling Thickness: 1.5" (37 mm) | | Input Terminal | Removable locking connector with screw-down terminals (2 x input, 2 x bridge) | | Compatible Cables | Solid Copper Wire ø: 0.02 - 0.06" (0.5 - 1.6 mm), equivalent to AWG No. 24 - 14
Stranded Copper Wire: 0.01 - 0.10 in² (0.2 - 2.5 mm²), equivalent to AWG No. 24 - 14 | | Finish | Enclosure: Steel plate, plating
Baffle: Fire-resistant ABS resin, black (resin material grade UL-94 V-0)
Rim: Fire-resistant ABS resin, white paint (resin material grade UL-94 V-0)
Punched Net: Steel plate, white paint | | Dimensions (Ø x D) | 9.1 x 7.9" (23 x 20 cm) | | Weight | 8.2 lb (3.7 kg), including mounting hardware |
