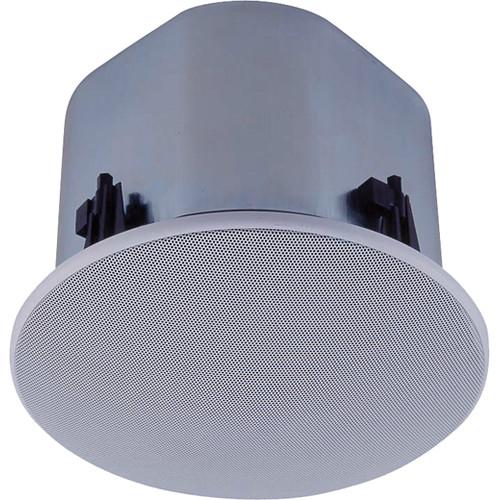

User Manual for Toa Electronics F-2852CU2 6.5" 2-Way Coaxial Ceiling Speaker Click to enlarge the picture
Contents of the user manual for the Toa Electronics F-2852CU2 6.5" 2-Way Coaxial
- Product category: Installed Speakers Toa Electronics
- Brand: Toa Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Toa Electronics Installed Speakers
|
User manual for the Toa Electronics F-2852CU2 6.5" 2-Way Coaxial contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Toa Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Toa Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Toa Electronics product will considerably shorten its lifespan!
|
Product description The F-2852CU2 6.5" 2-Way Coaxial Ceiling Speaker from Toa Electronics is a 6.5", 2-way, co-axial speaker suitable for music and paging applications such as audio/visual, business, music, or retail sound systems. The speaker has a frequency response of 60 Hz to 20 kHz with a rated input of 60 watts, and a power handling capacity of 90 watts. Key benefits include smoother off-axis coverage and relative ease of installation.
The 2852C is suited for high ceiling installation and features a ported bass-reflex design. It's outfitted with a sound diffuser paired with its built-in co-axial tweeter for improved, open, high-end frequency response. Also included are: an integral backcan with safety cable, quick-mount hardware, and removable Phoenix-style connectors with loop-through points for connecting adjacent speakers. Additionally, the speaker features a built-in, multi-tap transformer, as well as both 8 and 16 ohm direct modes, a front baffle power tap selector, and double-locking paintable grilles. Furthermore, built-in overload protection circuitry improves speaker reliability and helps ensure component longevity.
- Suitable for high ceiling installation
- Wide dispersion, and smooth off-axis coverage
- Simplified, easier installation
- Built-in 25 / 70.7V multi-tap transformer
- Low Impedance Mode (8 / 16 Ohms)
- Convenient power tap selector on front baffle
- Integral metal back-can and safety cable
- Low-profile, paintable grille
- Overload protection circuitry
- Mounting hardware included
In the Box Toa Electronics F-2852CU2 6.5" 2-Way Coaxial Ceiling Speaker Mounting Hardware Kit Tile Bridge Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics F-2852CU2 6.5" 2-Way Coaxial Ceiling Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics F-2852CU2 Specs | Speaker Type | Co-axial with dome-type tweeter | | Speaker Size | 6.5" Woofer | | Enclosure | Bass reflex type | | Rated Input | 60 W (high impedance) | | Power Capacity | Continuous pink noise: 90 W (8 ohms), 60 W (16 ohms)
Continuous program: 180 W (8 ohms), 120 W (16 ohms) | | Frequency Response | 60 Hz to 20 kHz (-10 dB)
45 Hz to 20 kHz (-20 dB) | | Impedance | 8 and 16 ohms | | Power Taps | 70 V Line:
83 ohms (60 W), 170 ohms (30 W), 330 ohms (15 W), 670 ohms (7.5 W), 3.3 kOhms (1.5 W)
25 V Line:
83 ohms (7.5 W), 170 ohms (3.7 W), 330 ohms (1.9 W), 670 ohms (0.9 W), 3.3 kOhms (0.2 W) | | Maximum Sound Pressure Level (SPL) | 91 dB (1 W / 1 m) | | Mounting Hole | 9.8" (250 mm) (maximum ceiling thickness: 1.5" [37 mm]) | | Input Terminal | Removable locking connector with screw-down terminals
2 input terminals and 2 bridge terminals) | | Compatible Cables | Solid copper wire: 0.5 to 1.6 mm, equivalent to AWG No. 24 - 14
Stranded copper wire: 0.2 to 2.5 mm, equivalent to AWG No. 24 - 14 | | Finish/Material | Enclosure: Steel plate, plating
Baffle: Fire-resistant ABS resin (resin material grade: UL-94 V-0), black
Rim: Fire-resistant ABS resin (resin material grade: UL-94 V-0), white, paint
Punched net: Steel plate, white, paint | | Dimensions (Diam. x Depth) | 11.02 x 9.3" (280 x 236 mm) | | Weight | 11.2 lb (5.1 kg) | | | | Package Weight | 17.6 lb | | Box Dimensions (LxWxH) | 14.567 x 14.173 x 14.173" |
