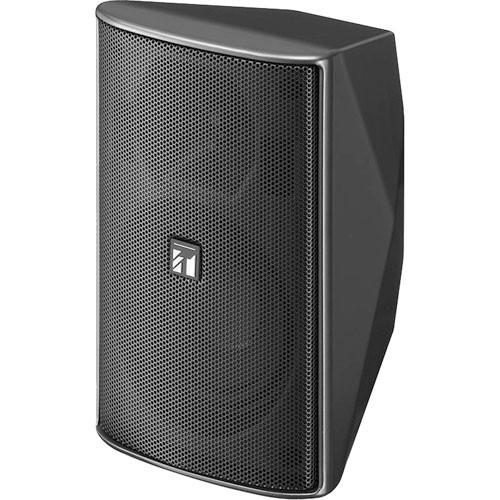

Product description TOA Electronic's F1000BTWP Weather Proof Wide Dispersion Box Speaker with Transformer in black is the latest addition to a critically acclaimed series of speakers. The F1000BTWP is a high efficiency, two-way speaker that was designed to achieve higher performance levels for a wide range of frequency response and power handling. This particular model includes a built-in 70/100V transformer with screwdriver adjustable power taps for ultimate convenience. It is also weather proof, having achieved an IP-X4 splash-proof rating, so it's an excellent indoor/outdoor speaker.The octagonal horn design provides smooth coverage while the extruded cabinet design gives you an improved low frequency performance. You also get an individual protection circuit on each component so you get the best performance each and every time without worrying about the integrity of the entire system.This black speaker was designed with a stylish edge and blends easily into your room's decor. The side bulge creates a graceful, sleek look but also is part of a rigidity-enhancing casing construction which further protects your product and improves clear sound reproduction. To make the F1000BTWP even more versatile TOA has included a wall/ceiling mounting bracket but has also designed a number of accessory brackets for challenging and unusual mounting situations. - Two-Way
- This two-way speaker combines a 4" woofer and a balanced dome tweeter to produce 15W of uniform sound with a well-controlled dispersion pattern.
- Overload Protection
- Built-in individual protection circuit on each component maintains the integrity of your equipment and ensures longevity.
- Durable Enclosure
- Made of low-foam polypropylene resin, this enclosure is both durable and acoustically efficient. In addition, if you find that your venue aesthetic changes, the entire enclosure (including grille) can be painted.
- Built-In Transformer
- The F1000BTWP model features in a built-in 70/100V transformer with easily accessible power taps.
- Weather Proof
- This model meets the IP-X4 splash proof ratings guidelines and therefore is an excellent sound option for either indoor or outdoor venues.
In the Box Toa Electronics F1000BTWP Weather Proof Wide Dispersion Box Speaker with Transformer (Black) Speaker Bracket Joint Bracket Wall Bracket Bracket Fixing Screw Terminal Cover 4 x Terminal Cover Mounting Screw 5-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics F1000BTWP Weather Proof Wide Dispersion Box Speaker with Transformer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics F-1000BTWP Specs | Active or Passive | Passive | | Frequency Response | 85 Hz - 20 kHz | | Power Capacity | 15W (Continuous Program) | | Maximum Sound Pressure Level (SPL) | 87 dB | | Nominal Sensitivity | 87 dB | | Impedance | 100V: 15W/670 ohm, 5W/2 kohm, 3W/3.3 kohm, 1W/10 kohm
70V: 15W/330 ohm, 7.5W/670 ohm, 2.5W/2 kohm, 1.5W/3.3 kohm, 0.5W/10 kohm | | Crossover | 5 kHz | | Shielded | Not Specified by Manufacturer | | Low Frequency Driver | 4" Cone Woofer | | High Frequency Driver | Balanced Dome Tweeter | | Enclosure Material | Polypropylene Resin | | Input Connections | Push-In Terminals | | Environmental | Outdoor, IP-X4 rated | | Dimensions (WxHxD) | 5.12 x 7.95 x 5.16" (13 x 20.2 x 13.1cm) | | Weight | 4.41 lbs (2 kg) | | Specialties | Weatherproof and Built-In Transformer | | | | Package Weight | 5.95 lb | | Box Dimensions (LxWxH) | 9.45 x 8.66 x 6.69" |
