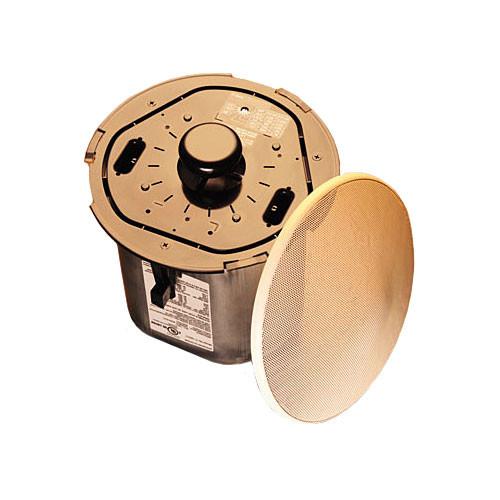

User Manual for Toa Electronics F122CU2 5" Full-Range 30W Ceiling Speaker Click to enlarge the picture
Contents of the user manual for the Toa Electronics F122CU2 5" Full-Range 30W
- Product category: Installed Speakers Toa Electronics
- Brand: Toa Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Toa Electronics Installed Speakers
|
User manual for the Toa Electronics F122CU2 5" Full-Range 30W contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Toa Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Toa Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Toa Electronics product will considerably shorten its lifespan!
|
Product description TOA Electronic's F122CU2 5" Full-Range 30W Ceiling Speaker is a powerful top quality speaker, which features excellent sound quality and wide-dispersion for music and paging applications.This model represents an update in the TOA F-series and includes a tile bridge for even easier mounting. The F122CU2 has a full-range 5" driver that is UL-Listed for Fire Protective, General Purpose Signaling, and Air-Handling Spaces. The low-profile, paintable grille will fit in with any decor. Overload protection circuitry ensures the speaker's continued durability. With a safety cable and a 5-year manufacturer warranty, you can be assured of this speaker's quality and reliability. - Mounting Bracket Included
- To improve the ease with which the speaker is installed, a tile bridge is now included.
- Wide-Dispersion High Sound Quality
- Ideal for places where superb sound quality is needed over a wide area, this speaker can be used at airports, offices, restaurants, museums, schools, theaters, retail stores, and more.
- Safety Cable
- This speaker includes a safety cable to prevent accidents and ensure your peace of mind.
- UL-Listed
- This speaker is UL-Listed for Fire Protective, General Purpose Signaling, and Air-Handling Spaces.
- Overload Protection
- The built-in overload protection circuitry ensures the longevity and reliability of this speaker.
In the Box Toa Electronics F122CU2 5" Full-Range 30W Ceiling Speaker Front Grille Tile Bridge Safety Wire Paper Pattern 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics F122CU2 5" Full-Range 30W Ceiling Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics F-122CU2 Specs | Active or Passive | Passive | | Frequency Response | 70 Hz - 20 kHz | | Power Capacity | 120W Continuous | | Maximum Sound Pressure Level (SPL) | 90 dB | | Nominal Sensitivity | 90 dB | | Impedance | 70V: 30W/170 ohms, 15W/330 ohms, 5W/1 kohms, 1.5W/3.3 kohms,0.5W/10 kohms
25V: 3.7W/170 ohms, 1.9W/330 ohms, 0.6W/1 kohms, 0.2W/3.3 kohms, 0.06W/10 kohms | | Crossover | Not Specified by Manufacturer | | Shielded | No | | Low Frequency Driver | 5" Full-Range Driver | | High Frequency Driver | 5" Cone | | Enclosure Material | Steel | | Input Connections | Input Terminals: x2
Bridge Terminals: x2
Screw Down Terminals | | Environmental | Indoors | | Dimensions | Diameter x Depth: 9.1 x 9.2" (23 x 24 cm) | | Weight | 9.7 lbs (4.4 kg) | | Specialties | Mounting Tile Brackets Included | | | | Package Weight | 14.0 lb | | Box Dimensions (LxWxH) | 13.15 x 12.047 x 12.047" |
