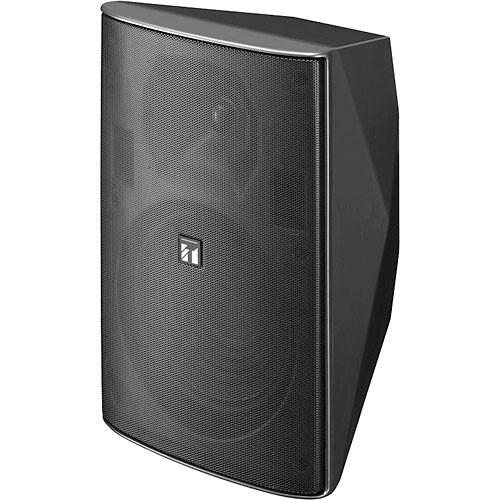

Product description TOA Electronic's F2000BTWP Weather Proof Wide Dispersion Box Speaker with Transformer in black is the latest addition to a critically acclaimed series of speakers. The F2000BTWP is a high efficiency, two-way speaker that was designed to achieve higher performance levels for a wide range of frequency response and power handling. The octagonal horn design provides smooth coverage over a 110 x 100° area but an included horn adapter lets you adjust the dispersion area to a more focused 80 x 80° zone. The 8" cone woofer and extruded cabinet design gives you an improved low frequency performance. You also get an individual protection circuit on each component so you get the best performance each and every time without worrying about the integrity of the entire system.This particular model includes a built-in 70/100V transformer with screwdriver adjustable power taps for ultimate convenience. It is also weather proof, having achieved an IP-X4 splash-proof rating, so it's an excellent indoor/outdoor speaker.This black speaker was designed with a stylish edge and blends easily into your room's decor. The side bulge is creates a graceful, sleek look but also is part of a rigidity-enhancing casing construction which further protects your product and improves clear sound reproduction. To make the F2000BTWP even more versatile TOA has included a wall/ceiling mounting bracket but has also designed a number of accessory brackets for challenging and unusual mounting situations. - Two-Way
- This two-way speaker combines an 8" woofer and a 1" hard domed tweeter to produce 60W of uniform sound.
- Adjustable Horn
- The standard octagon horn on the F2000BTWP produces 110 x 100° dispersion but with the included horn adapter you get a more narrow 80 x 80° dispersion.
- Overload Protection
- Built-in individual protection circuit on each component maintains the integrity of your equipment and ensures longevity.
- Durable Enclosure
- Made of low-foam polypropylene resin, this enclosure is both durable and acoustically efficient. In addition, if you find that your venue aesthetic changes, the entire enclosure (including grille) can be painted.
- Built-In Transformer
- The F2000BTWP model features in a built-in 70/100V transformer with easily accessible power taps.
- Weather Proof
- This model meets the IP-X4 splash proof ratings guidelines and therefore is an excellent sound option for either indoor or outdoor venues.
In the Box Toa Electronics F2000BTWP Weather Proof Wide Dispersion Box Speaker with Transformer (Black) Speaker Bracket Joint Bracket Bracket Fixing Screw Horn Adapter 4 x Horn Adapter Mounting Screw Wall Bracket Terminal Cover 4 x Terminal Cover Mounting Screw 5-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics F2000BTWP Weather Proof Wide Dispersion Box Speaker with Transformer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics F-2000BTWP Specs | Active or Passive | Passive | | Frequency Response | 65 Hz - 20 kHz | | Power Capacity | 60W (Continuous Program) | | Maximum Sound Pressure Level (SPL) | 93 dB | | Nominal Sensitivity | 92 dB | | Impedance | 100V: 15W/670 ohm, 5W/2 kohm, 3W/3.3 kohm, 1W/10 kohm
70V: 15W/330 ohm, 7.5W/670 ohm, 2.5W/2 kohm, 1.5W/3.3 kohm, 0.5W/10 kohm | | Crossover | 2.5 kHz | | Shielded | Not Specified by Manufacturer | | Low Frequency Driver | 8" Cone Woofer | | High Frequency Driver | 1" Hard Dome Tweeter | | Enclosure Material | Polypropylene Resin | | Input Connections | Push-In Terminals | | Environmental | Outdoor, IP-X4 rated | | Dimensions (WxHxD) | 9.61 x 14.69 x 9.25" (24.4 x 37.3 x 23.5cm) | | Weight | 4.41 lbs (2 kg) | | Specialties | Built-In Transformer and Weather Proof | | | | Package Weight | 20.28 lb | | Box Dimensions (LxWxH) | 16.73 x 14.57 x 11.61" |
