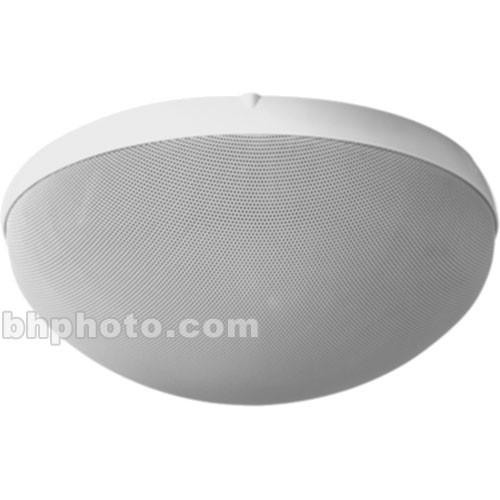

User Manual for Toa Electronics H2 H-Series 2-Way Wall Ceiling Speaker Click to enlarge the picture
Contents of the user manual for the Toa Electronics H2 H-Series 2-Way Wall
- Product category: Installed Speakers Toa Electronics
- Brand: Toa Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Toa Electronics Installed Speakers
|
User manual for the Toa Electronics H2 H-Series 2-Way Wall contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Toa Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Toa Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Toa Electronics product will considerably shorten its lifespan!
|
Product description TOA Electronic's H2 H-Series 2-Way Wall/Ceiling Speaker is a stylish speaker meant to provide an alternative to traditional wall- and ceiling-mount speakers. For use in a variety of facilities, the H2 is a powerful 2-way speaker uniquely designed to minimize soundwave reflection for superior sound as compared to conventional box-type speakers. Fast and easy to mount with the included supplies, the H2 also features overload protection and a three-year warranty so you can be confident of its quality and reliability. - Stylish Appearance
- Blending well with modern design, this speaker has a paintable grill so it can fit the architecture and ambience of your facility.
- Minimum Reflective Design
- Conventional bracket mounted box-type speakers produce poor-quality sound because of sound wave reflection. The H-Series speakers are designed to minimize this effect.
- Rotating Loudspeakers
- You can aim the speakers for optimal exposure in your facility without changing the external appearance of the enclosure.
- Overload Protection
- Built-in overload protection ensures the continued reliability of this speaker because it is protected from excessive power input.
- Easy Installation
- With the included mounting hardware, installing this speaker is fast and easy.
- Removable Terminal Block
- This speaker accepts up to AWG #14 wire for distributed speaker systems.
In the Box Toa Electronics H2 H-Series 2-Way Wall/Ceiling Speaker Mounting Screws Base Plate 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics H2 H-Series 2-Way Wall Ceiling Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics H-2 EX Specs | Active or Passive | Passive | | Frequency Response | 100Hz-20kHz | | Power Capacity | Continuous Program: 120W (4 ohms)
Continuous Pink Noise: 40W (4 ohms) | | Maximum Sound Pressure Level (SPL) | 85 dB (1 W, 1 m) | | Nominal Sensitivity | 85 dB | | Impedance | Direct: 4 ohms
70.7V line: 12W (420 ohms)
100V line: 12W (830 ohms) | | Crossover | 5kHz | | Shielded | Not Specified By Manufacturer | | Low Frequency Driver | 4" Cone Woofer | | High Frequency Driver | 1" Balanced-Dome Tweeter | | Enclosure Material | Steel and ABS Resin | | Input Connections | Removable Terminal Block w/Screw Terminals, 2 Pairs of +/- | | Environmental | Not Specified By Manufacturer | | Dimensions | 10.5 x 4.4" (268 x 111mm) | | Weight | 4.6 lbs (2.1 kg) | | Specialties | Not Specified By Manufacturer | | | | Package Weight | 6.45 lb | | Box Dimensions (LxWxH) | 12.9 x 12.9 x 11.2" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 17 owners. Add your rating and experience with the product.
