User Manual for Toa Electronics HB-1 240W Flush-Mount Subwoofer Click to enlarge the picture
Contents of the user manual for the Toa Electronics HB-1 240W Flush-Mount Subwoofer
- Product category: Installed Speakers Toa Electronics
- Brand: Toa Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Toa Electronics Installed Speakers
|
User manual for the Toa Electronics HB-1 240W Flush-Mount Subwoofer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Toa Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Toa Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Toa Electronics product will considerably shorten its lifespan!
|

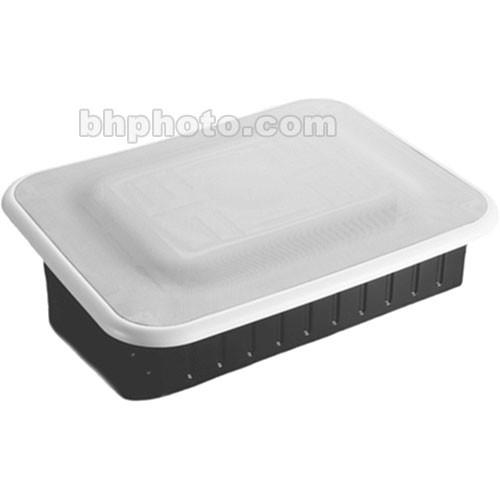

Product description TOA Electronic's HB-1 240W Flush-Mount Subwoofer is an ideal high-power subwoofer for commercial, retail, or residential low-frequency sound enhancement. Designed for high-performance versatility, the FB-100 has a specially designed enclosure to magnify deep bass with low distortion. The heavy-duty 8" cone woofer loudspeaker is protected by a vibration-free steel enclosure that dissipates heat. The minimum-depth design of the HB-1 make it ideal for discreet flush-mounting in ceilings or walls. Other features include high sensitivity and power handling. If the finish doesn't suit your decor, the grille is easily paintable. This subwoofer comes with a five-year warranty. - Heavy-Duty Loudspeaker
- Powerful and reliable, the 8" (20 cm) woofer/magnet loudspeaker is surrounded by rubber for protection.
- Minimum-Depth Design
- The minimum-depth design of the HB-1 allows it to be discreetly flush-mounted in ceiling structures or in walls between studs that are spaced on 16" centers.
- Solid Steel Enclosure
- The vibration-free steel enclosure of the HB-1 also acts as a heat-sink to draw away excess heat from the speaker component.
- Paintable Grille
- The grille can be easily repainted to stand out or blend in with any surrounding.
- Smart Design
- Designed to eliminate the need for an external crossover, this subwoofer has a tuned, ported enclosure with an acoustic bandpass filter design.
In the Box Toa Electronics HB-1 240W Flush-Mount Subwoofer Mounting Bracket Grille Mounting Screws 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics HB-1 240W Flush-Mount Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics HB-1 Specs | Driver | 8" (20 cm) Cone Woofer with Ferrite Magnet | | Crossover | Not Specified by Manufacturer | | Frequency Range | 45 - 200 Hz | | Impedance | 8 ohms | | Maximum Power Handling | Continuous Program: 240W
Continuous Pink Noise: 80W | | Maximum Sound Pressure Level (SPL) | 91 dB SPL 1W/1m | | Controls and Indicators | None | | Connectors | +/- Input Connector -x2 | | Shielded | No | | Enclosure Material | Steel Plate | | Dimensions | 16.9 x 21.4 x 5.3" (430 x 544 x 135mm) | | Weight | 24.3 lbs (11 kg) | | | | Package Weight | 30.2 lb | | Box Dimensions (LxWxH) | 24.02 x 19.29 x 10.43" |
