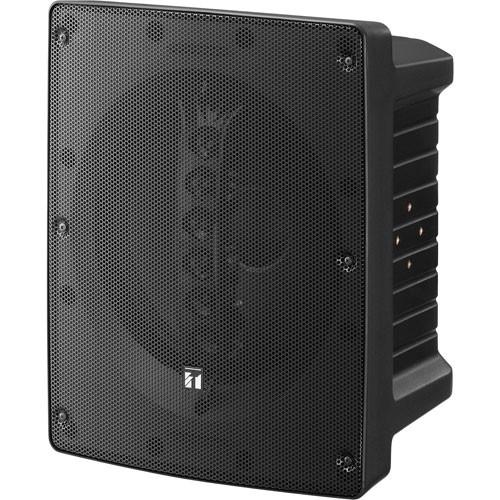

User Manual for Toa Electronics HS-1200B Coaxial Array Speaker Click to enlarge the picture
Contents of the user manual for the Toa Electronics HS-1200B Coaxial Array Speaker
- Product category: Installed Speakers Toa Electronics
- Brand: Toa Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Toa Electronics Installed Speakers
|
User manual for the Toa Electronics HS-1200B Coaxial Array Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Toa Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Toa Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Toa Electronics product will considerably shorten its lifespan!
|
Product description The HS-1200B Coaxial Array Speaker (Black) from Toa Electronics is designed to provide high-end performance in restaurants, retail locations, conference rooms, lecture halls, schools, sports facilities, and houses of worship, among other similar settings and applications. It sports a two-way bass-reflex design with a polypropylene enclosure. The unit houses a 12" low-frequency driver and a coaxial tweeter array incorporating (6) balanced dome tweeters.
It provides 90° horizontal and 40° vertical narrow-directive control. It also includes built-in overload protection circuitry for its tweeters. A lift handle and rubber feet make it easy to transport or adjust the position of the speaker. Its light weight and wedge-shaped design also make it suitable for use as a floor monitor. Separately available wall- and ceiling-mount brackets are available for this unit. - Design
- This speaker includes a low-frequency woofer and an array of coaxial dome tweeters.
- Construction
- Polypropylene construction, a lift handle, and rubber feet contribute to the unit's ease of use and durability.
- Mounting
- It can be mounted to a wall or ceiling using separately available mounting brackets.
In the Box Toa Electronics HS-1200B Coaxial Array Speaker (Black) Speaker One-Year Warranty Against Defects in Materials & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics HS-1200B Coaxial Array Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics HS-1200B Specs | Frequency Response | Not specified by manufacturer | | Active or Passive | Not specified by manufacturer | | Power Capacity | 300W (continuous PGM, 8 Ohms)
100W (pink noise, 8 Ohms)
70V selectable: 60, 30, 15, 7.5W
100V selectable: 60, 30, 15W | | Maximum Sound Pressure Level (SPL) | 97dB | | Nominal Sensitivity | Not specified by manufacturer | | Impedance | 8 Ohms | | Crossover | 3KHz | | Low Frequency Driver | 12" cone woofer | | High Frequency Driver | Coaxial tweeter array incorporating six balanced dome tweeters | | Enclosure Material | Polypropylene | | Dimensions (HxWxD) | 17.6 x 14.2 x 12.6" | | Weight | Not specified by manufacturer | | | | Package Weight | 32.0 lb | | Box Dimensions (LxWxH) | 21.0 x 17.0 x 15.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 46 owners. Add your rating and experience with the product.
