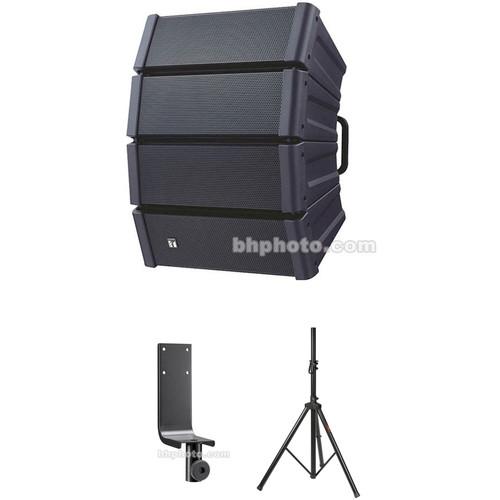

Product description The Toa Electronics HX-5B Variable Dispersion Array Speaker with Stand Kit from includes a black HX-5B variable-dispersion array speaker system, an Auray SS-4420 steel speaker stand, and an HY-ST1 adapter for mounting the speaker to the stand. The speaker features a modular design with four adjustable dispersion angles, which allows for variable directivity control and low-frequency dispersion control, and provides optimum coverage in spaces with problematic acoustics including auditoriums, houses of worship, banquet halls, community centers, boardrooms, gyms, and other medium-sized environments.
The HX-5B is configured with four, vertically stacked, trapezoidal bass-reflex enclosures, for a total of four woofers and 12 tweeters positioned along the baffle surface. It is capable of handling 600W of continuous power. The SS-4420 stand can support speakers weighing up to 100 lb and features a telescoping center column with five height adjustments ranging from 46 to 76". The tripod legs quickly fold for easy transport. - Toa Electronics HX-5B Variable Dispersion Line Array Speaker (Black) The TOA HX-5B Variable Dispersion Line Array Speaker gives you a new approach to speaker design. TOA approached the challenge of pattern control with four adjustable dispersion angles. Within seconds you can adjust between 60, 45, 30 and 15° and all with pattern control below 1 kHz. With 600W of continuous power you have high power handling in a durable, lightweight package. This particular model is black to best match your working environment and blend into the background. You can even increase its functionality by mounting your speakers vertically or horizontally with the built-in bracket, or purchase the optional wall or ceiling mount for even more versatility.
And for the piece de resistance, this particular model is weather resistant, so if outdoor venues are your forte, this is really the speaker system for you. - Ideal for auditoriums, houses of worship, and gymnasiums and more
- Adjustable dispersion angle to 60, 45, 30, or 15°
- Improved intelligibility through tailored coverage
- Compact design includes four preassembled modules with four LF drivers and twelve HF dome tweeters
- Inline driver arrangement for superior vertical coverage control
- Horizontal coverage remains broad through speech range: 100 deg. fixed
- Contoured waveguide-baffle for distortion-free coverage control
- High power handling: 600W cont. (200W, 24 hr. pink noise)
- High sensitivity: up to 99 dB, 1 watt @ 1 meter (500 to 5,000 Hz)
- Stack up to four units for improved coverage control
- Lightweight polypropylene construction
- Available in black and white
- Weather-resistant versions
- Parallel connectors - dual SpeakON and screw terminal
- Vertical or horizontal mounting
- Built-in surface-mount bracket
- Hardware included for flying / suspension
- Optional wall, ceiling and stand-mount hardware
- Optional bracket for joining multiples into one array
- Compatible with Omnimount 60 Series mounting hardware
- Optional subwoofer, model FB-120
- Optional 70 volt transformer, model MT-200
- Toa Electronics HY-ST1 - Stand Adapter for HX-5 Series The HY-ST1 from TOA Electronics is a speaker stand adapter for use with HX-5 series speakers.
- Musicians Value C3 Series CS-SS3 Steel Speaker Stand (Single) This single Musicians Value C3 Series CS-SS3 Steel Speaker Stand is well suited for light-duty work in bars, clubs, hotels, houses of worship, and other venues where small PA systems are typically used. The stand fits speakers with standard 35mm sockets. Its height is adjustable from 50 to 75" and a metal pin keeps the shaft safely in place during use. The CS-SS3's steel construction and 54" tripod base provide a robust and stable support for your speaker. The stand easily folds for convenient transport and storage. UPC: 784887179744
In the Box - HX-5B Variable Dispersion Line Array Speaker (Black) sqqrwvqevdwu
- 2 x Hanging Bracket
- Hex Wrench
- Product Instructions
- 5-Year Warranty
- HY-ST1 - Stand Adapter for HX-5 Series
- Musicians Value - C3 Series CS-SS3 Steel Speaker Stand (Single)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics HX-5B Variable Dispersion Array Speaker with Stand Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Toa Electronics HX-5B Variable Dispersion Line Array Speaker (Black)
| | | Configuration | Passive 2-Way | | Enclosure Type | Bass-Reflex Line Array | | Total Power Capacity | 600 W | | System Impedance | 8 Ohms | | | | HF Driver | 12 x Dome | | LF Driver | 4 x 4.72" / 12 cm Woofer | | | | Frequency Response | 70 Hz to 20 kHz -10 dB When set to 60
