Product description

• Toa Electronics HX-5W Variable Dispersion Line Array Speaker (White) The TOA HX-5W Variable Dispersion Line Array Speaker gives you a new approach to speaker design. TOA approached the challenge of pattern control with four adjustable dispersion angles. Within seconds you can adjust between 60, 45, 30 and 15° and all with pattern control below 1 kHz. With 600W of continuous power you have high power handling in a durable, lightweight package. This particular model is black to best match your working environment and blend into the background. You can even increase its functionality by mounting your speakers vertically or horizontally with the built-in bracket, or purchase the optional wall or ceiling mount for even more versatility.

  And for the piece de resistance, this particular model is weather resistant, so if outdoor venues are your forte, this is really the speaker system for you.
  • Ideal for auditoriums, houses of worship, and gymnasiums and more
  • Adjustable dispersion angle to 60, 45, 30, or 15°
  • Improved intelligibility through tailored coverage
  • Compact design includes four preassembled modules with four LF drivers and twelve HF dome tweeters
  • Inline driver arrangement for superior vertical coverage control
  • Horizontal coverage remains broad through speech range: 100 deg. fixed
  • Contoured waveguide-baffle for distortion-free coverage control
  • High power handling: 600W cont. (200W, 24 hr. pink noise)
  • High sensitivity: up to 99 dB, 1 watt @ 1 meter (500 to 5,000 Hz)
  • Stack up to four units for improved coverage control
  • Lightweight polypropylene construction
  • Available in black and white
  • Weather-resistant versions
  • Parallel connectors - dual SpeakON and screw terminal
  • Vertical or horizontal mounting
  • Built-in surface-mount bracket
  • Hardware included for flying / suspension
  • Optional wall, ceiling and stand-mount hardware
  • Optional bracket for joining multiples into one array
  • Compatible with Omnimount 60 Series mounting hardware
  • Optional subwoofer, model FB-120
  • Optional 70 volt transformer, model MT-200
  • Five year warranty
• Toa Electronics HY-ST1 - Stand Adapter for HX-5 Series The HY-ST1 from TOA Electronics is a speaker stand adapter for use with HX-5 series speakers.
• Musicians Value C3 Series CS-SS3 Steel Speaker Stand (Single) This single Musicians Value C3 Series CS-SS3 Steel Speaker Stand is well suited for light-duty work in bars, clubs, hotels, houses of worship, and other venues where small PA systems are typically used. The stand fits speakers with standard 35mm sockets. Its height is adjustable from 50 to 75" and a metal pin keeps the shaft safely in place during use. The CS-SS3's steel construction and 54" tripod base provide a robust and stable support for your speaker. The stand easily folds for convenient transport and storage. UPC: 784887179744

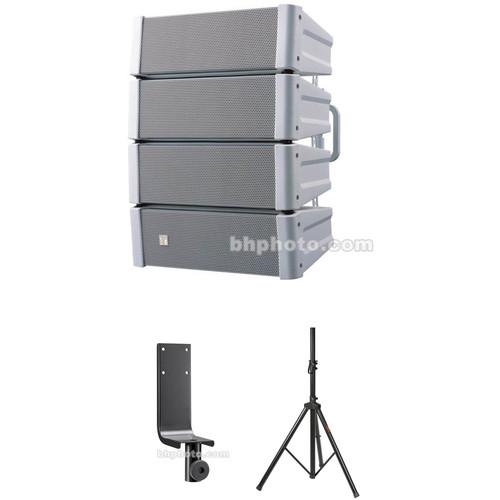

• HX-5W Variable Dispersion Line Array Speaker (White) wqcdrtcq
• 2 x Hanging Bracket
• Hex Wrench
• Product Instructions
• 5-Year Warranty

• HY-ST1 - Stand Adapter for HX-5 Series

• Musicians Value - C3 Series CS-SS3 Steel Speaker Stand (Single)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Toa Electronics HX-5W Variable Dispersion Line Array Speaker (White)

  Configuration	Passive 2-Way
  Enclosure Type	Bass-Reflex Line Array
  Total Power Capacity	600 W
  System Impedance	8 Ohms

  HF Driver	12 x Dome
  LF Driver	4 x 4.72" / 12 cm Woofer

  Frequency Response

  70 Hz to 20 kHz -10 dB When set to 60 Rating 50% users recommend this product to others. And what about you? This product has already been rated by 10 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
