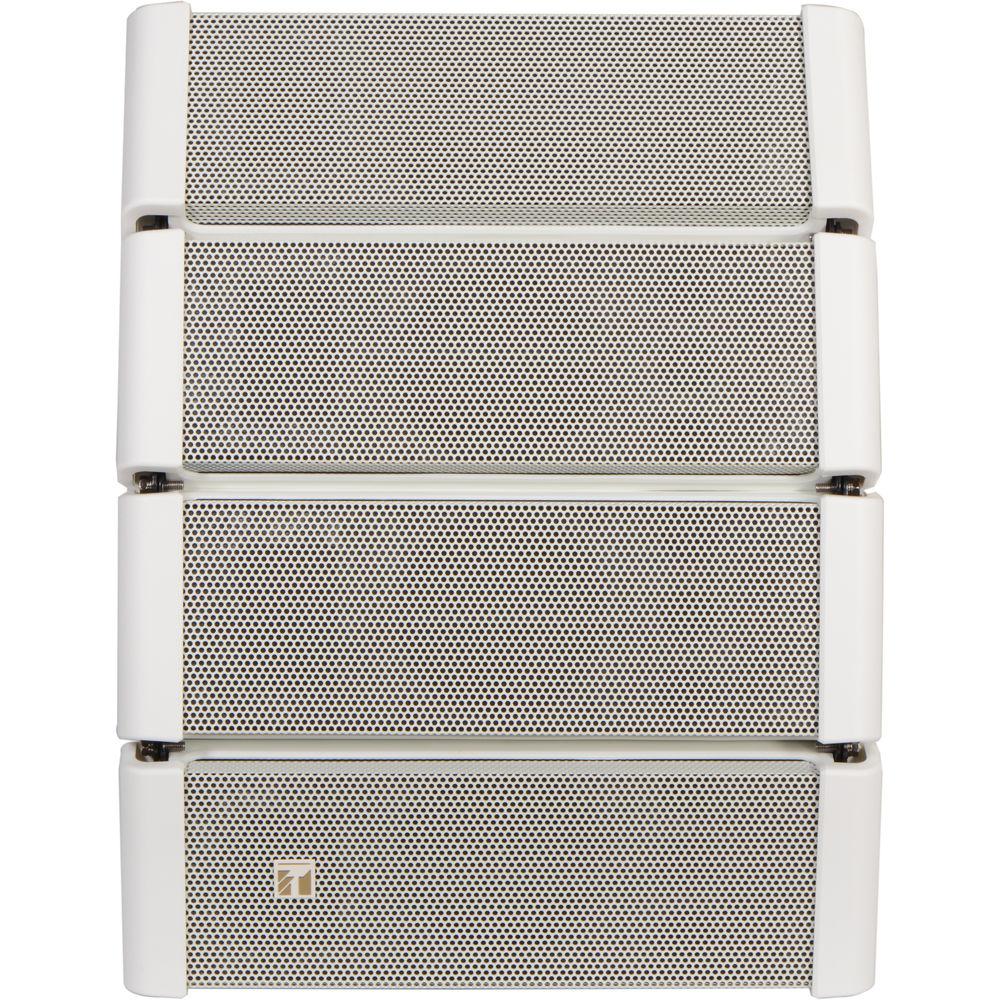

User Manual for Toa Electronics HX-5W Variable Dispersion Line Array Speaker Click to enlarge the picture
Contents of the user manual for the Toa Electronics HX-5W Variable Dispersion Line
- Product category: PA Speakers Toa Electronics
- Brand: Toa Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Toa Electronics PA Speakers
 |
User manual for the Toa Electronics HX-5W Variable Dispersion Line contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Toa Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Toa Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Toa Electronics product will considerably shorten its lifespan!
|

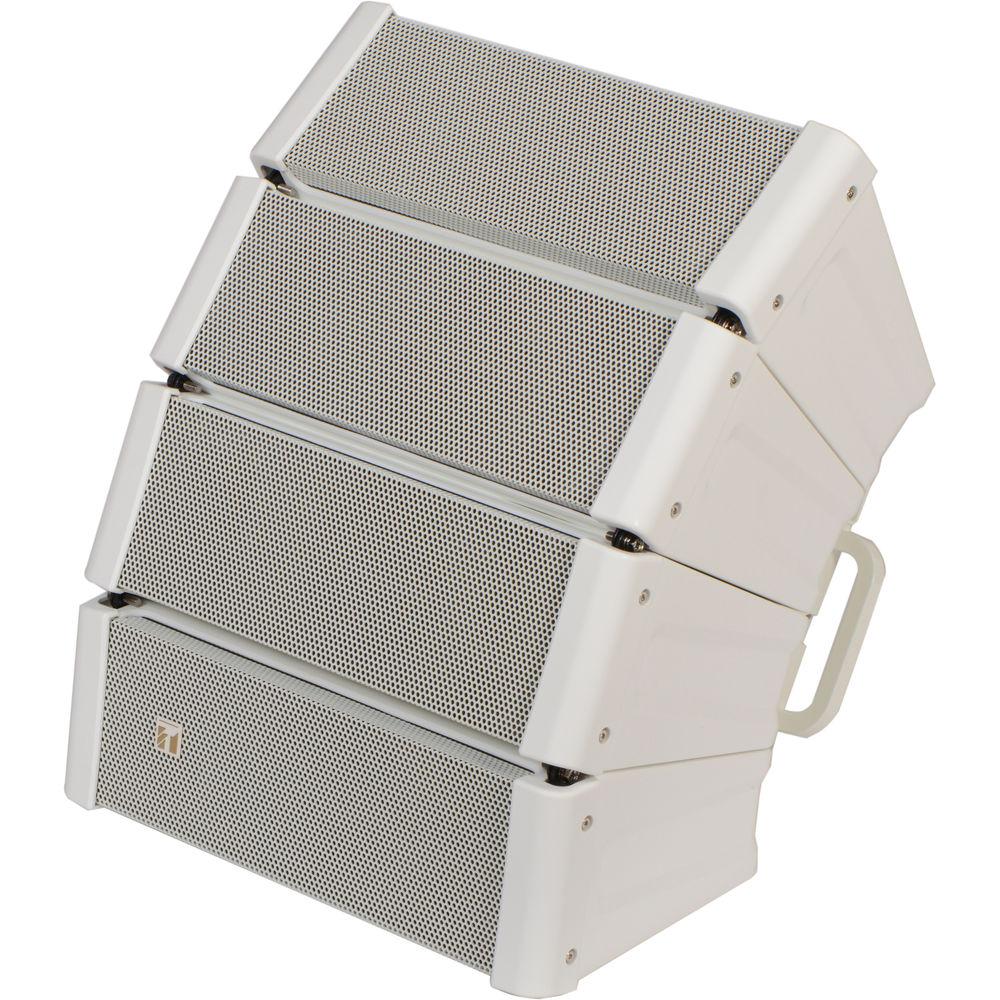

Product description The TOA HX-5W Variable Dispersion Line Array Speaker gives you a new approach to speaker design. TOA approached the challenge of pattern control with four adjustable dispersion angles. Within seconds you can adjust between 60, 45, 30 and 15° and all with pattern control below 1 kHz. With 600W of continuous power you have high power handling in a durable, lightweight package. This particular model is black to best match your working environment and blend into the background. You can even increase its functionality by mounting your speakers vertically or horizontally with the built-in bracket, or purchase the optional wall or ceiling mount for even more versatility.
And for the piece de resistance, this particular model is weather resistant, so if outdoor venues are your forte, this is really the speaker system for you. - Ideal for auditoriums, houses of worship, and gymnasiums and more
- Adjustable dispersion angle to 60, 45, 30, or 15°
- Improved intelligibility through tailored coverage
- Compact design includes four preassembled modules with four LF drivers and twelve HF dome tweeters
- Inline driver arrangement for superior vertical coverage control
- Horizontal coverage remains broad through speech range: 100 deg. fixed
- Contoured waveguide-baffle for distortion-free coverage control
- High power handling: 600W cont. (200W, 24 hr. pink noise)
- High sensitivity: up to 99 dB, 1 watt @ 1 meter (500 to 5,000 Hz)
- Stack up to four units for improved coverage control
- Lightweight polypropylene construction
- Available in black and white
- Weather-resistant versions
- Parallel connectors - dual SpeakON and screw terminal
- Vertical or horizontal mounting

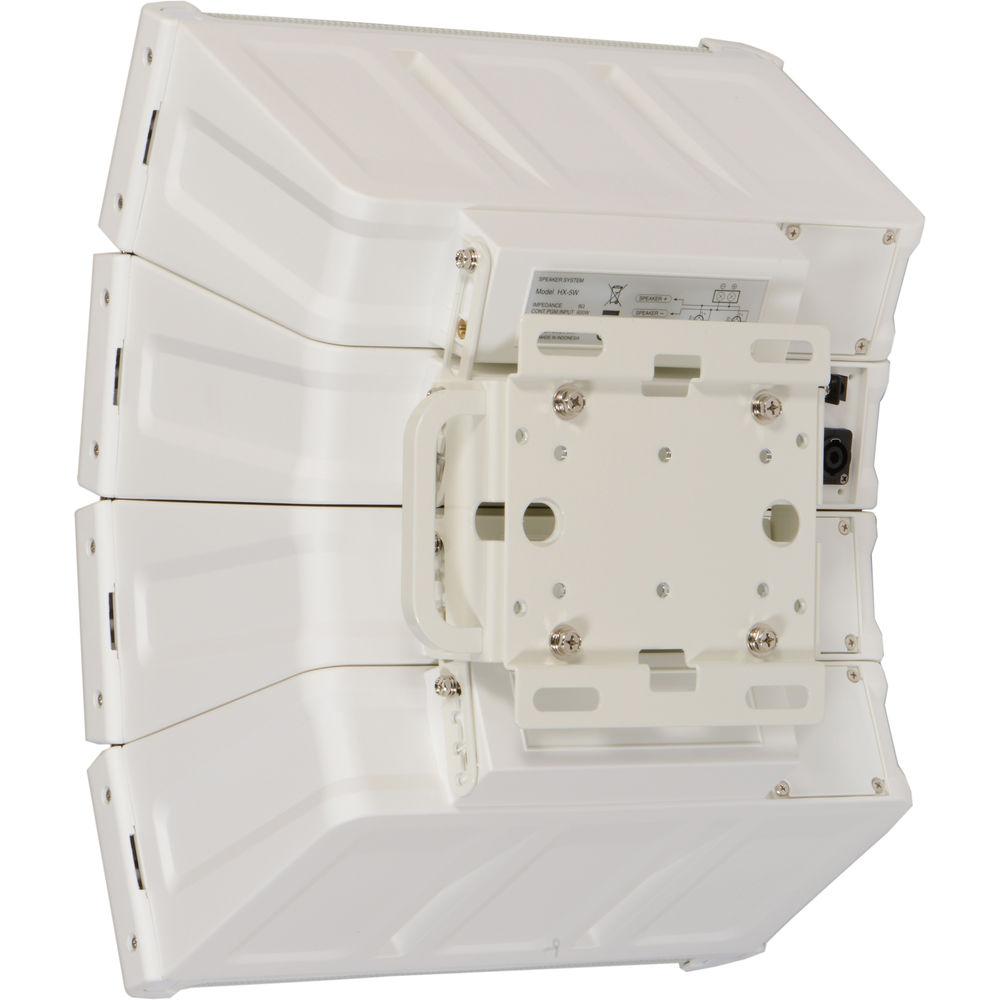

- Built-in surface-mount bracket
- Hardware included for flying / suspension
- Optional wall, ceiling and stand-mount hardware
- Optional bracket for joining multiples into one array
- Compatible with Omnimount 60 Series mounting hardware
- Optional subwoofer, model FB-120
- Optional 70 volt transformer, model MT-200
In the Box Toa Electronics HX-5W Variable Dispersion Line Array Speaker (White) 2 x Hanging Bracket Hex Wrench Product Instructions 5-Year Warranty User Manual PDF 599.8kbbbsadftffztuyqwrwwsybattxway Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics HX-5W Variable Dispersion Line Array Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics HX-5W Specs | | | Configuration | Passive 2-Way | | Enclosure Type | Bass-Reflex Line Array | | Total Power Capacity | 600 W | | System Impedance | 8 Ohms | | | | HF Driver | 12 x Dome | | LF Driver | 4 x 4.72" / 12 cm Woofer | | | | Frequency Response | 70 Hz to 20 kHz -10 dB When set to 60
