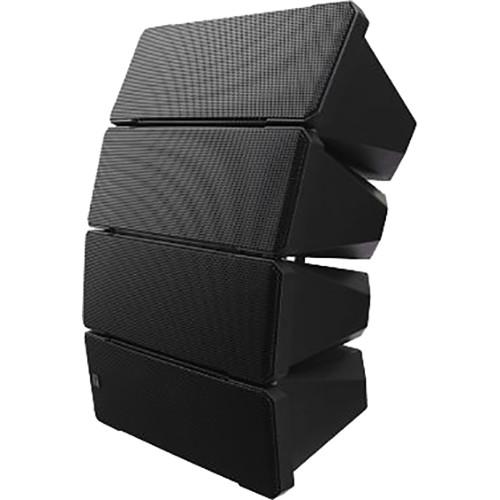

User Manual for Toa Electronics HX-7B Variable Dispersion Speaker Click to enlarge the picture
Contents of the user manual for the Toa Electronics HX-7B Variable Dispersion Speaker
- Product category: PA Speakers Toa Electronics
- Brand: Toa Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Toa Electronics PA Speakers
|
User manual for the Toa Electronics HX-7B Variable Dispersion Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Toa Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Toa Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Toa Electronics product will considerably shorten its lifespan!
|
Product description The black TOA Electronics HX-7B Variable Dispersion Speaker is designed to meet the needs of medium-sized venues, such as churches, auditoriums (and other performance spaces), as well as gymnasiums and sports arenas. It adds true line array to the HZ series range of configurations. The high-frequency driver compliment provides enhanced intelligibility within the vocal range. Up to two HX-7's may be stacked together vertically for increased power handling and distance coverage. - 4 cell configuration, each incorporating dual 5" low-frequency drivers and 1 center-mounted, waveguide-loaded 1" exit compression driver
- Flexible vertical angle adjustment between 0° and 45° (60° with second HX-7 and optional adapter)
- 750W continuous program at 8 Ohms
- 100 dB sensitivity (1W at 1m)
In the Box Toa Electronics HX-7B Variable Dispersion Speaker (Black) 2 x Hanging Bracket 4 x Mounting Bolt Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics HX-7B Variable Dispersion Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics HX-7B Specs | Enclosure | Bass-reflex type | | Rated Impedance | 8 Ohms | | Sensitivity | 100 dB (1 W at 1 m) | | Frequency Response | 75 to 20 kHz | | Crossover Frequency | 1.7 kHz | | Directivity | Horizontal: 100°
Vertical: Depending on directivity angle mode | | Speaker Component | Low Frequency: 8 x 5.5" (13 cm) cone-type
High Frequency: 4 x Wave front control horn with compression driver | | Input Terminal | 2 x SpeakOn NL4MP and M4 screw terminal
Distance between barriers: 0.35" (9 mm) | | Material of Construction | Enclosure: Polypropylene
Punched Net: Surface-treated steel plate
Hanging Bracket: Steel plate | | Power Handling | Continuous Pink Noise: 250 W
Continuous Program: 750 W at 8 ohms | | Dimensions (W x H x D) | 19.57 x 26.14 x 10.79" (497 x 664 x 274 mm) | | Weight | 66 lb (30 kg) | | | | Package Weight | 85.0 lb | | Box Dimensions (LxWxH) | 34.0 x 27.0 x 18.0" |
