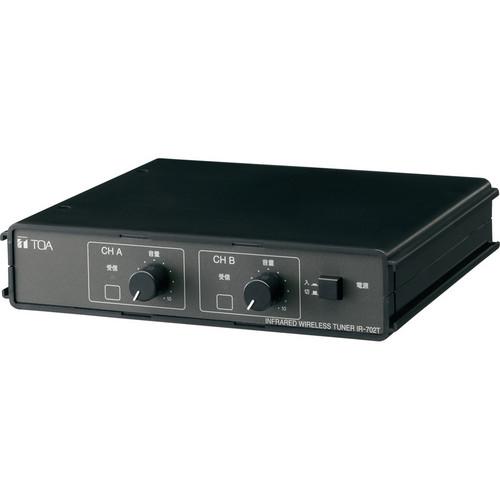

User Manual for Toa Electronics IR-702T Infrared Wireless Tuner Click to enlarge the picture
Contents of the user manual for the Toa Electronics IR-702T Infrared Wireless Tuner
- Product category: Audio Conferencing Toa Electronics
- Brand: Toa Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Toa Electronics Audio Conferencing
|
User manual for the Toa Electronics IR-702T Infrared Wireless Tuner contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Toa Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Toa Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Toa Electronics product will considerably shorten its lifespan!
|
Product description The TOA IR-702T Infrared Wireless Tuner is intended for use with the TOA Infrared (IR) Wireless Microphone System. The tuner features 2 BNC inputs for connecting 2 IR510R, 520R and 500R infrared receivers, and up to 4 receivers may be used with the YW-1022 distributor (all sold separately).A pair of 1/4" phone audio outputs on the rear panel may be set to send a stereo mixed or discrete signal to a PA system. Level dials and channel switches are featured on the front panel, and the IR-702T may be rack mounted using the optional MB-WT3 and MB-WT4 hardware brackets. - Comes with a built-in 2-channel fixed-frequency tuner
- Enables installation of up to 4 infrared light receivers per unit
- Equipped with signal reception light and knob for microphone volume control
- Two line outputs, one with a MIX output switch allowing output of mixed voices from channels A and B
- Rack-mountable with optional brackets (MB-WT3/MB-WT4)
In the Box Toa Electronics IR-702T Infrared Wireless Tuner AC Adapter - 6.56' (2m) 1/4" Phone Audio Cord 3.28' (1m) 6 x Color Labels 4 x Rubber Feet 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics IR-702T Infrared Wireless Tuner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics IR-702T Specs | Carrier Frequency | Channel A: 3.100 MHz
Channel B: 3.350 MHz | | Connector | 75 ohm BNC Connector x2 | | Signal-to-Noise Ratio | 61dB or more | | Squelch | 32.768kHz | | Operating Temperature | 14 to 122°F (-10 to +50°C) | | Finish | ABS Resin, Black | | Power | AC Mains 50/60Hz (AC Adapter Included)
Power Consumption 15W or Less | | Dimensions (WxHxD) | 8.27 x 1.73 x 8.3" (210 x 44 x 210.9mm) | | Weight | 1.39 lb (630 g) | | | | Package Weight | 2.93 lb | | Box Dimensions (LxWxH) | 13.39 x 9.84 x 2.95" |
