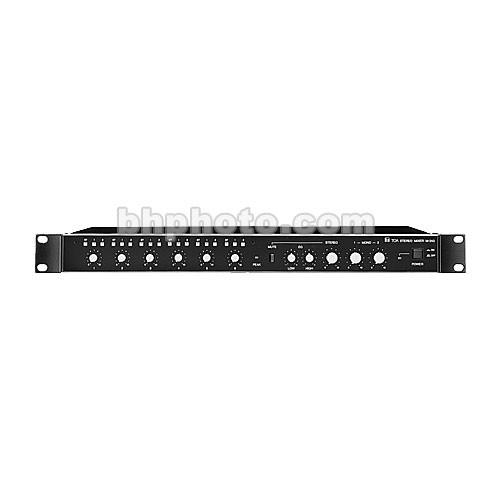

Product description The M-243 from TOA Electronics is a single rack space six-channel stereo mixer. It features four stereo RCA inputs for sources such as CD players, tape players, or electronic instruments and two XLR microphone inputs with switchable high-pass filters. The mic inputs take priority over the stereo inputs for paging/background music applications.
The inputs can be independently assigned to any combination of the outputs to fully meet your needs. One stereo and two mono mix busses with separate level controlled outputs are provided, and the mono output can be switched to a stereo sum. High and low frequency EQs with clipping indicators are also provided for the stereo output for obtaining the perfect tone. - Four stereo RCA inputs and two XLR mic inputs
- One stereo and two mono outputs
- Auto-priority of mic of stereo inputs
- Inputs can be independently assigned to any combination of outputs
- Individual level controls for all I/Os
- Mono output can be switched to stereo sum
- Low and high frequency controls
In the Box Toa Electronics M-243 - Rack-Mountable 6-Channel Stereo Mixer Rack Mounting Kit 5 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics M-243 - Rack-Mountable 6-Channel Stereo Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics M-243 Specs | Frequency Response | 20Hz - 20kHz | | Total Harmonic Distortion (THD) | Less than 0.01% | | Noise | Stereo Out Min: -105dB or Less
Stereo Out Max: -94dB or Less
Mono Out Min: -98dB or Less
Mono Out Max: -95dB or Less | | Inputs | 2 x XLR
2 x Mono 1/4" (6.3mm) Phone Jacks
4 x Stereo RCA Jacks
1 x 1/4" (6.3mm) Stereo Pair
1 x 1/4" (6.3mm) Sub-Input Stereo Pair
2 x Mono 1/4" (6.3mm) Sub-Input Jacks | | Input Level | Ch. 1-2 Max: -30dB
Ch. 3-6: -10dB
Sub Input Max: +20dB | | Input Impedance | Ch. 1-2 Mic: 1 k ohm
Ch. 1-2 Line: 10 k ohms
Ch. 3-6: 10 k ohms
Sub Input: 50 k ohms | | Outputs | 2 x 1/4" (6.3mm) Mono Out
1 x 1/4" (6.3mm) Stereo Pair
1 x RCA Stereo REC Out | | Output Level | Stereo Max: +20db
Mono Max: +20dB
Rec Max: +6dB | | Output Impedance | Stereo: 1 k ohm
Mono: 1 k ohm
Rec: 1 k ohm | | Controls | 6 x Input Level Controls
3 x Output Level Controls
2 x EQ Controls
1 x Power On/Off Button
1 x Mute Button
18 x Output Assignment Switches | | Dimensions (WxHxD) | 19 x 1.75 x 11.9" (483 x 44 x 302 mm) | | Weight | 8.4 lbs (3.8 kg) | | | | Package Weight | 12.0 lb | | Box Dimensions (LxWxH) | 23.0 x 16.0 x 4.0" |
