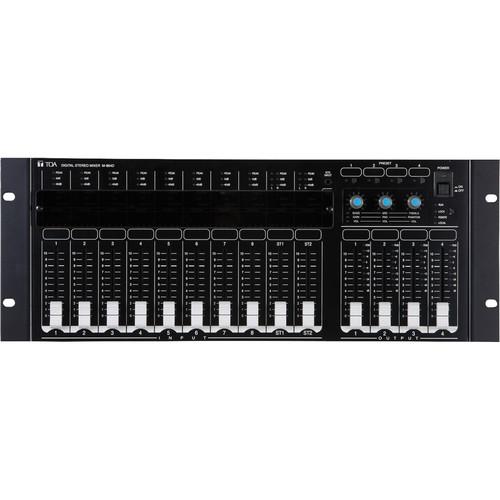

User Manual for Toa Electronics M-864D Digital Stereo Mixer Click to enlarge the picture
Contents of the user manual for the Toa Electronics M-864D Digital Stereo Mixer
- Product category: Digital Mixers Toa Electronics
- Brand: Toa Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Toa Electronics Digital Mixers
|
User manual for the Toa Electronics M-864D Digital Stereo Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Toa Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Toa Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Toa Electronics product will considerably shorten its lifespan!
|
Product description The Toa Electronics M-864D Digital Stereo Mixer is a 4U rack mountable digital stereo mixer with 8 monaural mic/line input channels, 7 stereo input channels, and 6 output channels, including 4 bus-assignable monaural output channels and 1 stereo recording output channel. The unit is equipped with digital signal processing functions such as automatic resonance control, feedback suppressor (FBS), automatic stereo input mute function (AUTO MUTE or Ducker), and equalizer. Advanced acoustic compensation can be automatically performed without using an acoustic measuring instrument. Furnished with various function-setting buttons and 14 analog volume faders, the M-864D can be operated without the need or use of a PC. However, it can also be operated by connecting the PC or optional Remote control panel, and can be mounted in an EIA standard component rack (4U size). - Automatic Resonance Control
- Automatic Resonance Control function automatically creates an appropriate equalization curve based on measuring the acoustic characteristics inherent in an architectural space, thus improving sound clarity
- Feedback Suppressor
- The Feedback Suppressor (FBS) eliminates feedback from microphones that are moved to multiple locations
- Automatic Stereo Input Mute (Auto Mute or Ducker)
- Automatically mutes the stereo input when monaural signals are detected
In the Box Toa Electronics M-864D Digital Stereo Mixer Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics M-864D Digital Stereo Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics M-864D Specs | Power Source | 100 – 120 VAC, 60 Hz, CU | | Power Consumption | 30 W | | Frequency Response | 20 Hz - 20 kHz, ±1 dB | | Sampling Frequency | 48 kHz | | Dynamic Range | 100 dB or more (IHF - A weighted) | | Distortion | 0.03 % or less, 1 kHz, +4 dB (*2) input/output, 20 Hz − 20 kHz BPF | | Crosstalk | −80 dB or less, 1 kHz | | Input | Monaural input, 8 channels, removable terminal block (3 P)Phantom power (+24V DC, 10 mA, ON/OFF switchable for each channel)Gain Setting (settable for each channel) : PAD ON gain min., +4 dB* (max. +24 dB*), 10 kOhms, electronically-balanced, gain max., −14 dB* (max. +6 dB*), 10 kOhms, electronically-balancedPAD OFF gain min., −10 dB* (max. +10 dB*), 7 kOhms, electronically-balanced, gain max., −56 dB* (max. −36 dB*), 7 kOhms, electronically-balancedStereo Input (L, R), 7 channels (1-A, 1-B, 1-C, 2-A, 2-B, 2-C, front-mounted input),RCA jack (stereo mini jack provided on the front panel) : −10 dB* (max. +10 dB*), 10 kOhms, trim gain for each individual channel: −∞ to 0 dB (except front-mounted input)• 1-A (L), 1-B (L), and 1-C (L) are mixed after passing through each trim gain circuit (the same applies to R channel)• 2-A (L), 2-B (L), and 2-C (L) are mixed with front-mounted input after passing through each trim gain circuit (the same applies to R channel) | | Output | 4 channels, +4 dB* (max. +24 dB*), applicable load 600 ohms or more, electronically-balanced, removable terminal block (3 P), REC OUT (L, R): –10 dB* (max. +10 dB*), applicable load 1 kOhms or more, RCA jack, gain is adjustable | | A/D Converter | 24-bit | | D/A Converter | 24-bit | | Presets | 16 | | Signal Processing | Automatic Resonance Control (ARC): Automatic EQ curve creation by ARC, 4 channels (each output channel), settable independently on each channelFeedback Suppressor (FBS): Feedback suppressor filter creation, 8 channels (each monaural input channel), settable independently on each channelFilter: 8 channels (each monaural input channel), settable independently on each channel, high-pass filter: 20 Hz − 20 kHzTone Controller: BASS, Low-shelving filter: 20 − 500 Hz, ±15 dB, MID, parametric equalizer: 20 Hz − 20 kHz, ±15 dB Q: 0.267 − 69.249, TREBLE, high-shelving filter: 6 − 20 kHz, ±15 dB, 10 channels (each monaural input channel, each stereo mixing input channel), settable independently on each channelEqualizer: Parametric equalizer: 20 Hz − 20 kHz, ±15 dB, Q: 0.267 – 69.249, 4 channels (each output channel)Matrix: 12 x 4Crosspoint Gain: −∞ to 0 dB in 1 dB stepsAutomatic Mute: Stereo input section matrix, independent controlFunction: Input PAD (−16 dB) control, low cut (cutoff frequency: 100 Hz) control, analog output attenuator (−6 dB, −12 dB, −18 dB, −24 dB, −36 dB, −42 dB) control, system lock function, stereo summing function, Control knobs (3 rotary encoders) | | Front Panel | Input Level Indicator: 3-point LED, 12 channels (each monaural input channel, stereo 1L, 1R, 2L, 2R)Output Level Indicator: 8-point LED, 4 channels (each output channel)Auto Resonance Control (ARC) Measurement: ARC switch x 1, ARC operation indicator x 1Feedback Suppressor (FBS) Function: Feedback Suppressor switch x 8, Feedback suppressor indicator x 8Low Cut Filter: Low cut switch x 8, Low cut indicator x 8Summing Output: Monaural summing switch x 2, Monaural summing indicator x 2Tone Control: BASS, MID, TREBLE/Settable with control knobs, 10 channels (each monaural input channel, stereo 1L, 1R, 2L, 2R)Monaural Input, Analog Setting: Gain setting, PAD ON/OFF, Phantom power ON/OFF, Settable with control knobs, 8 channels (each monaural input channel)Stereo Input, Analog Setting: Trim setting, Settable with control knobs, 6 channels (1-A, 1-B, 1-C), (2-A, 2-B, 2-C)REC OUT, Gain Setting Gain Setting: Settable with control knobs, 2 channels (REC OUT L, REC OUT R)Preset Memory Switching: Preset memory key x 4, Preset memory indicator x 4System Lock: System lock key x 1, System lock indicator x 1Operation Status Indication: Operation status indicator x 3Function Setting Section: Control knob x 3, 10-point position indication LED x 3, Tone control mode indicator x 1, Gain control mode indicator x 1, Trim control mode indicator x 1Analog Volume Fader: Input volume fader x 10, Output volume fader x 4, 2 faders linkable with supplied gang bar | | Control Section | Contact Input: 8 channels, open voltage: 24 V DC, short-circuit current: 5 mA, removable terminal block (10 P)Contact Output: 8 channels, no-voltage make contact, contact capacity: 24 V DC/100 mA, removable terminal block (10 P)Remote Control Panel: 2 channelsMaximum Number of Units: 8 units per channel 24 V DC input x 2, termination switch x 1, removable terminal block (10 P)Maximum Total Cable Length (Star Wiring): 800 m or 870 yd (total for 2 channels)Maximum Cable Length (Daisy Chain Wiring): 400 m or 435 yd per channelNote: In daisy chain wiring, the number of units differs depending on the cable length, star wiring and daisy chain wiring cannot be used togetherType of Cable: Shielded CPEV cable (a pair of data cable and a pair of power supply cable) or shielded Cat 5 twisted pair cable for LAN (CAT5-STP)Network:Network I/F: 1 channel of 10BASE-T/100BASE-TX (auto-negotiation), RJ45 connector, connection via switching hubNetwork protocol: TCP/IPConnection Cable: Shielded Cat. 5 or higher twisted pair cable for LAN (Cat. 5-STP or better)Maximum Cable Length: 100 m or 110 yd (between M-864D and switching hub) | | Operating Temperature | 0 to 40 ºC (32 to 104 ºF) | | Operating Humidity | 90 %RH (no condensation) | | Finish | Panel: Aluminum, hairline, black, Case: Surface-treated steel plate | | Dimensions | 19 x 6.97 x 6.19" (482.6 x 177.1 x 157.2 mm) | | Weight | 11.24 lb (5.1 kg) | | | | Package Weight | 14.85 lb | | Box Dimensions (LxWxH) | 22.835 x 10.63 x 10.039" |
