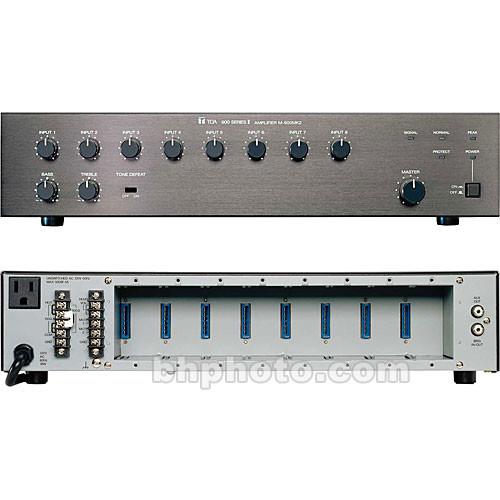

User Manual for Toa Electronics M-900MK2 - 8-Channel Modular Mixer Preamplifier Click to enlarge the picture
Contents of the user manual for the Toa Electronics M-900MK2 - 8-Channel Modular
- Product category: Install Sound Mixers Toa Electronics
- Brand: Toa Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Toa Electronics Install Sound Mixers
|
User manual for the Toa Electronics M-900MK2 - 8-Channel Modular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Toa Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Toa Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Toa Electronics product will considerably shorten its lifespan!
|
Product description The M-900MK2 from TOA Electronics is an eight-channel modular mixer/preamplifier that delivers professional-quality audio with a wide frequency response, low noise, and low distortion for accurate reproduction. The eight module slots accept any combination of TOA plug-in modules for the ultimate in customizability, giving you the input and output options you need. The balanced, transformer-isolated terminal block output connector has a selectable impedance for a wider variety of output options.
An aux output is provided for connection to an external mixer or recording device, and a bridging in/out jack is available for input expansion or output to a recording device. A dual mute bus allows multiple levels of paging priority when used with muting modules. The master volume of the M-900MK2 can be controlled via the front panel, or remotely with an external potentiometer. Each of the inputs has an individual volume control. - Eight module slots for customizability
- Terrific audio with a wide frequency response and low noise and distortion
- Dual mute bus for multiple levels of paging priority
- Individual channel and master volume controls
- Master volume can be controlled via an external potentiometer
- Balanced, transformer-isolated screw terminal output with switchable impedance
- Auxiliary output for connecting additional mixer or recording device
- Bridge in/out jack for system expansion
- Status LEDs for power, peak, protect, normal, and signal
- Protection circuitry for overheat and overload
In the Box Toa Electronics M-900MK2 - 8-Channel Modular Mixer/Preamplifier 4 x Volume Control Security Knobs 5 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics M-900MK2 - 8-Channel Modular Mixer Preamplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics M-900MK2 Specs | Output Power | +4 dBm, +20 dBm (Max) | | Power Bandwidth | 30Hz - 20kHz, +20 dBm 0.5% THD
250Hz - 20kHz, +18 dBm 0.5% THD | | Frequency Response | 20Hz - 20kHz | | Total Harmonic Distortion (THD) | 0.01% | | Inputs | 8 x Module Slots, Each Accepts Any Input Module
1 x Bridging In/Out RCA Jack | | Input Sensitivity | Module Slots: 100mV
Bridging In/Out: 100mV | | Input Impedance | Module Slots: 10 k ohms
Bridging In/Out: 3.3 k ohms | | Outputs | Main: Balanced Terminal Block, 150/600 ohms
Aux: Unbalanced RCA Jack, 10 k ohms | | Output Regulation | Less than 1.5dB | | Dynamic Range | 90dB @ Min. Volume
77dB @ Max. Volume | | Tone Control | +/-10dB Bass and Treble | | Indicators | LEDs for Power, Peak, Protect, Signal, and Normal | | Protection | Self-Protection with Internal AC Fuses | | Power Consumption | 18W | | Temperature Range | 12 to 140°F (-10 to +60°C) | | Dimensions (WxHxD) | 16.5 x 3.9 x 12.1" (420 x 99 x 308mm) | | Weight | 11.7 lbs (5.3 kg) | | | | Package Weight | 18.35 lb | | Box Dimensions (LxWxH) | 22.8 x 17.4 x 6.7" |
