User Manual for Toa Electronics MM-700F Matrix Preamplifier Click to enlarge the picture
Contents of the user manual for the Toa Electronics MM-700F Matrix Preamplifier
- Product category: Mixer/Amplifiers Toa Electronics
- Brand: Toa Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Toa Electronics Mixer/Amplifiers
|
User manual for the Toa Electronics MM-700F Matrix Preamplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Toa Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Toa Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Toa Electronics product will considerably shorten its lifespan!
|

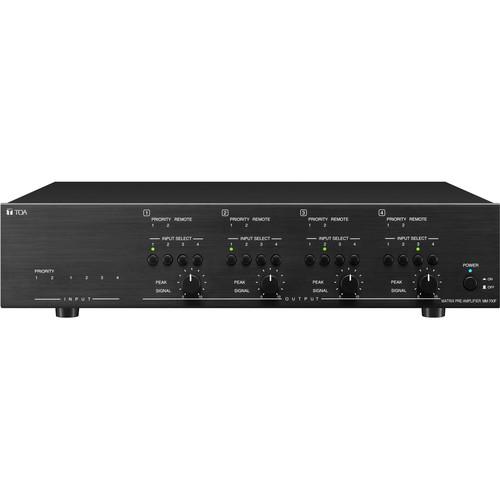

Product description The MM-700F Matrix Preamplifier from Toa Electronics is an all-in-one solution for multi-channel or multi-zone applications combining a 6x4 audio matrix and a DSP into one chassis. It is equipped with four independent line inputs, two mic/line priority inputs, and four outputs. Each output channel features 64 DSP preset selections for general equalizations, crossover for subwoofer, and EQ settings. The mic/line inputs offer first and second priority levels that can override at assigned output channels automatically or manually. All assignments and setups can be done by dip switches on its rear panel without a laptop or a PC. The MM-700F is suitable for a wide range of applications that require multi-zone paging and/or background music distribution at restaurants, clubs, retail stores, schools, offices, factories, etc. - Four stereo-summing line inputs with matrix routing to four line outputs
- Each line input has an input level adjustment and assign restriction setting for each output to prevent wrong routing selection
- Two priority mic/line inputs with different priority levels for paging or other pre-recorded sources that can override the selected line input on assigned output channels
- Each priority input also has input level, mute sensitivity, and mute hold time adjustments
- Selectable DSP preset selections include general EQs, like loudness curves, TOA speaker EQs, and crossover settings to be used with subwoofers
- Each output channel also has auxiliary line output to deliver audio to other systems
- Does not require any PC programming or network connection for setup at site (maintenance purpose only)
In the Box Toa Electronics MM-700F Matrix Preamplifier 5.7' Power Cord 2 x 5-Pin Removable Terminal Plugs 3-Pin Removable Terminal Plug 4 x 2-Pin Removable Terminal Plugs 2 x Rack Mount Brackets 4 x Mounting Screws Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics MM-700F Matrix Preamplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics MM-700F-AM Specs | Frequency Response | 20 Hz to 20 kHz (-3 dB / +1 dB) | | THD + N | 0.5% or less, at 1 kHz, rated output | | Inputs | Priority 1 & 2:
Mic -60 dB / line -10 dB (0 dB= 1V) selectable, 2.2 kOhms, electronically-balanced, removable terminal block
Line In 1 to 4:
-10 dB, 10 kOhms, unbalanced, 2 RCA jacks (stereo summing) | | Outputs | Line Out 1 to 4: 0 dB (0 dB= 1V), 600 Ohms, unbalanced, removable terminal block
MOH: 0 dB (0 dB= 1V), 600 Ohms, transformer balanced, removable terminal block | | DSP | 16 presets in 4 banks at each output channel, selectable | | S/N Ratio | Mic: 60 dB (0 dB= 1V) or more (A-weighted)
Line: 75 dB (0 dB= 1V) or more (A-weighted) | | Muting | Manual / automatic mute
Mute Hold Time: 50 ms to 10 sec, adjustable | | Priority Levels | Priority 1 > Priority 2 > Line 1 to 4 | | Controls | Power: On/off switch, power remote terminal
Priority 1 & 2: Mic/line selector switch, gain control, assign switch, auto mute switch, mute sense control, manual mute terminal, mute hold time control, and priority mix switch
Line 1 to 4: Gain control, assign restriction switch
Output 1 to 4: Line in 1 to 4 selector switch, output gain control, DSP bank selector switch, and DSP preset selector switch
Remote 1 to 4: Remote control connector (RJ45), remote link switch | | LED Indicators | Power:
1 x power LED
Priority 1 & 2:
1 x Signal
1 x Peak
Line 1 to 4:
1 x Signal
1 x Peak
Output 1 to 4:
2 x Activated priority
1 x Connected remote control
4 x Selected line
1 x Signal
1 x Peak | | Power Source | 100 to 240 VAC, 50/60 Hz | | Power Consumption | 9 W or less (standby) | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Operating Humidity | 35 to 80% RH (no condensation) | | Material | Panel: Aluminum
Case: Painted steel plate | | Certifications | cULus 60065, EN60065, EN55032, EN55020, FCC part15 class A | | Dimensions | 16.54 x 4.24 x 13.78" (420 x 107.6 x 350 mm) | | Weight | 12.3 lb (5.7 kg) |
