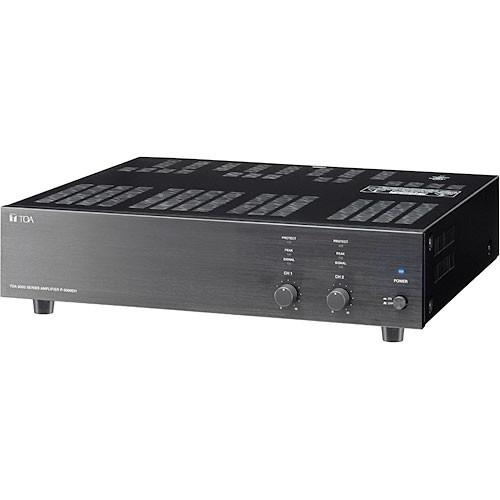

User Manual for Toa Electronics P-9120DH 120w 2 Channel Power Amplifier @ 70V Click to enlarge the picture
Contents of the user manual for the Toa Electronics P-9120DH 120w 2 Channel
- Product category: 70-Volt Amplifiers Toa Electronics
- Brand: Toa Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Toa Electronics 70-Volt Amplifiers
|
User manual for the Toa Electronics P-9120DH 120w 2 Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Toa Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Toa Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Toa Electronics product will considerably shorten its lifespan!
|
Product description The P-9120DH 120w 2 Channel Power Amplifier @ 70V from Toa Electronics is a high-performance digital amplifier designed for installed applications. This dual rack space unit can be used for expansion for the 9000 series pwer amplifiers when connected to T-001T output modules or used a stand-alone amplifier. - This double rack space unit maintains the style and look of 9000 series mixer/amplifiers
- Volume control security cover is included
In the Box Toa Electronics P-9120DH 120w 2 Channel Power Amplifier @ 70V AC Cable 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics P-9120DH 120w 2 Channel Power Amplifier @ 70V in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics P-9120DH CU Specs | Output Power | 120W x 2 @70V | | Frequency Response | 20Hz - 20kHz (±1dB) | | Total Harmonic Distortion (THD) | .008% | | Input Sensitivity | -20dB or 0dB (switchable) | | Input Impedance | 10kohms (electronically balanced) | | Signal to Noise Ratio | 97dB | | Connectors | 1 x AC Power Input
2 x 3-Pin Removable Terminal Block Input Connectors
1 x Screw Terminal Strip Output (2 Channels) | | Controls | 1 x Power Switch
2 x Input Volume Control Knobs | | Indicators | 1 x Blue Power LED
2 x Green Input LEDs
2 x Yellow Output LEDs
2 x Red Peak LEDs
2 x Red Protect LEDs | | Power Requirements | 120VAC, 50/60Hz | | Power Consumption | 404W | | Dimensions (WxHxD) | 16.54 x 4.24 x 15.98" (420 x 107.6 x 406mm) | | Weight | 22.05 lbs (10kg) | | | | Package Weight | 29.76 lb | | Box Dimensions (LxWxH) | 21.26 x 19.29 x 7.28" |
