User Manual for Toa Electronics PE-304 5" Pendant Speaker System Click to enlarge the picture
Contents of the user manual for the Toa Electronics PE-304 5" Pendant Speaker
- Product category: Installed Speakers Toa Electronics
- Brand: Toa Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Toa Electronics Installed Speakers
|
User manual for the Toa Electronics PE-304 5" Pendant Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Toa Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Toa Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Toa Electronics product will considerably shorten its lifespan!
|

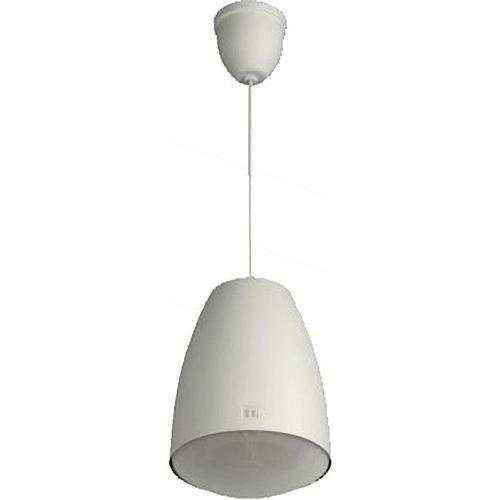

Product description The PE-304 5" Pendant Speaker System from Toa Electronics supports 70V / 100V operation, installs like a hanging light fixture and is ideally suited for speech and background music in commercial installations, airports, medical offices, retail stores, and more. The PE-304 includes a balanced dome tweeter. The 5" cone-type pendant speaker hangs on its attached suspension cable that is expandable up to 16.4'. The enclosure is paintable in order to match any decor. - Hanging light-fixture style design
- Selectable input impedance
- Repaintable to match any decor
- Attached suspension cable extends up to 16.4' (5m)
In the Box Toa Electronics PE-304 5" Pendant Speaker System Ceiling Bracket Mounting Hanger Ceiling Cover 4 x Speaker Mounting Screws Limited 5-Year Warranty Brochure PDF 208.8kbezsxzwxqscuztsexfs Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics PE-304 5" Pendant Speaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics PE-304 Specs | Active or Passive | Active | | Enclosure | Bass-reflex type | | Rated Input | 30 W (100 V, 70 V line, 8 ohms) | | Frequency Response | 70 Hz to 20 kHz (peak -20 dB) | | Impedance | 100 V line: 330 ohms (30 W), 500 ohms (20 W), 670 ohms (15 W), 1 kOhm (10 W), 2 kOhms (5 W)
70 V line: 170 ohms (30 W), 250 ohms (20 W), 330 ohms (15 W), 500 ohms (10 W), 1 kOhm (5 W) 8 ohms (30W) | | Sensitivity | 91 dB (500 Hz - 5 kHz, pink noise) @ 1 W / 1 m | | Speaker Component | 5" (12 cm) cone-type + balanced dome tweeter | | Speaker Cable Length | 2-core cabtyre cord: 16.4' (5 m) | | Cable | 600 V vinyl-insulated cable (IV or HIV wire)
Solid copper wire: 0.03 - 0.06" (0.8 - 1.6 mm) diameter (equivalent to AWG 20 - 14)
7-core twisted copper wire: 0.03 - 0.05 square inches (0.75 - 1.25 mm2) (equivalent to AWG 18 - 16) | | Connection | Push-in connector (bridging terminal: 2-branch type) | | Finish | Enclosure: HIPS Resin, off-white
Grille: Surface-treated steel plate net, off-white | | Dimensions (Ø x H) | 7.32 x 9.88" (186 x 251 mm) | | Weight | 4.63 lb (2.1 kg) | | | | Package Weight | 7.35 lb | | Box Dimensions (LxWxH) | 13.386 x 13.307 x 12.284" |
