User Manual for Toa Electronics PE-604WU Pendant Speaker 60W Click to enlarge the picture
Contents of the user manual for the Toa Electronics PE-604WU Pendant Speaker 60W
- Product category: Installed Speakers Toa Electronics
- Brand: Toa Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Toa Electronics Installed Speakers
|
User manual for the Toa Electronics PE-604WU Pendant Speaker 60W contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Toa Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Toa Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Toa Electronics product will considerably shorten its lifespan!
|

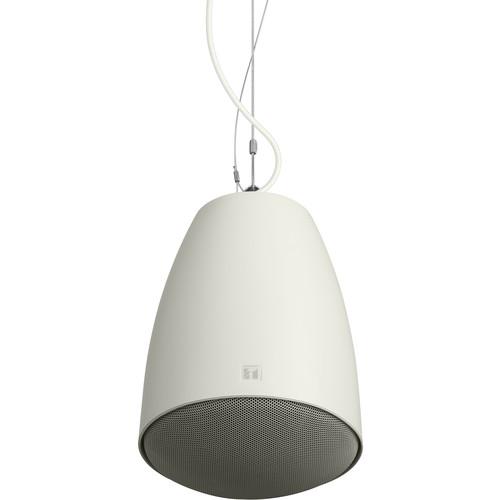

Product description The white PE-604WU Pendant Speaker 60W from Toa Electronics is a pendant speaker designed for the installations suspended from a ceiling. A directly-attached 16.4' (5.0 m) hanging wire allows the speaker to be suspended from high ceilings. The PE-604WU is driven on both high-impedance (100 V, 70 V and 25 V) and low-impedance (8 ohms) lines. The input power (impedance) can be easily changed at the upper side of the speaker. The Pendant Speaker is certified to UL 1480 UUMW and ULC-S541 standards. Using the supplied Gripple hangers will facilitate the speaker mounting height adjustment. In the Box Toa Electronics PE-604WU Pendant Speaker 60W (White) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics PE-604WU Pendant Speaker 60W in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics PE-604WU Specs | Enclosure | Bass-reflex type | | Rated Input | 60 W (100 V, 70 V line, 8 ohms), 7.5 W (25 V line) | | Rated Impedance | 100 V line: 170 ohms (60 W), 330 ohms (30 W), 670 ohms (15 W), 3.3 kOhms (3 W)
70 V line: 83 ohms (60 W), 170 ohms (30 W), 330 ohms (15 W), 670 ohms (7.5 W), 3.3 kOhms (1.5 W)
25 V line: 83 ohms (7.5 W), 170 ohms (3.7 W), 330 ohms (1.9 W), 670 ohms (0.9 W), 3.3 kOhms (0.2 W) | | Low Impedance | 8 ohms | | Sensitivity | 90 dB, 1 W, 1 m (330 Hz - 3.3 kHz, pink noise) | | Frequency Response | 110 Hz - 20 kHz @ -10 dB | | Speaker Component | 5" (13 cm) cone-type + balanced dome-tweeter (coaxial) | | Operating Temperature | -10° to 50° C (14° to 122° F) | | Finish | ABS resin, white | | Grille | Surface-treated steel plate mesh, white paint | | Dimensions | 7.32 x 10.83" (18.59 x 27.51 cm) | | Weight | 6.39 lb (2.90 kg) | | | | Package Weight | 10.4 lb | | Box Dimensions (LxWxH) | 13.6 x 13.2 x 12.5" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 79 owners. Add your rating and experience with the product.
