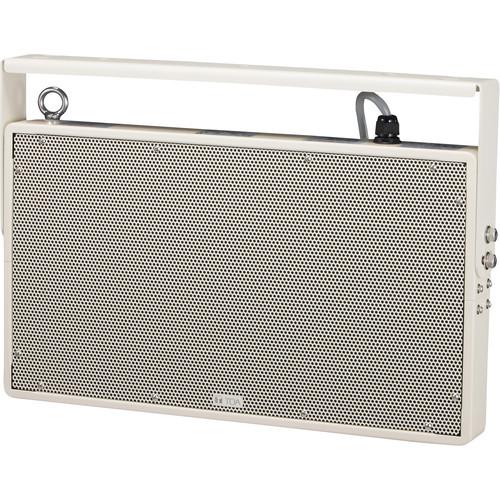

User Manual for Toa Electronics PW-1230DW Plane Wave Compact Double Throw Speaker Click to enlarge the picture
Contents of the user manual for the Toa Electronics PW-1230DW Plane Wave Compact
- Product category: Installed Speakers Toa Electronics
- Brand: Toa Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Toa Electronics Installed Speakers
|
User manual for the Toa Electronics PW-1230DW Plane Wave Compact contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Toa Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Toa Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Toa Electronics product will considerably shorten its lifespan!
|
Product description The white version of the TOA Electronics PW-1230DW Plane Wave Compact Double Throw Speaker is designed for public address applications that require narrow horizontal and vertical directivity such as broadcasting announcements on a railroad platform or along an escalator pathway.
The speaker utilizes an encased diaphragm with printed voice coil and magnet assembly to generate a magnetic planar waveform that radiates less than a point source speaker. The narrow horizontal and vertical directivity reduces surface reflections and the effects of room coloration. This is especially helpful for environments with hard parallel surfaces such as art galleries and museums where long reverberation times can compromise the clarity of the treble response.
The double throw speaker is dipolar, meaning it projects sound both forward and backward. This figure eight directivity pattern further reduces room coloration because the forward and inverse backward waveforms combine to lessen and delay the first incidental wall reflection. The speaker includes a built-in beam-tilting function that enables you to shift the sound radiation direction approximately 5° downward off the horizontal axis.
It also includes a built-in high pass filter and an integrated hanging bracket for installation. The unit is constructed from stainless steel for rust resistance and is compliant with IPX4 (IEC60529) water standards, making it suitable for installation in covered outdoor spaces that are protected from the elements. - Narrow Directivity
- Reduces acoustic coloration from ceiling and floor reflections, especially helpful for environments with especially long reverberation times
- Splash-Proof Construction
- Complies with IPX4 (IEC60529) water protection standards, making the speaker suitable for covered outdoor spaces that are protected from the elements
- Rust Resistance
- Utilizes stainless-steel construction to help protect the speaker from rust
- Beam-Tilting Function
- Enables shifting radiation direction approximately five degrees off the horizontal axis
- Built-in High-pass Filter
- Prevents low frequency sound radiation outside of the intended coverage area
In the Box Toa Electronics PW-1230DW Plane Wave Compact Double Throw Speaker (White) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics PW-1230DW Plane Wave Compact Double Throw Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics PW-1230D Specs | Drivers | 2x plane wave unit (5.98 x 8.43", 152 x 214 mm) | | Type | Magnetic planar | | Radiation Pattern | Double sided (positive pressure wave forward, negative pressure wave backward) | | Rated Input | 30 W | | Impedance | 100 V Line: 330 Ω (30 W), 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W)
70 V Line: 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5 W), 1 kΩ (5 W), 2 kΩ (2.5 W) | | Sensitivity | 86 dB (1 W, 1 m equivalent measured at 4 m, 1 to 10,000 Hz)
86 dB (1 W, 1 m measured at 1 m, 1 to 10,000 Hz)
(Beam tilting: FLAT, high pass filter: OFF) | | Frequency Response | 300 to 17,500 Hz (Beam tilting: FLAT, High pass filter: OFF) | | Directivity | Horizontal: 38° (2,000 Hz 1/3 octave band)
Vertical: 75° (2,000 Hz 1/3 octave band) | | Settings Switches | Beam tilting (radiation direction) FLAT: 0° downward/DOWNWARD: 5° downward
High Pass filter (450 Hz, -12 dB/oct): OFF/ON | | Speaker Connectors | 0.35" (ø9 mm), 6-core cabtyre cable, 6.56 ft (2.00 m) | | Waterproof/Dustproof Rating | IPX4 | | Operating Temperature | 14 to 122°F (-10 to +50°C) | | Finish | Punched stainless steel net enclosure with mounting bracket | | Dimensions (W x H x D) | Including Mounting Bracket: 20.63 x 13.98 x 2.36" (524 x 355 x 60 mm) | | Weight | Including Mounting Bracket: 16.09 lb (7.30 kg) | | | | Package Weight | 20.5 lb | | Box Dimensions (LxWxH) | 24.409 x 17.717 x 5.118" |
