User Manual for Toa Electronics Q-PE-304BK Pendant Speaker System Click to enlarge the picture
Contents of the user manual for the Toa Electronics Q-PE-304BK Pendant Speaker System
- Product category: Installed Speakers Toa Electronics
- Brand: Toa Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Toa Electronics Installed Speakers
|
User manual for the Toa Electronics Q-PE-304BK Pendant Speaker System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Toa Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Toa Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Toa Electronics product will considerably shorten its lifespan!
|

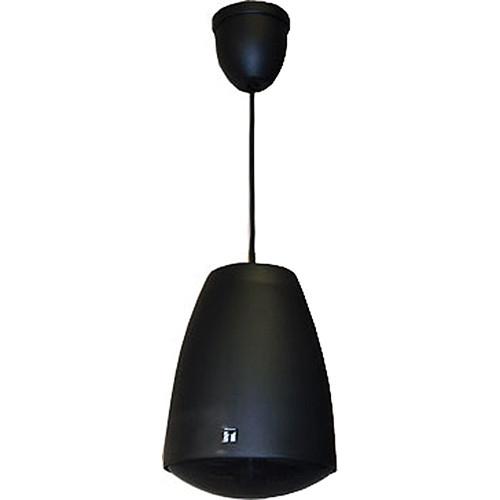

Product description The black Q-PE-304BK Pendant Speaker System from Toa Electronics is built within an HIPS resin bass-reflex enclosure using 5" (12cm) cone-type pendant speakers and is intended for ceiling suspension installation. This speaker system comes with a balanced dome tweeter. It has an elegant design, allowing them to harmoniously blend in with lighting equipment.The Speaker System is suitable for applications such as BGM and announcements at high-ceiling venues such as airports, factories, and shopping malls. The speakers are easy to re-paint, extending the range of design needs they can meet and also include a balanced dome tweeter. A directly attached sturdy suspension cable is extendable up to 16.4’ (5.0m).The Q-PE-304BK Pendant Speaker System is driven on a high- and low-impedance (8Ω) line. The input impedance is adjustable with rotary switch on the upper side of the speaker. In the Box Toa Electronics Q-PE-304BK Pendant Speaker System (Black) Ceiling Bracket Mounting Hanger Ceiling Cover 4 x Speaker Mounting Screws (4 x 16) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics Q-PE-304BK Pendant Speaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics Q-PE-304BK Specs | Enclosure | Bass-reflex type | | Rated Input | 30 W (100 V, 70 V line, 8 Ω) | | Impedance | 100 V Line: 330 Ω (30 W), 500 Ω (20 W), 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W)
70 V Line: 170 Ω (30 W), 250 Ω (20 W), 330 Ω (15 W), 500 Ω (10 W), 1 kΩ (5 W), 8 Ω (30 W) | | Sensitivity | 91 dB (500 to 5,000 Hz, pink noise) (1 W, 1 m) | | Frequency Response | 70 to 20,000 Hz (peak -20 dB) | | Speaker | 5" (12 cm) cone-type + balanced dome tweeter | | Cord | 16.4' (5.0 m) 2-core cabtyre cord | | Cable | 600 V vinyl-insulated cable (IV wire or HIV wire)
Solid copper wire: ø0.8 to ø1.6 mm (equivalent to AWG 20 to 14)
7-core twisted copper wire: 0.75 to 1.25mm2 (equivalent to AWG 18 to 16) | | Connection | Push-in connector (bridging terminal-2 branch type) | | Dimensions | 7.32 × 9.88" (186 × 251 mm) (ø x H) | | Weight | 4.63 lb (2.1 kg) | | | | Package Weight | 11.6 lb | | Box Dimensions (LxWxH) | 13.228 x 13.071 x 12.677" |
