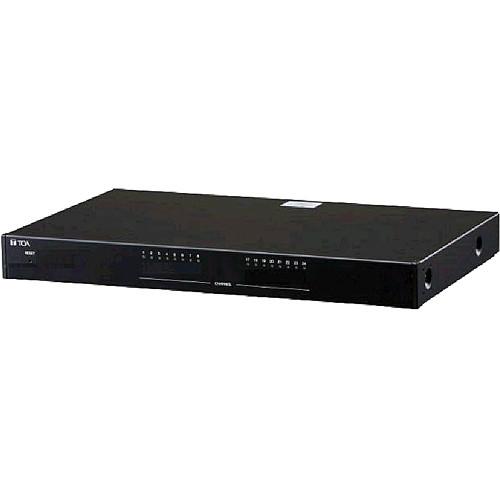

User Manual for Toa Electronics Q-SS9012PS Multi-Zone Speaker Selector Click to enlarge the picture
Contents of the user manual for the Toa Electronics Q-SS9012PS Multi-Zone Speaker Selector
- Product category: Switchers & Controllers Toa Electronics
- Brand: Toa Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Toa Electronics Switchers & Controllers
|
User manual for the Toa Electronics Q-SS9012PS Multi-Zone Speaker Selector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Toa Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Toa Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Toa Electronics product will considerably shorten its lifespan!
|
Product description The Toa Electronics Multi-Zone Speaker Selector has 2 amplifier inputs and 12 individual relay switches to select the amplifier connected to each 12 speaker line/zone. This allows up to 12 zones for paging and BGM distribution with a dual-channel amplifier or simple paging system with a one channel amplifier. - 12 contact inputs and 12 speaker outputs; power amplifier input is split into 12 zones with activation via contact closure
- Can facilitate paging over BGM by switching between BGM output (amplifier input 2) and Page output (amplifier input 1)
- LED indicator for each selector
- 19" (48.26cm) rack-mountable (using MB-15B sold separately)
- Supplied with AD-246 AC adapter
- Possible to expand number of 9000M2 paging zones along with conventional output zones (T-001T); up to 19 zones
- May work with internal or external amplifier
In the Box Toa Electronics Q-SS9012PS Multi-Zone Speaker Selector AC Adapter: AD-246 Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics Q-SS9012PS Multi-Zone Speaker Selector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics Q-SS9012PS Specs | Power Source | 24 VDC from AC adaptor AD-246 or equivalent | | Power Consumption | 400 mA or less | | Power Handling | 250 W or less (70 V / 100 V line) per channel (IN1, IN2) | | Control Input | 12 channels, dry (no voltage) contact closures, open voltage: 3.3 VDC, short-circuit current: under 1 mA, removable terminal block (24 pins) | | Terminals | Speaker Terminal: Removable terminal block (2 pins, IN1, IN2, Zone1-12)Control Terminal: Removable terminal block (24 pins) | | Operating Temperature | 14 to 104°F (-10 to 40°C) | | Finish | Case: Surface-treated steel plate, black | | Dimensions (WxHxD) | 16.54 x 1.73 x 4.84" (42.01 x 4.39 x 12.29 cm) | | Weight | 3.53 lb (1.60 kg) | | | | Package Weight | 5.15 lb | | Box Dimensions (LxWxH) | 20.5 x 9.25 x 3.38" |
