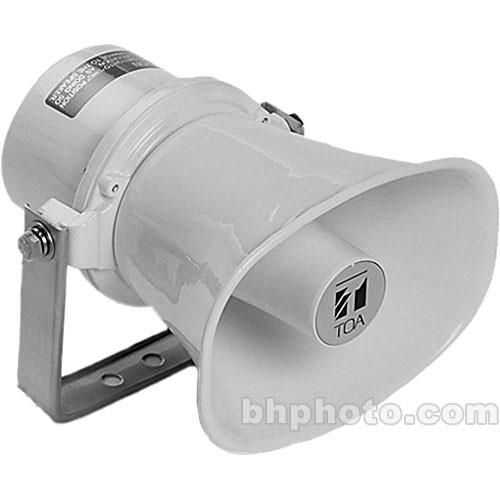

Product description TOA Electronic's SC-610T 10 W Paging Horn Speaker is a double re-entrant horn with a compression driver paging speaker designed for indoor and outdoor sound system tone signalling and intelligible voice paging. This model includes a built-in 25V/70.7V transformer with screwdriver-adjustable power taps. Easy to install, SC Series speakers can be mounted on poles, walls, or ceilings and double as microphones in intercom talk-back applications. This weather-resistant, durable speaker is dust and moisture-resistant and will function in a wide range of temperatures. Built of aluminum and ABS resin with stainless-steel mounting parts, this paging speaker is useful in a wide variety of applications such as boats, churchs, schools, swimming pools, security zones, and more. This speaker comes with a 5-year warranty. - Stainless Steel Mounting Bracket
- Install this speaker quickly and easily in pole, wall, or ceiling-mount applications with the stainless-steel mounting bracket.
- Weather-Resistant
- With dust and moisture-resistance, a wide temperature operational range, and stainless-steel mounting hardare, this IECIP-65 standards-compliant speaker is suitable for both indoor and outdoor use.
- Transformer Included
- A built-in 25V/70.7 adjustable transformer is included in this model for adjusting the voltage to your needs.
- Useable as Microphone
- Designed for intercom talk-back applications, all SC Series speakers can also be used as a microphone.
- Phenolic Loudspeaker Diaphragm
- Heat and moisture resistant, this loudspeaker is designed for extended operational reliability.
In the Box Toa Electronics SC-610T 10 W Paging Horn Speaker with Transformer Stainless-Steel Mounting Hardware 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics SC-610T 10 W Paging Horn Speaker with Transformer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics SC-610T Specs | Active or Passive | Passive | | Frequency Response | 315Hz - 12.5kHz | | Power Capacity | 10W | | Maximum Sound Pressure Level (SPL) | 110 dB, 1W/1m | | Nominal Sensitivity | 110 dB | | Impedance | 70.7V: 10W (500 ohms)
25V: 10W (63 ohms) | | Crossover | Not Specified by Manufacturer | | Shielded | No | | Low Frequency Driver | Compression Driver | | High Frequency Driver | Compression Driver | | Enclosure Material | Aluminum and ABS Resin | | Input Connections | Not Specified by Manufacturer | | Environmental | Sealed Enclosure, Moisture-resistant, Dust-Resistant, Stainless Steel Mounting Hardware | | Dimensions | 6.8 x 6.3 x 7.4" (172 x 161 x 188mm) | | Weight | 2.4 lbs (1.1 kg) | | Specialties | Moisture-Resistant, Useable as Microphone | | | | Package Weight | 3.15 lb | | Box Dimensions (LxWxH) | 7.64 x 5.87 x 5.79" |
