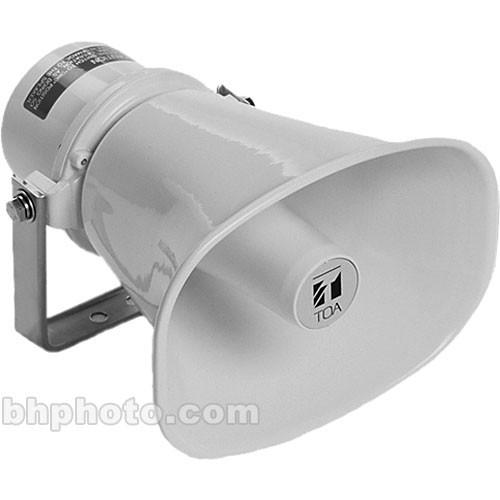

User Manual for Toa Electronics SC-615T 15 W Paging Horn Speaker with Transformer Click to enlarge the picture
Contents of the user manual for the Toa Electronics SC-615T 15 W Paging
- Product category: Installed Speakers Toa Electronics
- Brand: Toa Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Toa Electronics Installed Speakers
|
User manual for the Toa Electronics SC-615T 15 W Paging contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Toa Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Toa Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Toa Electronics product will considerably shorten its lifespan!
|
Product description TOA Electronic's SC-615T 15 W Paging Horn Speaker with Transformer is a double re-entrant horn with a compression driver paging speaker designed for indoor and outdoor sound system tone signalling and intelligible voice paging. This model includes a built-in 25V/70.7V transformer with screwdriver-adjustable power taps. Easy to install, SC Series speakers can be mounted on poles, walls, or ceilings and double as microphones in intercom talk-back applications. This weather-resistant, durable speaker is dust and moisture-resistant and will function in a wide range of temperatures. Built of aluminum and ABS resin with stainless-steel mounting parts, this paging speaker is useful in a wide variety of applications such as boats, churchs, schools, swimming pools, security zones, and more. This speaker comes with a 5-year warranty. - Stainless Steel Mounting Bracket
- Install this speaker quickly and easily in pole, wall, or ceiling-mount applications with the stainless-steel mounting bracket.
- Weather-Resistant
- With dust and moisture-resistance, a wide temperature operational range, and stainless-steel mounting hardare, this IECIP-65 standards-compliant speaker is suitable for both indoor and outdoor use.
- Transformer Included
- A built-in 25V/70.7 adjustable transformer is included in the model for changing the voltage to your specifications.
- Useable as Microphone
- Designed for intercom talk-back applications, all SC Series speakers can be used as a microphone.
- Phenolic Loudspeaker Diaphragm
- Heat and moisture resistant, the loudspeaker is designed for extended operational reliability.
In the Box Toa Electronics SC-615T 15 W Paging Horn Speaker with Transformer Stainless-Steel Mounting Hardware 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics SC-615T 15 W Paging Horn Speaker with Transformer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics SC-615T Specs | Active or Passive | Passive | | Frequency Response | 280Hz - 12.5kHz | | Power Capacity | 15W | | Maximum Sound Pressure Level (SPL) | 112 dB, 1W/1m | | Nominal Sensitivity | 112 dB | | Impedance | 70.7V: 15W (330 ohms)
25V: 15W (32 ohms) | | Crossover | Not Specified by Manufacturer | | Shielded | No | | Low Frequency Driver | Compression Driver | | High Frequency Driver | Compression Driver | | Enclosure Material | Aluminum and ABS Resin | | Input Connections | Not Specified by Manufacturer | | Environmental | Sealed Enclosure, Moisture-Resistant, Dust-Resistant, Stainless-Steel Mounting Hardware | | Dimensions | 8.7 x 7.0 x 9.2" (222 x 179 x 234mm) | | Weight | 2.4 lbs (1.1 kg) | | Specialties | Moisture-Resistant, Useable as Microphone | | | | Package Weight | 3.7 lb | | Box Dimensions (LxWxH) | 10.2 x 9.6 x 7.5" |
