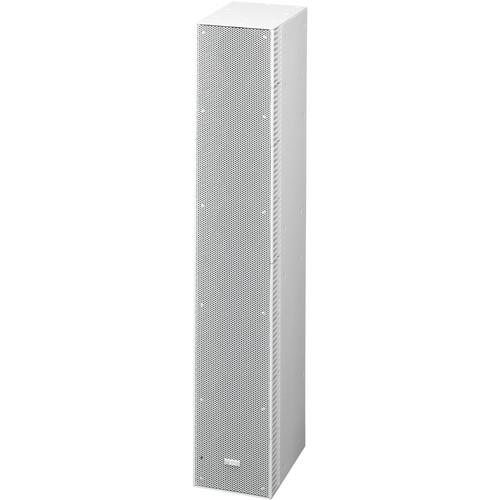

Product description The Active Line Array Speaker from Toa Electronics is designed with a CobraNet protocol digital audio input, digital signal processor, Class-D digital power amplifier, and speakers configured in a line array. Precise control of the speaker's vertical directivity and acoustic beam width allows you to create fully optimized sound spaces. The function settings can be controlled from a remote PC using the supplied setting software. Using a PC computer as a remote controller via a 100BaseT connection, it is recommended to run the required .NET framework 4 client profile software component.
The SR-D8-M can be used with the SR-D8-S secondary speaker (sold separately). The SR-D8-M transmits the audio signal to the secondary speaker via its dedicated local link. The local SR-D8-M permits a line array of up to four connected speakers to be configured. Up to four stacks can be controlled in a complete system, making it possible to build speaker systems consisting of up to 16 speakers. In the Box Toa Electronics SR-D8-M Main Active Line Array Speaker 6.56' Power Supply Cord 2 x Removable 3-Pin Terminal Plug Removable 2-Pin Terminal Plug CD-ROM with Setup Software Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics SR-D8-M Main Active Line Array Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics SR-D8-M CU Specs | Frequency Response | 130 Hz to 20 kHz | | Signal to Noise Ratio | 100 dB or more (A-weighted), DSP+ digital power amplifier | | Amplification | Class-D, 8 channels | | Speaker Component | Low Frequency: 8 x 3.94" / 10 cm
High Frequency: 24 x 1.98" / 2.5 cm balanced dome- type | | Output | 30 W, 1 channel (1% THD+N) | | Maximum SPL | 93 dB SPL (A-weighted, pink noise, 98.4' / 30.0 m) | | Angle | Vertical Variable: -45 to 45° (adjustable by using the supplied SR-D8 setting software)
Horizontal Directional: 90° | | Line Input | 2 channels, 4 dB, 10 kOhms, electronically balanced, 3-pin removable terminal block | | Sampling Frequency | 48 kHz | | Audio | CobraNet: 100Base-TX, primary/secondary 2 system
Connection Cable: Shielded twisted pair (STP) Cat5 or higher LAN cable to be connected via the specified switching hub
Maximum Extend Distance: 328.1' / 100.0 m (connected via a switching hub) This network should be completely independent of other LAN. | | Control | LAN: TCP/IP, 100Base-TX 1 system, RJ45 receptacle (etherCON: Neutrik)
Connection Cable: Shielded twisted pair (STP) Cat5 or higher LAN cable to be connected via the specified switching hub
Maximum extend Distance: 328.1' / 100.0 m (connected via a switching hub) | | Communication | Between Main and Sub Units: Local link: TOA original digital audio transmission, RJ45 receptacle (etherCON: Neutrik)
Connection Cable: Shielded twisted pair (STP) Cat5 or higher LAN cable | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0-90% RH (no condensation) | | Finish | Enclosure: MDF, white, paint
Front Grille: Punched steel plate, white, acrylic paint | | Power Source | 120 VAC, 60 Hz | | Power Consumption | 320 W (rated output)
72 W (based on UL/CSA standards) | | Dimensions | 6.3 x 35.2 x 10.0" / 16.0 x 89.5 x 25.5 cm | | Weight | 46.3 lb / 21.0 kg |
