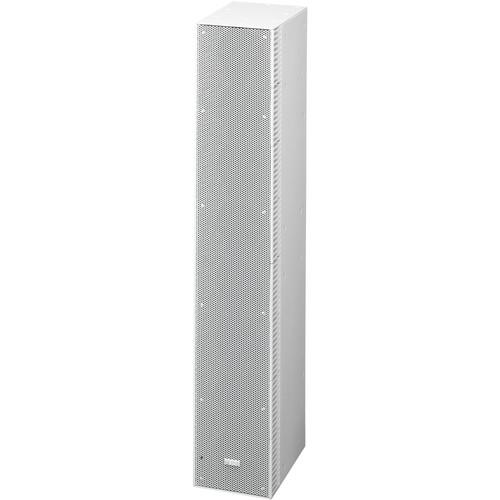

User Manual for Toa Electronics SR-D8-S Secondary Active Line Array Speaker Click to enlarge the picture
Contents of the user manual for the Toa Electronics SR-D8-S Secondary Active Line
- Product category: PA Speakers Toa Electronics
- Brand: Toa Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Toa Electronics PA Speakers
|
User manual for the Toa Electronics SR-D8-S Secondary Active Line contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Toa Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Toa Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Toa Electronics product will considerably shorten its lifespan!
|
Product description The 315W Secondary Active Line Array Speaker from Toa Electronics is an active line array speaker designed to be used with the SR-D8-M main unit speaker (sold separately). The SR-D8-M transmits the audio signal to this secondary speaker via its dedicated local link. The local link allows up to three SR-8-S speaker units to be connected in series to one SR-D8-M permitting a line array of up to four connected speakers to be configured. Up to four stacks can be controlled in a complete system, making it possible to build speaker systems consisting of up to 16 speakers.
This speaker features a CobraNet protocol digital audio input, digital signal processor, digital power amplifier, and speakers configured in a line array. Precise control of the speaker's vertical directivity and acoustic beam width allows you to create fully optimized sound spaces. The function settings can be controlled from a remote PC using the supplied setting software. Using a PC computer as a remote controller via a 100BaseT connection, it is recommended to run the required .NET framework 4 client profile software component. In the Box Toa Electronics SR-D8-S Secondary Active Line Array Speaker 6.56' Power Supply Cord 2 x Removable 3-Pin Terminal Plug Removable 2-Pin Terminal Plug Setup Software Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics SR-D8-S Secondary Active Line Array Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics SR-D8-S CU Specs | Frequency Response | 130 Hz to 20 kHz | | Signal to Noise Ratio | 100 dB or more (A-weighted), DSP+ digital power amplifier | | Amplification | Class-D, 8 channels | | Speaker Component | Low Frequency: 8 x 3.9" / 10 cm
High Frequency: 24 x 1" / 2.5 cm balanced dome-type | | Output | 30 W, 1 channel (1% THD+N) | | Maximum SPL | 93 dB SPL (A-weighted, pink noise, 98.4' / 30.0 m) | | Angle | Vertical Variable: -45 to 45° (adjustable by using the supplied SR-D8 setting software)
Horizontal Directional: 90° | | Sampling Frequency | 48 kHz | | Control | LAN: TCP/IP, 100Base-TX 1 system, RJ45 receptacle (etherCON: Neutrik)
Connection Cable: Shielded twisted pair (STP) CAT5 or higher LAN cable to be connected via the specified switching hub
Maximum Extend Distance: 328.1 / 100 m (connected via a switching hub) | | Communication | Between Main and Sub Units: Local link: TOA original digital audio transmission, RJ45 receptacle (etherCON: Neutrik)
Connection cable: Shielded twisted pair (STP) Cat5 or higher LAN cable | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0-90% RH (no condensation) | | Finish | Enclosure: MDF, white, paint
Front Grille: Punched steel plate, white, acrylic paint | | Power Source | 120 VAC, 60 Hz | | Power Consumption | 320 W (rated output)
72 W (based on UL/CSA standards) | | Dimensions | 6.3 x 35.2 x 10.0" / 16.0 x 89.5 x 25.5 cm | | Weight | 46.3 lb / 21.0 kg |
