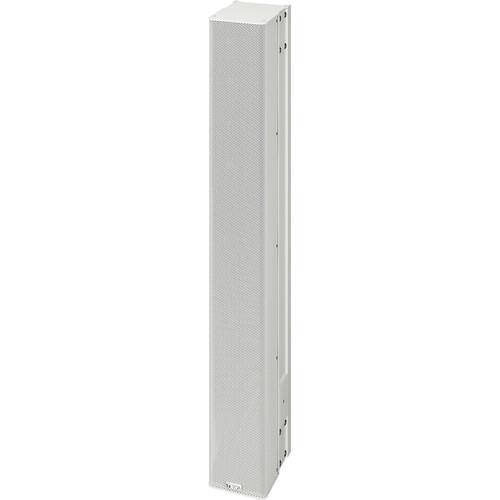

User Manual for Toa Electronics SR-MF1 Line Array Speaker System Click to enlarge the picture
Contents of the user manual for the Toa Electronics SR-MF1 Line Array Speaker
- Product category: PA Speakers Toa Electronics
- Brand: Toa Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Toa Electronics PA Speakers
|
User manual for the Toa Electronics SR-MF1 Line Array Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Toa Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Toa Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Toa Electronics product will considerably shorten its lifespan!
|
Product description The white SR-MF1 Line Array Speaker System from Toa Electronics provides uniform sound output with little attenuation over distance and permits operators to combine speakers freely to suit the conditions. It features four 2.8" cone speakers and eight 2" cone speakers. Together, these features are designed to ensure the clear audibility required by houses of worship, auditoriums, airports and other venues with complex acoustic conditions. - Clear and Uniform Sound
- This slim system utilizes the line array speaker's characteristic uniform sound with little attenuation over distance
- Adjustable Tilt and Dispersion Angles
- Sound coverage is provided by a built-in steering mechanism that permits manual adjustment of the tilt and dispersion angles. 10 patterns are available, with dispersion angle adjustable from 10 to 30 degrees in 5-degree increments with tilt angle set at 0 or -3 degrees
- Low Profile
- The system's slim-line design featuring 4.5"-wide (114mm) enclosures enables it to blend in with most surroundings
In the Box Toa Electronics SR-MF1 Line Array Speaker System (White) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics SR-MF1 Line Array Speaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics SR-MF1WQAM Specs | Enclosure | Sealed type | | Power Handling | Continuous: 240 W | | Rated Impedance | 12 ohms | | Sensitivity | 89 dB (1 W, 1 m equivalent, measured at 8 m) | | Frequency Response | 130 Hz to 18 kHz (when using an optional processor) | | Speakers | 4x 2.8" (7 cm) cone type
8x 2" (5 cm) cone time | | Angle | Directivity Angle:
Horizontal: 100°
Vertical: Tilt 0 or -3°
Dispersion: 10, 15, 20, 25, 30° | | Input | Removable screw terminal | | Dimensions (WxHxD) | 4.5 x 34.3 x 6.2" (114 x 872 x 158 mm) | | Weight | 18.5 lb (8.4 kg) |
